RCF L12P540 8 Ohm
We are no longer offering this product.
You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.
- more of RCF

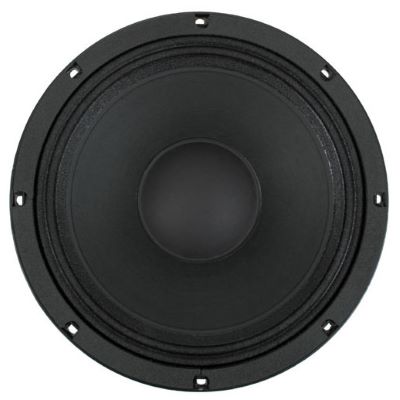

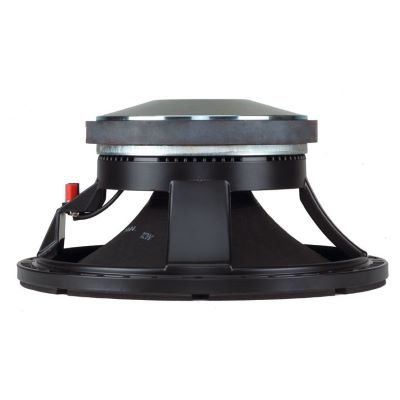

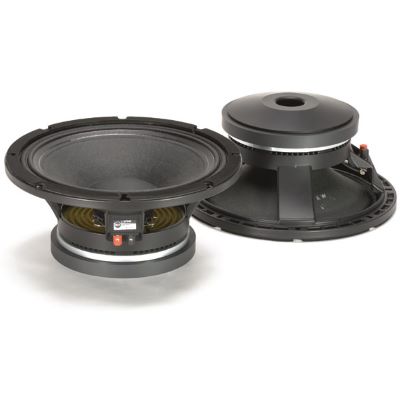

RCF L12P540 8 Ohm Product Details
High power 12” woofer. Very good power handling, excellent linearity and very low distortion. Very efficient heat dissipation is ensured by a radiator that is part of the basket design. The air is forced in the radiator thanks to a sealed spider design.
Applications
The excellent linear response, well controlled down to 50 Hertz, makes the L12P540 especially suitable for band-pass enclosures and small size bass reflex systems. It is a very good solution for two or three way system when a very high BL and good punch is required.
Features:
- Nominal Diameter: 300/12 mm/inch
- Rated Impedance: 8 Ohm
- Program Power: 800 Watts
- Power handling capacity: 400 Watts
- Sensitivity 1W, 1m: 97 dB
- Frequency Range: 50-2000 Hz
- Effective Piston Diameter: 260/10.2 mm/inch
- Maximum Excursion Before Damage: 34/1.3 mm/inch
- Minimum Impedance: 7.4 Ohm
- Voice Coil Diameter: 76/3 mm/inch
- Voice Coil Material: Copper
- Voice Coil Winding Depth: 18/0.7 mm/inch
- Number of layers: 2
- Kind of layer: Outside
- Thickness Top Plate Depth: 10/0.4 mm/inch
- Cone Material: No pressed pulp
- Cone Design: Curved
- Surround Material: Polycotton
- Surround Design: M - roll
- Resonance frequency: Fs 59 Hz
- DC resistance: Re 5.6 Ohm
- Mechanical factor: Qms 11
- Electrical factor: Qes 0.36
- Total factor: Qts 0.35
- BL factor: BL 19.5 T - m
- Effective Moving Mass: Mms 66 gr
- Equivalent Cas air load: Vas 45 liters
- Effective piston area: Sd 0.053 m2
- Max. linear excursion: Xmax 6.5 mm
- Voice - coil inductance @ 1KHz: Le1k 1.8 mH
- Half-space efficiency: Eff 2.47 %
- Overall Diameter: 320/12.6 mm/inch
- Bolt Circle Diameter: 300 mm
- Bolt Hole Diameter: 7/0.3 mm/inch
- Front Mount Baffle Cut-out: 286/11.3 mm/inch
- Rear Mount Baffle Cut-out: 284/11.2 mm/inch
- Depth: 155/6.1 mm/inch
- Volume occupied by the driver: 2.3 liters/ft3
- Net Weight: 8.5/18.7 Kg/lbs
- Shipping Weight: 9/19.8 Kg/lbs
