RCF L15 554K 8 Ohm

We are no longer offering this product.

You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.

Item details

Brand:
Model:
147148
Shipped via:
Package
Unit:
piece

Secure Shopping:


  • Trusted Shops certified
  • Fast delivery times
  • 1 month right of withdrawal
  • Buyer protection
  • Secure SSL data encryption

Share with friends:

Description

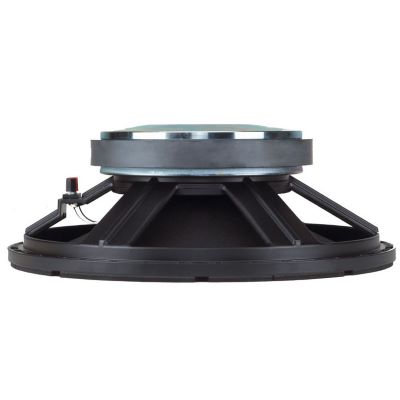

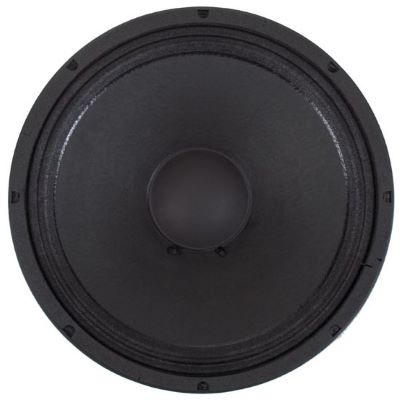

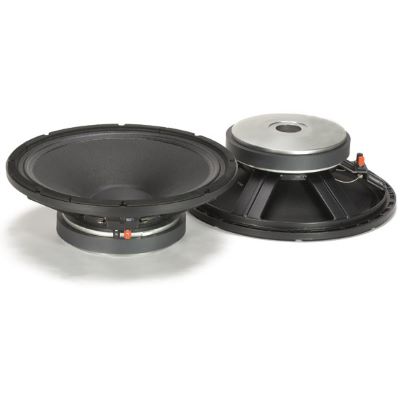

RCF L15 554K 8 Ohm Product Details

Very high efficiency and good linearity are distinctive features of this mid-bass woofer.

Kapton former voice coil, polycotton suspensions and treated cone guarantee the very high power handling of this transducer.

Applications

The L15/554 is designed to be mounted in compact size bass reflex enclosures. The good combination of voice coil length, very low mass weight and suspensions control makes the L15/554 a very good choice for high power 2 way systems. Thanks to a very high BL/Re ratio, small mechanical depth and a strong cone, the L15/554 is a good solution for horn loaded or hybrid horn loaded systems.

Features:

  • Nominal Diameter: 380/15 mm/inch
  • Rated Impedance: 8 Ohm
  • Program Power: 1200 Watts
  • Power handling capacity: 600 Watts
  • Sensitivity 1W, 1m: 99 dB
  • Frequency Range: 40-2000 Hz
  • Effective Piston Diameter: 325/12.8 mm/inch
  • Maximum Excursion Before Damage: 44/1.73 mm/inch
  • Minimum Impedance: 7.9 Ohm
  • Voice Coil Diameter: 100/4 mm/inch
  • Voice Coil Material: Copper
  • Voice Coil Winding Depth: 16/0.6 mm/inch
  • Number of layers: 2
  • Kind of layer: Outside
  • Thickness Top Plate Depth: 16/0.6 mm/inch
  • Cone Material: No pressed pulp
  • Cone Design: Curved
  • Surround Material: Polycotton
  • Surround Design: M - roll
  • Resonance frequency: Fs 35 Hz
  • DC resistance: Re 6.6 Ohm
  • Mechanical factor: Qms 8.6
  • Electrical factor: Qes 0.25
  • Total factor: Qts 0.24
  • BL factor: BL 23 T - m
  • Effective Moving Mass: Mms 91 gr
  • Equivalent Cas air load: Vas 227 liters
  • Effective piston area: Sd 0.083 m2
  • Max. linear excursion: Xmax 5.8 mm
  • Voice - coil inductance @ 1KHz: Le1k 1.7 mH
  • Half-space efficiency: Eff 3.75 %
  • Overall Diameter: 387/15.2 mm/inch
  • Bolt Circle Diameter: 371 mm
  • Bolt Hole Diameter: 8/0.3 mm/inch
  • Front Mount Baffle Cut-out: 358/14.1 mm/inch
  • Rear Mount Baffle Cut-out: 362/14.2 mm/inch
  • Depth: 138/5.4 mm/inch
  • Volume occupied by the driver: 3.8 liters/ft3
  • Net Weight: 11.3/24.9 Kg/lbs
  • Shipping Weight: 11.8/26.0 Kg/lbs
