RME Fireface 802 FS AE

For the 20th anniversary of the legendary Fireface 800, RME presents an exclusive special edition: the Fireface 802 FS AE in an elegant and dark design.

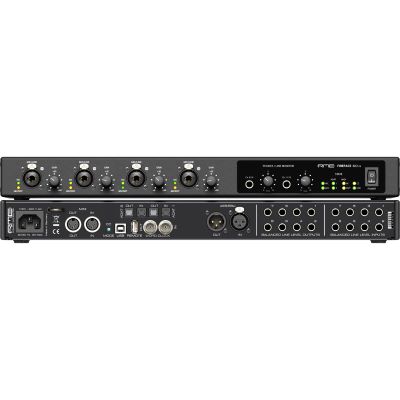

The RME Fireface 802 FS AE is a highly integrated pro audio solution for live and studio use in a 19" chassis. An interface for users who don't want to compromise on sound, stability and extremely low latency, and who long for an unrivaled professional feature set. Once again a milestone among RME's interfaces, with the best of the best and a little bit more. 60 audio channels, high-end microphone preamps, reference class converters, a complete effects section and operation at up to 192 kHz are the basis for many more features.

Features:

• Analog section
• AD, Line In 1-8, rear panel
• Input: 6.3 mm stereo jack, servo-balanced
• Signal-to-noise ratio (SNR) @:LoGain: 116 dB (AES17), 118 dBA
• Signal-to-noise ratio (SNR) @:+4 dBu: 115 dB (AES17), 117 dBA
• Frequency response @ 44.1 kHz, -0.1 dB: 8.9 Hz - 20.4 kHz
• Frequency response @ 96 kHz, -0.5 dB: 4.3 Hz - 45.2 kHz
• Frequency response @ 192 kHz, -1 dB: 3 Hz - 89 kHz
• Filter: Short Delay Sharp, 5 / 5 / 6 samples latency
• THD @ -1 dBFS: < -120 dB, < 0.0001 %
• THD+N @ -1 dBFS: < -110 dB, < 0.00032 %
• Crosstalk attenuation: > 110 dB
• Maximum input level: +19 dBu
• Input: 6.3 mm stereo jack, electronically balanced
• Input impedance @ 1 kHz: 10 kOhm unbalanced, 10.6 kOhm balanced
• Input sensitivity switchable Lo Gain and +4 dBu
• Input level for 0 dBFS @ +19 dBu: +19 dBu
• Input level for 0 dBFS @ +4 dBu: +13 dBu
• Variable gain: 0 to +12 dB
• Minimum input level for 0 dBFS: +1 dBu, -1.2 dBV

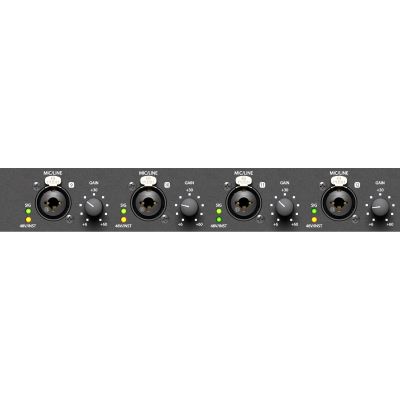

• Microphone In 9-12, front panel
• Input: XLR, electronically balanced
• Input impedance: 3.4 kOhm
• Signal-to-noise ratio (SNR) @ gain + 10 dB: 113 dB RMS unweighted, 116 dBA
• Gain control range: 54 dB  Maximum input level, gain +6 dB: +10 dBu
• Maximum input level, gain +60 dB: -44 dBu
• CLIP LED: 0 dBFS  SIG LED: -42 dBFS
• Instrument In 9-12, front panel
• Input: 6.3 mm mono jack unbalanced
• Input impedance: 1 MOhm
• Signal-to-noise ratio (SNR): 113 dB RMS unweighted, 116 dBA
• Maximum input level, gain +6 dB: +21 dBu
• Maximum input level, gain +60 dB: -33 dBu
• Frequency response @ 44.1 kHz, -0.5 dB: 2.5 Hz - 20.5 kHz
• Frequency response @ 96 kHz, -0.5 dB: 2.5 Hz - 25 kHz
• Frequency response @ 192 kHz, -1 dB: 1.7 Hz - 36 kHz

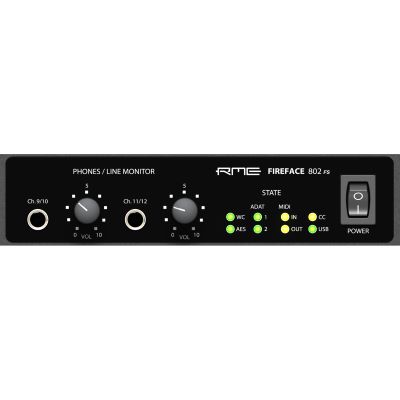

• DA - Stereo Monitor Output Phones (9-12)
• Output: 2 x 6.3 mm stereo jack, unbalanced
• Maximum output level at 0 dBFS: +17 dBu
• Max output power per channel, 32 Ohm load, 0.1% THD: 210 mW (2.5 Vrms, +10 dBu)
• Signal-to-noise ratio (SNR): 116 dB (AES17), 118 dBA
• Output impedance: 2 Ohm

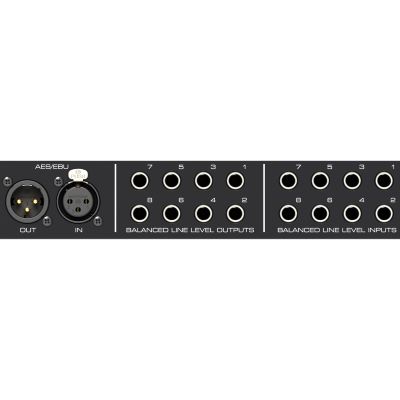

• DA, Line Out 1-8, rear panel
• Output: 6.3 mm stereo jack, servo-balanced
• Signal-to-noise ratio (SNR) @ HiGain: 116.5 dB (AES17), 118.5 dBA
• Signal-to-noise ratio (SNR) @ +4 dBu: 116 dB (AES17), 118 dBA
• Signal-to-noise ratio (SNR) @ -10 dBV: 107 dB (AES17), 109 dBA
• Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz - 20.2 kHz
• Frequency response @ 96 kHz, -0.5 dB: 0 Hz - 44.6 kHz
• Frequency response @ 192 kHz, -1 dB: 0 Hz - 77.5 kHz
• Filter: Short Delay Sharp, 6 / 6 / 6 samples latency
• THD+N: < -110 dB, < 0.00032 %  Crosstalk attenuation: > 110 dB
• Output level switchable Hi Gain, +4 dBu, -10 dBV
• Output level at 0 dBFS @ +19 dBu: +19 dBu
• Output level at 0 dBFS @ +13 dBu: +13 dBu
• Output level at 0 dBFS @ +4 dBu: +2 dBV (+4.2 dBu)
• Output impedance: 75 Ohm

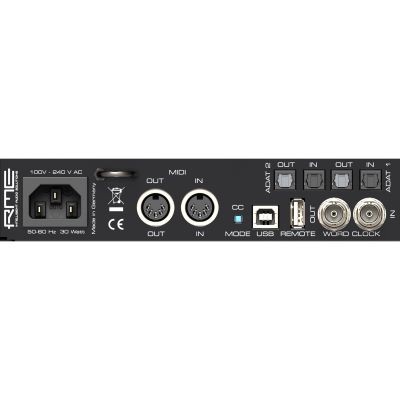

• MIDI
• 1 x MIDI I/O via 5-pin DIN sockets
• Galvanic isolation via optocoupler at the input
• Hi-speed mode with jitter and response time typically less than 1 ms
• Separate 128 byte FIFOs for input and output
• Digital part
• Clocks: Internal, ADAT In, AES In, SPDIF In, Wordclock In
• Jitter suppression of external clocks: > 50 dB (> 1 Hz)
• Virtually no effective jitter influence of the clock on AD and DA conversion
• PLL works without dropouts even with more than 100 ns jitter
• Digital bitclock PLL for interference-free varipitch in ADAT mode
• Supported sample rates: 28 kHz up to 200 kHz
• Digital inputs
• AES/EBU
• 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
• Highly sensitive input stage (< 0.3 Vpp)
• SPDIF compatible (IEC 60958)
• Accepts consumer and professional format
• Lock range: 27 kHz - 200 kHz
• Jitter suppression: > 50 dB (> 1 Hz)
• ADAT Optical
• 2 x TOSLINK, format according to Alesis specification
• Standard: 2 x 8 channels 24 bit, maximum 48 kHz
• Double Speed (S/MUX): 2 x 4 channels 24 bit 96 kHz
• Quad Speed (S/MUX4): 2 x 2 channels 24 bit 192 kHz
• Quad Speed Windows USB: 1 x 2 channels 24 bit 192 kHz
• Bitclock PLL for perfect synchronization even in varispeed mode
• Lock range: 31.5 kHz - 50 kHz
• Jitter suppression: > 50 dB (> 1 Hz)
• SPDIF optical (ADAT 1/2)
• 1 x optical, according to IEC 60958
• Accepts consumer and professional format
• Lock range: 27 kHz - 200 kHz
• Jitter suppression: > 50 dB (> 1 Hz)
• Word Clock
• BNC
• Internal termination 75 Ohm switchable
• Automatic double/quad speed detection and conversion to single speed
• SteadyClock guarantees low-jitter synchronization even in varispeed operation
• Insensitive to DC offsets in the network
• Signal adaptation circuit: signal refresh through centering and hysteresis
• Overvoltage protection
• Level range: 1.0 Vpp - 5.6 Vpp
• Lock range: 27 kHz - 200 kHz
• Jitter suppression: > 50 dB (> 1 Hz)
• Digital outputs
• AES/EBU
• 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
• Output voltage Professional 4.2 Vpp, Consumer 2.4 Vpp
• Professional format according to AES3-1992 Amendment 4  Consumer format (SPDIF) according to IEC 60958
• Single wire mode, sample rate 28 kHz to 200 kHz
• ADAT
• 2 x TOSLINK  Standard: 2 × 8 channels 24 bit, maximum 48 kHz
• Double Speed (S/MUX): 2 × 4 channels 24 bit 96 kHz
• Quad Speed (S/MUX4): 2 × 2 channels 24 bit 192 kHz
• Quad Speed Windows USB: 1 × 2 channels 24 bit 192 kHz
• SPDIF optical (ADAT 1/2)
• Consumer format (SPDIF) according to IEC 60958
• Sample rate 28 kHz to 200 kHz
• Word Clock
• BNC
• Maximum level: 5 Vpp
• Level for termination with 75 Ohm: 4.0 Vpp
• Internal resistance: 10 Ohm
• Frequency range: 27 kHz - 200 kHz
• General information
• Power supply: Internal switching power supply, 100 - 240 V AC, 30 watts
• Minimum power requirement: 15 watts  Typical power requirement: 22 watts
• Dimensions with rack ears (WxHxD): 483 × 44 × 242 mm
• Dimensions without rack ears/bracket (WxHxD): 436 × 44 × 236 mm
• Weight: 2.8 kg  Temperature range: +5° up to +50° Celsius
• Relative humidity: < 75 %, non-condensing

Specs:

• Color: Black
• Rack Mountable: yes
• Line Inputs: 8
• Line Outputs: 8
• Mic Inputs: 4
• Phono Inputs: 2
• Instrument Inputs: 4
• digital Output: ADAT / S/PDIF
• digital Input: AES/EBU / S/PDIF
• Headphone Out: yes
• MIDI Inputs: 1 Port
• MIDI Outputs: 1 Port
• Host Port: USB
• Number of headphone outputs: 2
• Type: Audio Interface
• Theme: Recording and Studio
