Roland DS 8 Product Details

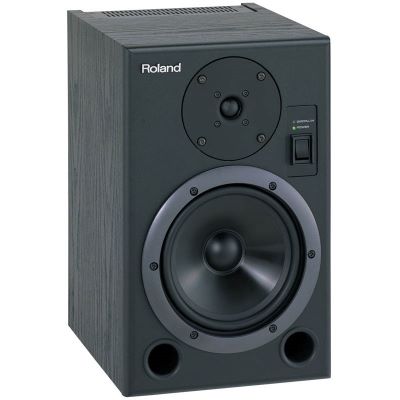

Roland DS-8 Bi-Amp Monitor
Plug Into Pure Audio Gold
Introducing a new benchmark digital monitor for the discerning audio
professional. Roland's flagship DS-8 active reference monitor delivers
superb 24-bit performance with precise imaging, ultra-low coloration,
and smooth, balanced energy output. Premium-grade discrete amp
circuits and film capacitors provide the purest signal path.
The DS-8 is ideally suited for professional and project studios,
fixed and mobile broadcast facilities, or any other recording/mixing
environment where superb sound quality and accuracy are essential.
-Superb sound quality with precise imaging and balanced energy output.
-24-bit digital input with sample-rate support for up to 192kHz.
-Analog and digital inputs, including XLR, coaxial, and optical;
AES/EBU and S/PDIF compatible.
-Stylish, compact design; fits a variety of mixing environments.
-Improved cabinet with bi-amp circuit; eliminates phase anomalies.
-Newly designed heat sink and front-panel power switch; fully
compliant with IEC60065 safety standards.
System 2-Way Bi-Amplified Monitor
Enclosure Bass-reflex type
LF Driver 200 mm (8") Polypropylene cone type magnetically shielded
HF Driver 25 mm (1") Soft dome type magnetically shielded
Frequency Response 58 Hz to 24 kHz (+/-3 dB)
Crossover Frequency 2.3 kHz (active fourth order)
LF Amplifier Power 80 W
HF Amplifier Power 40 W
Analog In
Input Sensitivity 0 dBu (0.775 Vrms)
Input Impedance 20 k ohms (Balanced/Unbalanced)
Digital In
Format Conformity with AES/EBU and IEC60958
Sample Rate 32 kHz to 192 kHz (automatically) (de-emphasis: OFF)
Word Length 24-bit
D/A Converter 24-bit
Controls LEVEL
Knob LF TRIM Knob
HF TRIM Knob
INPUT SELECT SW. (Analog In/Digital In)
ASSIGN SW. (Right/L+R/Left)
DIGITAL INPUT SELECT SW (AES/EBU / Optical / Coaxial)
POWER SW
Indicators POWER
DIGITAL IN
Connectors ANALOG INPUT (XLR / 1/4 inch TRS phone type)
DIGITAL INPUT (XLR)
DIGITAL INPUT (Optical)
DIGITAL INPUT (Coaxial)
DIGITAL THRU OUT (Coaxial)
Power Supply AC 117 V, AC 220V, AC 230 V, AC 240 V (50/60Hz)
Power Consumption 125 W
Accessories Owner's Manual, Power Cord
Size and Weight
Width 254 mm 10 inches
Depth 367 mm 14-1/2 inches
Height 406 mm 16 inches
Weight 17.2 kg 37 lbs. 15 oz.
