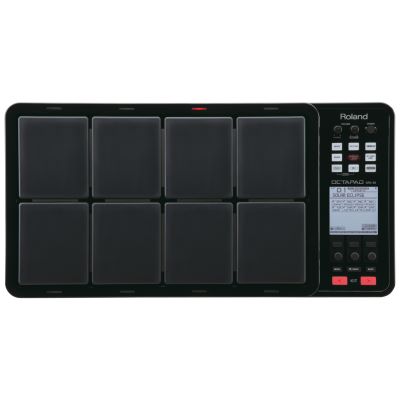

Roland Octapad SPD-30-BK

Roland's original Octapad changed the electronic percussion fundamentally at that time. In the format of a briefcase, the Octapad offered drummers and percussionists the possibilities of a complete electronic drum kit in a compact, stand-alone device. Today, decades later, an exciting new chapter in the history of the Octapad begins. The SPD-30 combines first-class sounds with the latest triggering technology in a rugged, road-ready enclosure that will delight even the most demanding professionals.

Features:

• New percussion sounds from all over the world, plus 30 multi-effect types
• Latest pad sensor technology from V-Drums for sensitive triggering without crosstalk between pads
• Four dual trigger inputs plus hi-hat controller for additional pads as mini drumkit, or for trigger signals from acoustic drums
• Loop function with up to three overdubs
• USB connection for MIDI and storage media
• Large, illuminated LCD display and LED pad display for easy handling even on dark stages
• Durable construction

Technical data:

• Instruments: 670
• Kits: 50
• Kit Chains: 8 chains (20 steps per chain)

instrument parameters

• tuning
• mouflon
• soft attack
• Tone Color
• pitch sweep
• volume
• pan
• reverse

• Effect Types: Ambience (7 Types), Equalizer, Limiter, Multi Effect (30 Types)

looper

• Phrases: 50
• Parts: 3
• Speed: 40 to 260
• Resolution: 480 ticks per quarter note
• Recording Method: Real-time
• Maximum Note Storage: approx. 10,000 Notes

• Display: 160 x 160 dots Graphic Type LCD (Backlit LCD), Pad Status Illumination x 8 (LED)

ports

• Headphones (stereo jack)
• OUTPUT Jacks (L (MONO), R) (jack)
• MIX IN Jack (stereo jack)
• EXTERNAL TRIGGER INPUT x 4
• HH CTRL Jack, footswitch (handle)
• MIDI Connectors (IN, OUT)
• USB MEMORY Connector (for USB Memory)
• USB MIDI Connector (for USB MIDI)

• Output impedance: 1.0 k ohms
• Power supply: AC Adaptor (DC 9 V)
• Current consumption: 600 mA
• Accessories: Owner's Manual, AC Adaptor (PSB-1U), Screws (M5 x 12 mm) x 4

Optional accessories

• Pads (PD series PDX series, BT-1)
• Cymbals (CY series)
• Kick Triggers (KD series)
• Hi-Hats (VH-11)
• Hi-Hat Control Pedal (FD series)
• Pad Stand (PDS-10)
• All-Purpose Clamp (APC-33)
• Acoustic Drum Trigger (RT-30H, RT-30HR, RT-30K)
• Pedal Switch (DP-2)
• Foot Switch (FS-5U, FS-6)
• Personal Drum Monitor: PM-10, PM-30
• V-Drums Accessory Package: DAP-3
• V-Drums Mat: TDM-10

• Dimensions (WxDxHxD): 541mm x 272mm x 88mm
• Weight: 3,8 Kg


Specs:

• Color: Black
• USB Port: yes
• Headphone Out: yes
• MIDI Inputs: 1 Port
• MIDI Outputs: 1 Port
• Line Outputs: 2
• Type: electronic Drums
• Theme: Drums and Percussion
