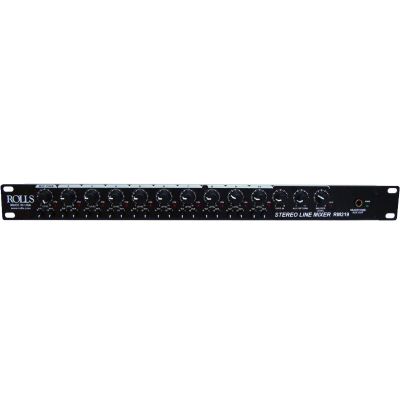

ROLLS RM-219

The ROLLS RM219 Stereo Line Mixer is a line-level mixer with nine channels of stereo 1/4" inputs, a single XLR Mic Input, a Tape input and output provided via stereo RCA jacks, and a mono auxiliary send and stereo returns. Each channel has a signal Level control, a right/left Balance control, an Auxiliary level control, and a Clip LED indicator. The master section has a Tape Input level control, an Auxiliary Return level control, and a Master Output volume control. The RM219 also has a Headphone Output with level control provided by the Master level controls.

Features:

• One XLR Mic Input with 12VDC Phantom Power.
• 9 Stereo Inputs.
• RCA Tape Inputs and Outputs.
• Balanced 1/4" TRS Outputs.
• Mono Auxiliary Send.
• Stereo Auxiliary Returns.
• Clip Indication on Each Channel.
• Headphone Output.
• Master Output Level Control.
• Balance Control for Each Channel.
• Auxiliary Send Control for Each Channel.
• External Power Supply (included) for Quiet Operation.

Specifications:

• Input Impedance:
• Line: 10K Ohms unbalanced
• Mic: 10K Ohms balanced
• Phantom Power Voltage: +12 VDC
• Output Impedance: 50 Ohms balanced
• Max Input Level: +18 dBV
• Phase Shift: < 10 deg. 20 Hz - 20 kHz
• Connectors: 1/4” and RCA
• Max Gain: 26 dB Line, 26 dB Aux
• S/N Ratio: >90 dB
• THD: < .003%
• IMD (SMPTE): < .003%
• Self Noise: < 82 dB
• Power: 120 VAC 50-60 Hz, 15 W
• Weight: 7 lbs (3kg)
• Size: 19” x 1.75” x 6.5” (48cm x 4.5cm x 17cm)


Specs:

• Type: Mixer
• Theme: Installation

Instruction manual / Safety instructions:

• Manual (386.12 KB)
