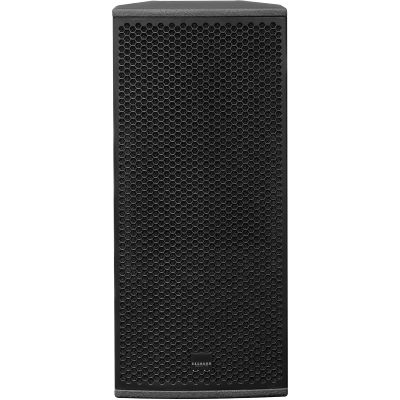

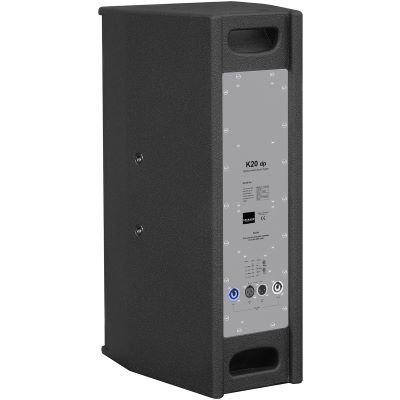

SEEBURG acoustic line K20 90°x60° (passiv)

Due to its design, the high-performance stop section K 20 is suitable for flexible applications in vertical and horizontal alignment. The optimised arrangement and control of the 2 x 10"/ 1.4 components ensures very precise dispersion and phase behaviour. The universal Multi Rigg™ can be mounted for installation.

Features:

• Loudspeaker components: 2 x 10" Nd / 1.4" Nd
• Description: High-performance HiMid system
• Power AES / peak: 800 W / 2400 W
• Impedance nominal: 4 Ω
• Sound pressure level 1 W / peak at 1 m: 100 dB / 134 dB
• Usable range: 70 Hz - 18 kHz (-6 dB)
• Tuning Frequency excursion minimum: 80 Hz
• X - Superpoint acoustic: 900 Hz
• Horizontal / vertical reach: 90° x 60° (60° x 50°), rotating
• Connectors 2 x Neutrik Speakon NL4MP in/out
• Coding: 1 +/- HiMid, 2 +/- loop through
• Handles: 2
• Rigging / Fittings: 10 x M10 for MultiRigg™ / 35 mm mast bracket
• weight: 22,5 kg
• Size: (H x W x D ): 66,0 x 30,0 x 36,0 cm

Specs:

• Impedance: 4 Ω
• Power: 800 W
• Housing Material: Wood
• Pole Mount: yes
• Airworthy: yes
• Woofer: 2 x 10
• Tweeter: 1 x 1,4
• Set Offer: no
• Type: Full Range Speaker
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (1008.96 KB)
