Sennheiser EW-DX EM 2 Y1-3

Sennheiser's EW-DX is a digital, easily scalable UHF system that significantly speeds up your workflow by utilizing advanced technologies. With an expanded feature set and hardware options, educational institutions, corporations and live event organizers benefit from a network-ready system designed for seamless integration. At the touch of a button, AutoScan checks the environment and uses equidistant channel spacing for the frequencies provided. Tools such as the Sennheiser Control Cockpit, Wireless Systems Manager and Smart Assist App allow you to monitor your system remotely.

Features:

• Sennheiser - EW-DX EM 2 Y1-3
• Digital 2-channel receiver in half rack width (9.5 inch) for use with Evolution Wireless Digital handheld, bodypack and desktop transmitters. Extended switching bandwidth of 88 MHz, intermodulation-free operation for up to 293 channels with secure AES-256 encryption and redundant power supply via Power over Ethernet (PoE)
• Up to 88 MHz switching bandwidth
• Wireless transmission with low latency of 1.9 ms thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• 134 dB input dynamic range - thanks to the proprietary SePac audio codec, no gain adjustment of the wireless transmitters is required
• Equidistant tuning grid for easy assignment of intermodulation-free channels: Standard mode with 600 kHz spacing for up to 146 channels; Link Density (LD) mode with 300 kHz spacing for up to 293 channels
• Network-enabled for advanced remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - available mid-2023) and third-party media control systems via plugins
• Power over Ethernet (PoE IEEE 802.3af Class 3)
• Ethernet connectivity (IPv4 and IPv6)
• Secure transmission of confidential content thanks to AES-256 encryption
• The AutoScan function quickly scans your environment and distributes frequencies with equidistant channel spacing - even without knowledge of RF technology
• Link Quality Indicator (LQI) shows the quality of the connections regardless of the RF levels
• Remote control via Smart Assist app using Bluetooth® Low Energy (BLE) from distances of up to 25 meters (available from the end of 2023)

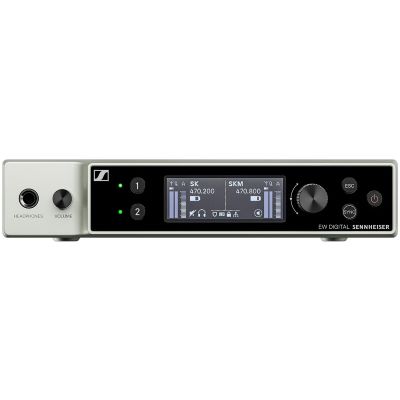

• Clear and simple focused user interface with OLED display, jog wheel navigation and control buttons
• Selective headphone output with volume control on the front panel
• Advanced menu settings such as user-defined frequency list, selectable sync parameters and walk test function
• External power supply 12V/1A
• Worldwide use (certain frequencies are subject to local RF regulations)

Technical data:

• Audio-Link - Frequency ranges: 1785.2 - 1799.8 MHz
• Bluetooth® Low Energy (BLE) - frequency range: 2405 - 2480 MHz
• Audio frequency response: 20 Hz - 20 kHz (-3 dB) at 3 dBfs
• Distortion factor at 1kHz: ≤ -60 dB for 1 kHz at -3 dBfs input level
• Dynamic range: 134 dB
• System latency: 1.9 ms
• HF technology: Intelligent Switching Diversity
• Temperature range (operation): -10 °C- +55 °C
• Relative humidity operating: 5 - 95 % (non-condensing)

Specs:

• Color: Black
• Set Offer: no
• Frequency band: 1.8 Ghz
• Type: Receiver
• Theme: Microphones
