Sennheiser XSW 2-ME2 E-Band Lavalier Set

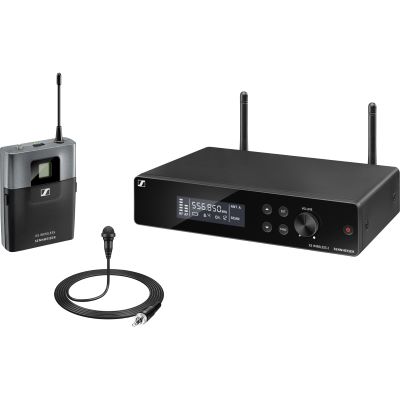

The Sennheiser XS Wireless 2 Lavalier Set consists of the almost invisible ME 2-2 clip-on microphone, a bodypack transmitter and a true diversity receiver. The All-in-One wireless system is specially designed for speakers and presenters.

Scope of delivery:

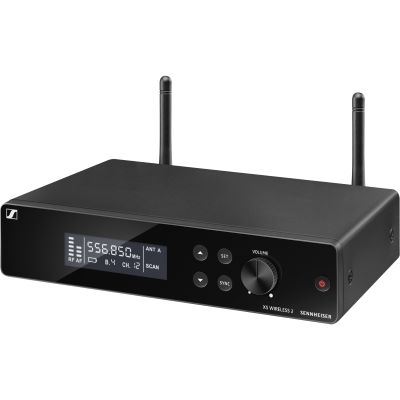

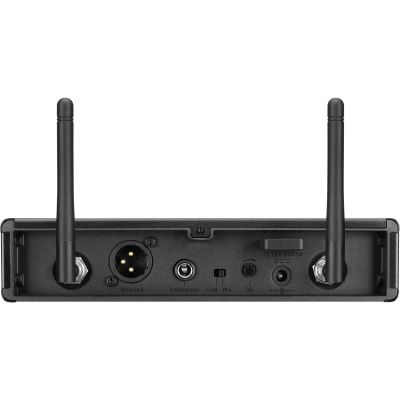

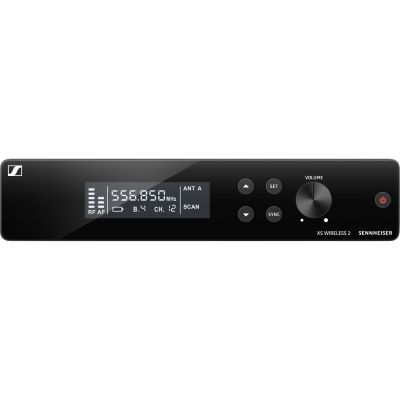

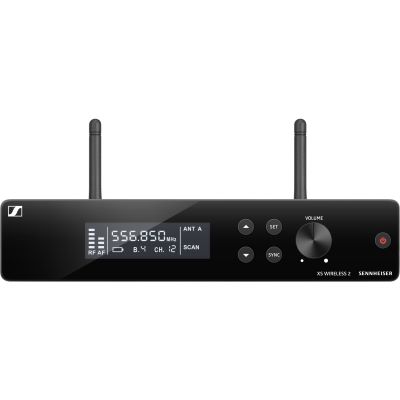

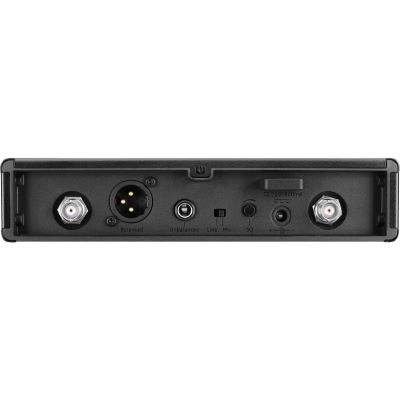

• 1 Receiver EM-XSW 2

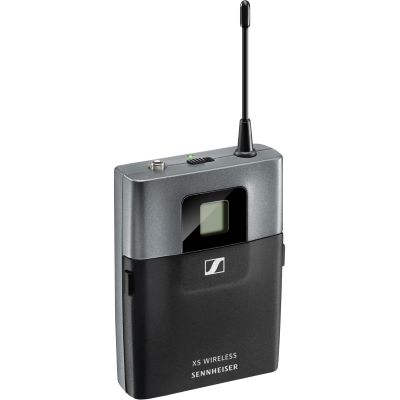

• 1 Pocket transmitter SK-XSW

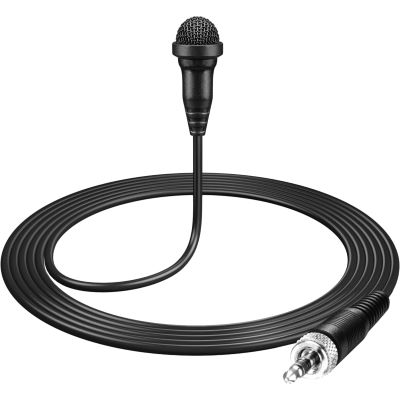

• 1 clip-on microphone ME 2-2
• 1 power supply NT 12-5 CW
• 2 AA batteries
• 1 rack mounting kit
• 1 bag
• instruction manual

Features:

• Nearly invisible clip-on microphone and compact pocket transmitter
• Stable true diversity receiver with metal housing
• External antennas
• Easy configuration thanks to automatic frequency management and automatic frequency tuning via remote channel
• High flexibility due to tunable UHF frequencies within a large bandwidth
• Rackmount kit included
• Up to 12 compatible channels

Technical data receiver:

• Dimensions: 200 x 42 x 127 mm
• Weight: 680 g
• Power supply: 12 V DC nom. / 300 mA
• Housing: Metal
• NF transmission range: 50 Hz - 16 kHz

Technical data transmitter:

• Dimensions: approx. 71 x 96 x 28 mm
• Weight: approx. 95g
• Operating time: approx. 10 hours
• Power supply: 2 AA batteries
• Housing: Robust ABS
• NF transmission range: 50 to 16,000 Hz (-3 dB)

Technical Data Microphone:

• Microphone: Condenser
• Audio transmission range: 50 to 16,000 Hz (-3 dB)
• Distortion factor at 1KHz: ≤ 0.9%
• Polar pattern: Omnidirectional
• Signal-to-noise ratio: ≥ 103 dBA
• HF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Modulation type: Wideband FM
• Output voltage: 6.3 mm jack (unbalanced): +6 dBu XLR (balanced): +12 dBu
• Diversity reception: True Diversity
• Frequency: 8 frequency banks with 12 preset channels each
• Frequency range: E: 821-832 MHz, 863-865 MHz
• Sensitivity, transmission factor: < 3 μV at 52 dB(A)rms S/N
• Squelch: tunable from 3 dBμV to 28 dBμV (with Pilot Tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active by synchronization)
• Adjustment Range Transmitter: 0 to -30 dB, tunable in 10 dB steps
• Audio adjustment range: 40 dB, tunable in 5 dB steps
• Line / Mic level: 20 dB, switchable
• Temperature range: operation: 0°C to +40°C, storage: -20°C to +70°C
• Receiver principle: double superheterodyne

Specs:

• Color: Black
• Set Offer: yes
• Converter: Condenser
• Frequency band: UHF
• Type: Radio System
• Theme: Microphones

Instruction manual / Safety instructions:

• Manual (7.43 MB)
