Sennheiser XSW 2-ME2 GB-Band Lavalier Set

Inspire your audience. Maximum flexibility for those who want to go the extra mile. XS WIRELESS 2 grows with its tasks, thanks to an intuitive LCD display for manual settings and 12 channels for all live applications in a wide UHF band.

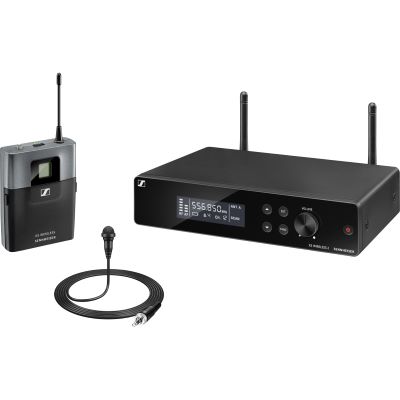

The XS WIRELESS 2 LAVALIER MIC SET is a very easy-to-use all-in-one wireless system for announcers and presenters. The set comes with stationary true diversity receiver in metal housing, as well as compact bodypack transmitter, almost invisible lapel microphone lightweight condenser headset microphone and rack mount kit.

Features:

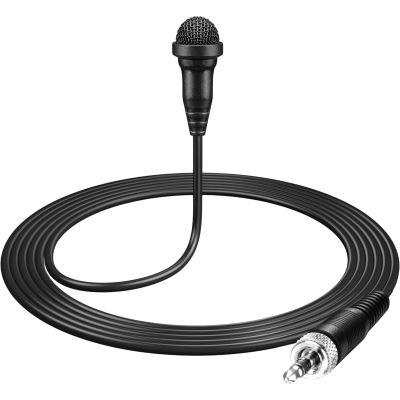

• Nearly invisible clip-on microphone and compact bodypack transmitter.
• Rugged true diversity receiver with metal housing
• External antennas
• Easy configuration thanks to automatic frequency management and automatic frequency tuning via remote channel
• High flexibility due to tunable UHF frequencies within a wide bandwidth
• Rackmount kit included
• Up to 12 compatible channels

Technical data:

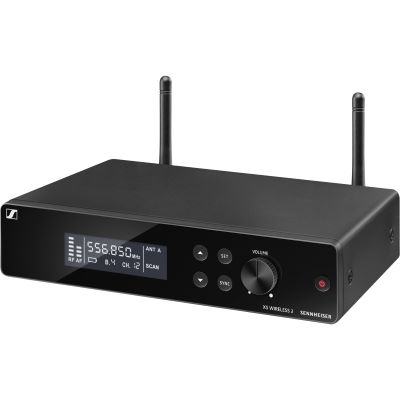

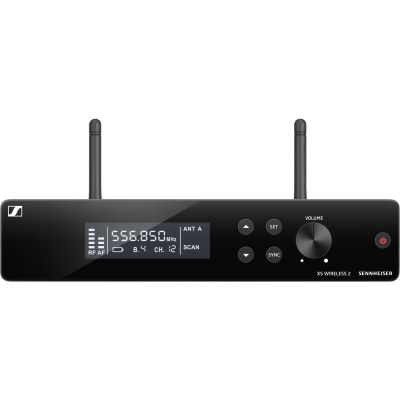

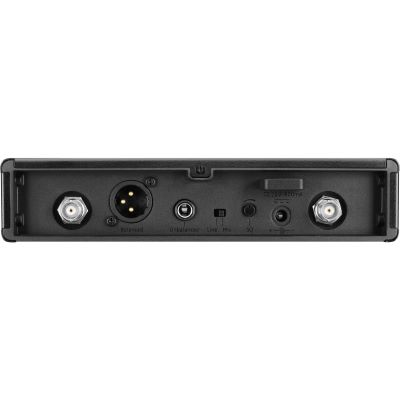

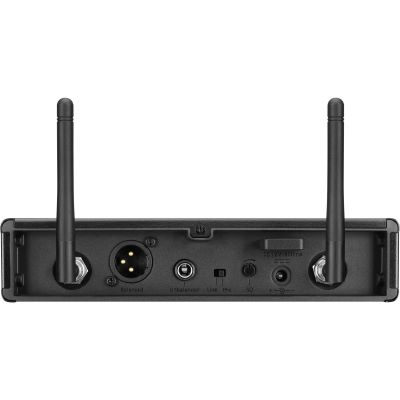

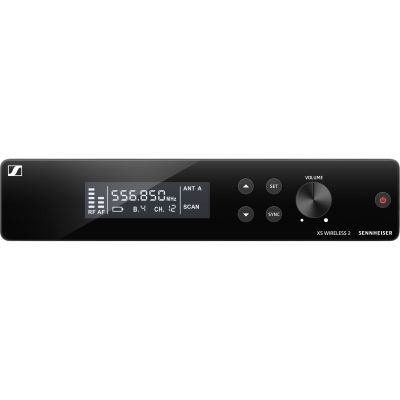

Receiver

• Dimensions: approx. 200 x 42 x 127 mm
• Weight: approx. 680g
• Power supply: 12 V DC nom. / 300 mA
• Housing: metal
• AF transmission range: 50 to 16,000 Hz

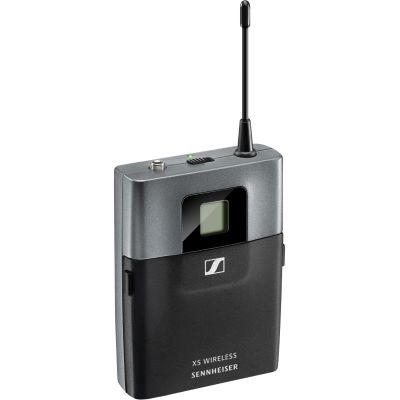

Transmitter

• Dimensions: approx. 71 x 96 x 28 mm
• Weight: approx. 95g
• Operating time: approx. 10 hours
• Power supply: 2 AA batteries
• Housing: Robust ABS
• NF transmission range: 50 to 16,000 Hz (-3 dB)
• Microphone: Condenser
• Audio transmission range: 50 to 16,000 Hz (-3 dB).
• Distortion factor at 1kHz: ≤ 0.9%.
• Polar pattern: Omnidirectional
• Noise level distance: ≥ 103 dBA
• HF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Modulation type: Wideband FM
• Output voltage: 6.3 mm jack (unbalanced): +6 dBu XLR jack (balanced): +12 dBu
• Diversity reception: True Diversity
• Frequency: 8 frequency banks with 12 preset channels each
• Frequency range: A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz
• Sensitivity, transmission factor: < 3 μV at 52 dB(A)rms S/N
• Squelch: tunable from 3 dBμV to 28 dBμV (with Pilot Tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active by synchronization)
• Adjustment Range Transmitter: 0 to -30 dB, tunable in 10 dB steps
• Audio adjustment range: 40 dB, tunable in 5 dB steps
• Line / Mic level: 20 dB, switchable
• Temperature range: operation: 0°C to +40°C, storage: -20°C to +70°C
• Receiver principle: double superheterody
• Scope of delivery: 1 receiver EM-XSW 2; 1 bodypack transmitter SK-XSW; 1 clip-on microphone ME 2-2; 1 power supply NT 12-5 CW; 2 AA batteries, 1 rack-mounting kit; 1 carrying case and user manual

Specs:

• Color: Black
• Set Offer: yes
• Converter: Dynamic
• Frequency band: UHF
• Type: Microphone
• Theme: Microphones
