SHOWTEC LS-200 Lifter 200kg 5,3m Product Details

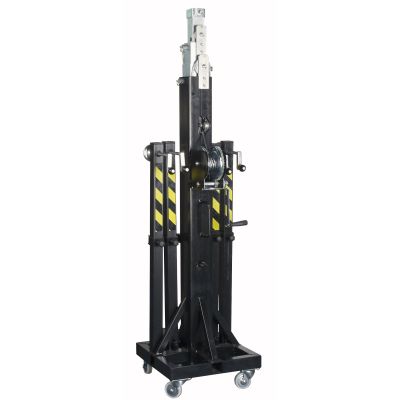

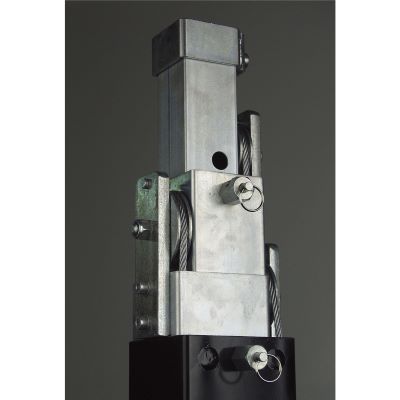

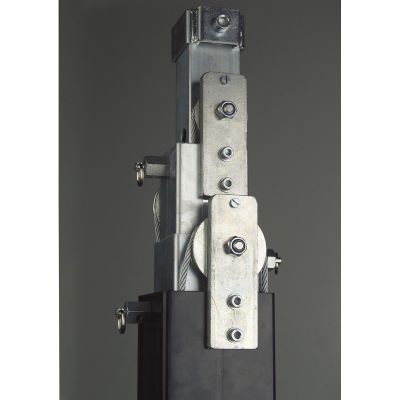

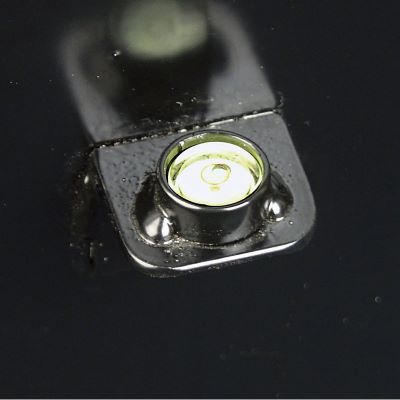

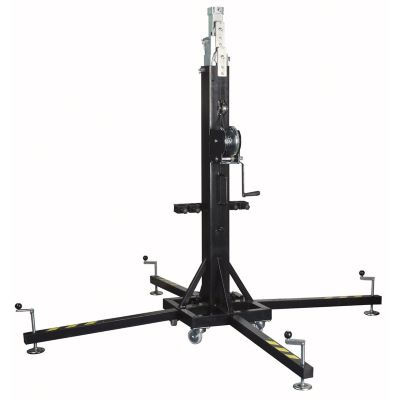

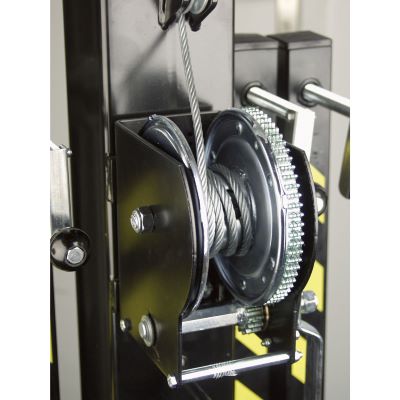

Showtec Elevator Towers are manufactured to lift loads vertically.The telescopic system is composed of three steel profiles handled through a steel cable of high resistance to the traction, guided by pulleys provided by self-lubricant ball bearings. The entire mobile system is fixed via security catches, essential during the tower effort. Automatic break winch according to the standard VBG 8/10.93 and certificate TÜV 9591009. The leg ends are adjustable in height. At the end of the legs are stabilizers, in order to make it easy to install the tower on every kind of ground. It also has a water level, for vertical adjustment. The entire set is covered by electrolytic zinc in order to protect it against corrosion and oxidation.
Features:
- Maximum vertical load: 220 Kg
- Minimum vertical load: 25 Kg
- Insertion diameter: 55mm
- Maximum Height: 5,3m
- Minimum Height: 1,75m
- Number of sections: 4
- Base: 2x2m
- Weight: 90 Kg
