Showtec W-DMX BlackBox F-1 G6 Transceiver

The Blackbox F-1 G6 is a simple and reliable RDM and Wi-Fi transmitter and receiver. With it you can establish a solid radio connection up to a distance of 700 meters. You can use it to send / receive up to 512 DMX channels. In addition, it can be used in combination with previous generations such as the G3, G4, G4S and G5. If you want to connect the F1 G6 black box with a Lumens Radio CRMX transmitter, you can choose the optional CRMX upgrade for F1 G6. This makes this receiver box the first in the world to work with more than two million wireless DMX devices.

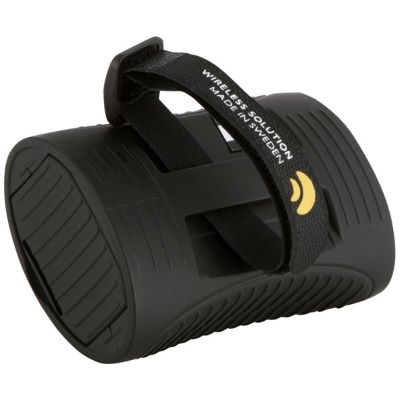

The F-1 G6 black box is a sophisticated device, yet very easy to use with just one button and status indicator LEDs. In addition, you can easily perform updates via Bluetooth with the W-DMX Configurator App. The aluminum housing has a built-in M10 clamp mount and a hole to securely fasten it with Velcro and an additional safety thread.

Features:

• Showtec - W-DMX BlackBox F-1 G6 Transceiver
• Transmission frequency: 2.4 GHz
• Gain (mW): 100 mW
• Response time: 5 ms
• Antenna gain: 3 dBi
• Antenna type: Omni
• DMX channels. 512
• Protocols: Art-Net, DMX, RDM, sACN
• Operating modes: Transceiver
• Power supply. 88-264 VAC
• Power consumption: 50 W
• Power input connector: powerCON TRUE1 TOP
• DMX connector OUT: XLR 3P, XLR 5P
• Length (mm): 260 mm
• width (mm): 150 mm
• height (mm): 45 mm
• weight: 1 kg
• Height units: 1 U
• IP protection class: IP42
• Material: Aluminum
• Housing material: Aluminum die-cast
• Color: Black
