Shure GLXD 14+ E/85

Ready for use. Intuitive. Every time.

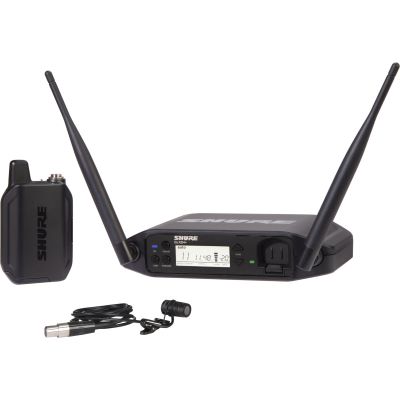

The new GLX-D+ dual-band radio system for presentations includes the WL185 premium lavalier microphone for speech applications and the GLXD4+ table receiver. The combination of automatic frequency management with the new dual-band technology ensures reliable and consistent performance, while Shure lithium-ion batteries provide up to 12 hours of battery life. Wireless without complications.

Features:

GLXD4+ Dual Band Wireless Receiver:

• Dimensions: 182.8 x 121.97 x 40.3 mm
• Weight: 310 g
• Housing: Plastic
• Power requirements: 14.5 V - 17 V, 600mA
• Noise rejection: >35 dB, typical
• Gain adjustment range: -20 to 40 dB in 1 dB step
• Phantom power protection: Yes
• Configuration XLR output: Impedance balanced
• Configuration 6.35 mm (1/4") output: Impedance balanced
• Impedance XLR output: 100 Ω
• Impedance 6.35 mm (1/4") output: 100 Ω (50 Ω, unbalanced)
• Maximum Audio Output Level-XLR connector (at 600 Ω load): 1 dBV
• Maximum Audio Output Level-6.35 mm (1/4") connector (at 3 kΩ load): +8.5 dBV
• Pin Assignments XLR Output: 1=Ground, 2=Hot, 3=Cold
• Pin Assignments 6.35 mm (1/4") Connector: Tip=Audio, Ring/Sleeve=ground
• Antenna Input Impedance: 50 Ω
• Antenna Type: Dual Band 1/2 WaveSleeve Dipole
• Maximum input level: -20 dBm

WL185 Professional cardioid lavalier microphone:

• Interchangeable microphone capsules provide the optimal choice for any application
• Wide dynamic range and frequency response for accurate sound reproduction across the entire sound spectrum
• Rotatable tie clip that can be rotated at 90° intervals for flexible attachment
• Included plug-in foam windscreen that suppresses breath noise and snaps securely into place
• Balanced, transformerless output for increased noise immunity on long cable runs
• Characteristic: cardioid
• Frequency response: 50 Hz - 17 kHz
• Output impedance: 1.8 kO
• Maximum sound pressure level: 130.5 dB SPL
• Dimensions (L x Ø): 22 x 12 mm

Specs:

• Color: Black
• Set Offer: no
• Converter: Condenser
• Frequency band: 2.4 Ghz
• Type: Radio System
• Theme: Microphones
