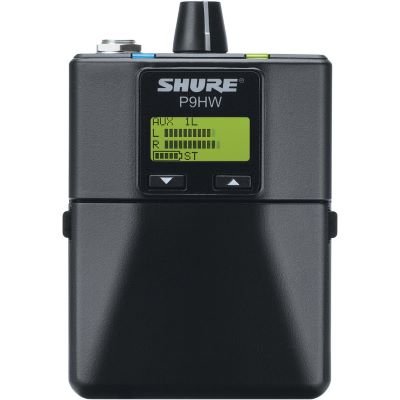

Shure P9HW

Shure P9HW - High-quality 2-channel monitor system for wired in-ear monitoring

The Shure P9HW is a professional, wired in-ear monitoring system designed specifically for musicians, engineers and presenters who need precise and flexible stage monitoring. It offers premium sound quality, versatile control options and rugged build quality - ideal for live performances, studios or broadcast applications where wireless transmission is not required or desired.

With intuitive operation, selectable operating modes(MixMode & Stereo), 4-band EQ, limiter and power-save function, the Shure P9HW is a professional solution for individual monitoring - reliable, compact and clear in sound.

Professional monitoring - tuned to the point

As part of the Shure PSM series, the P9HW delivers the same uncompromising standards of quality and practicality as the wireless PSM systems - but in a wired version for applications where maximum signal stability and low latency are required. It is ideal for stationary musicians (e.g. drummers, keyboardists), singers or technicians who need to rely on detailed, interference-free sound.

Thanks to the selectable input levels Line (+4 dBu) or Aux (-10 dBV), the device can be integrated into a wide variety of stage and studio environments - whether directly from the mixing console or from a monitor output.

Technical features - Flexible and individually adjustable

The Shure P9HW has two channels and enables a continuous mix between both input signals via the MixMode - ideal for the individual adjustment of e.g. vocals and instruments. Alternatively, you can work in stereo mode to create a spatial sound image. Both modes offer the greatest possible control over the personal monitoring experience.

The integrated 4-band parametric equalizer allows precise sound shaping according to personal preferences or to compensate for room acoustics. In addition, a switchable limiter protects against sudden volume peaks - an important feature, especially for in-ear applications.

The LCD display provides clear information on the channels, operating mode and battery status. As soon as earphones are no longer connected, the power save mode is automatically activated to maximize battery performance.

Robust, mobile and user-friendly

The P9HW is housed in a robust metal casing that is designed for everyday use on stage. With a compact design of 66 x 23 x 99 mm and a weight of only 196 g, it can be carried comfortably on a belt and is hardly noticeable in live operation. It is powered by 2 AA batteries with a runtime of up to 9 hours - sufficient for longer concerts, rehearsals or events.

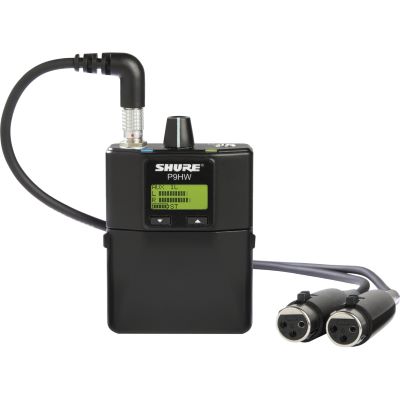

The audio connection is made via a 3.5 mm stereo mini jack for in-ear headphones and a 5-pin mini XLR input. The scope of delivery includes a practical Y-cable for connecting two signal sources and a high-quality leather bag for protection and transportation.

Features:

• Model: Shure P9HW
• Type: Wired 2-channel in-ear monitor system
• Frequency response: 20 - 20,000 Hz
• Impedance: 9.5 Ohm
• Signal-to-noise ratio: 98 dB
• Operating modes: MixMode & Stereo
• EQ: 4-band parametric equalizer
• Limiter for volume limitation
• Switchable input levels: Line (+4 dBu) and Aux (-10 dBV)
• Display: LCD with channel, battery and status display
• Power save mode when not in use
• Power supply: 2x AA batteries (up to 9 hours running time)
• Connections: 3.5 mm stereo mini jack (headphones), 5-pin mini XLR (input)
• Material: metal housing
• Dimensions (L x W x H): 66 x 23 x 99 mm
• Weight: 196 g
• Color: Black
• Scope of delivery: Shure P9HW, Y-cable (input), leather case

Specs:

• Type: InEar System
• Theme: PA and Sonication
