Shure PSM 300 Stereo In-Ear Monitoring System S8

Shure's new PSM300 stereo in-ear monitoring system comes with the reliable P3T radio transmitter with pin sharp 24-bit audio transmission. The P3R bodypack receiver uses patented Audio Reference Companding, which provides clear, natural sound without discoloration or artifacts and is virtually identical to standard cable transmission. With a range of up to 90 m, transmission is always trouble-free even on very large stages.

The stereo system sends two audio signals simultaneously to the pocket receiver, which can be adjusted with'' MixMode'' and left-right balance. The frequency selection is done automatically via the scan/sync technology, where first the radio environment is scanned and then a free frequency is transmitted to the transmitter via infrared. The transmitter is suitable for rack mounting, the required accessories are already included in the scope of delivery.

Features:

• Scope of delivery: P3T radio transmitter, P3R stereo pocket receiver, mounting kit for rack mounting
• Frequency band version: S8 (823 - 832 MHz)
• Stereo transmission of 2 audio signals simultaneously
• 24-bit audio processing
• Signal-to-noise ratio up to 90 dB
• Very wide stereo separation
• Monitor mix directly on the beltpack with Stereo Mode and ModeMix
• Frequency transmission with scan and sync via infrared
• 1/2-19 "rack mounting of the transmitter

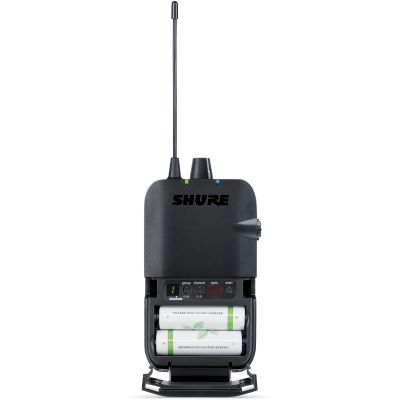

Features Stereo pocket receiver P3R:

• Robust housing, very light and slim
• With Scan and Sync the cleanest channel is found as fast as possible
• Two independent monitor mixes possible with MixMode
• Adjustable left-right balance in stereo mode
• Equipped with 2x AA battery, battery life up to 5.5 hours or SB900 Li-Ion battery, battery life up to 7 hours (batteries/rechargeable batteries not included)
• Indicator LEDs for power and battery
• Automatic energy saving mode when no earphones are connected
• Clear and simple operation

Features Radio transmitter P3T::

• Transmit two audio signals simultaneously
• Signal is transmitted cleanly and steadily over 90 m long
• Synchronization transmitter-receiver via infrared
• Transmission power up to 30 mW and 24 MHz bandwidth (regional dependent)
• Connections 6.3 mm jack and loop-out
• Menu with LC display
• All parameter displays with detailed information
• Antennas removable
• External power supply

Technical Specificatons:

• HF frequency range: regionally dependent, 10 - 30 mW
• Range: 90 m max.
• Signal-to-noise ratio (A typical): 90 dB
• Operating mode: stereo
• Compatibility: max. 15 systems per frequency band
• Personal Mix Control: yes, at the transmitter
• Frequency response: 38 Hz - 15 kHz
• Latency: 0.5 ms

Specs:

• Type: InEar System
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (962.68 KB)

Downloads:

• Booklet (641.17 KB)
