Shure SLXD 24DE/SM58 Duales Handsendersyst. SM 58 823-832 MHz & 863-865 MHz

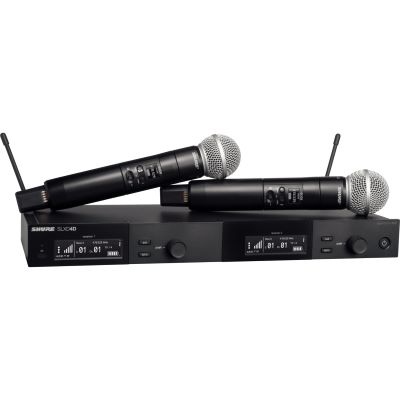

The professional handheld transmitter SLXD 2 in the SM58 version and 2-channel receiver SLXD 4DE from the Shure brand offer the optimum radio path for show and stage events. Both receiver and transmitter transmitters consist of a galvanized and robust metal housing. In addition, the SLXD 4DE is equipped with industry-leading digital wireless technology to synchronize with the SLXD 2 via "Scan and Sync" IR connection and easily transmit a range of up to 100 meters (max.).

They feature transparent 24-bit audio quality, easy setup and absolutely reliable RF performance. In addition, the two components are equipped with high-quality LCD displays which provide information on frequency, battery status and other details. The SLXD 2 are equipped with the dynamic SM 58 capsule, which has a cardioid polar pattern. characteristic. The capsules are interchangeable and compatible with all Shure microphone heads.

The included accessories include antennas, rackmount accessories and four AA batteries.

Features:

• 24 bit resolution
• Bandwidth: over 200 kHz
• Dynamic range: 120 dB
• Range: up to approx. 100 m
• Frequency range 823-832 MHz & 863-865 MHz
• Extended transmission range from 20 Hz to 20 kHz (microphone-dependent)
• 44 MHz switching bandwidth (region-dependent)
• Up to 32 channels per frequency band (region-dependent)
• Up to 12 compatible channels per 8 MHz band

SLXD 4E:

• SLXD 4E dual receiver from Shure
• 24 bit resolution
• Antenna impedance: 50 Ω
• Antenna connector: BNC
• Single port Ethernet 10/100 Mbps
• Connections: 2x 6.3 mm jack & XLR
• Power supply: 15 V DC (600 mA)
• Material: robust metal housing
• Dimensions (L x W x H): 393 x 152 x 42 mm
• Weight: 1451 g
• Color: black

SLXD 2/SM58:

• Handheld transmitter SLXD 2 from Shure
• Capsule: SM 58 (dynamic)
• Polar pattern: Cardioid
• Frequency response: 20 Hz to 20 kHz
• Antenna type: Integrated single-band helical antenna
• Operating time: 8 h
• Power supply: optional rechargeable lithium-ion battery SB 903 or 2 x AA batteries 1.5 V
• Material: robust aluminum housing
• Dimensions (∅ x H): 37.1 x 176 mm
• Weight: 147 g
• Color: black

Specs:

• Color: Black
• Set Offer: no
• Converter: Dynamic
• Frequency band: n/a
• Type: Radio System
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (1.68 MB)
