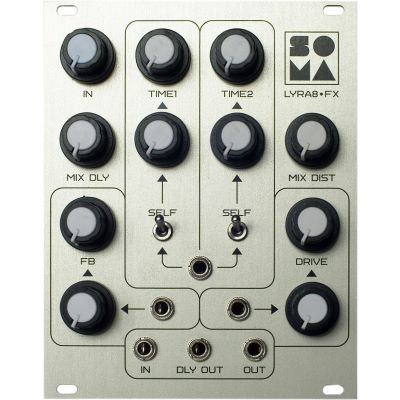

SOMA Laboratory Lyra-8 FX

SOMA Laboratory Lyra-8 FX is a processor that gives you an essential part of the mysterious LYRA-8 sound thanks to the FX section from the LYRA-8, extended with CV controls and packed into a Eurorack module.

It includes a double-modulated lo-fi delay with cross-feedback and the unique option of self-modulation, where the delay output signal modulates its own sample rate. It also includes parallel distortion with CV control of the drive. The distortion occurs after the delay. It's much more than a delay - you can get a simple reverb, comb filter, chorus and many more cool effects that are hard to describe.

Features:

• Controls:
• IN volume
• Stage 1 delay time
• Stage 2 delay time
• Stage 1 delay time modulation depth
• Stage 2 delay time modulation depth
• Delay feedback
• Delay feedback CV amount
• Delay mix
• Distortion drive
• Distortion mix
• Distortion drive CV amount
• Switch:
• Stage 1 delay time modulation source
• Stage 2 delay time modulation source
• Inputs:
• Audio in
• Delay time CV
• Delay feedback CV
• Distortion drive CV
• Outputs:
• Main audio out
• Delaý only out
• Dimensions:
• Width 20HP
• Depth 40mm
• Power consumption:
• +12V 90ma
• -12V 20ma

Specs:

• Type: Module
• Theme: Recording and Studio
