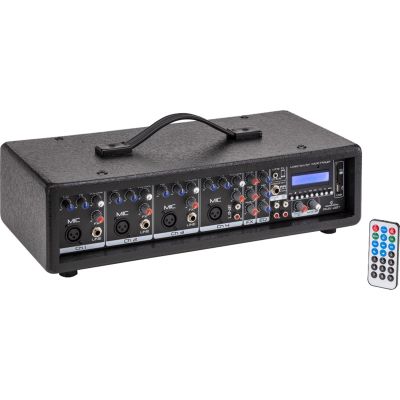

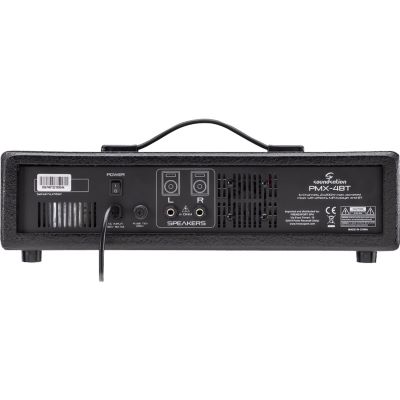

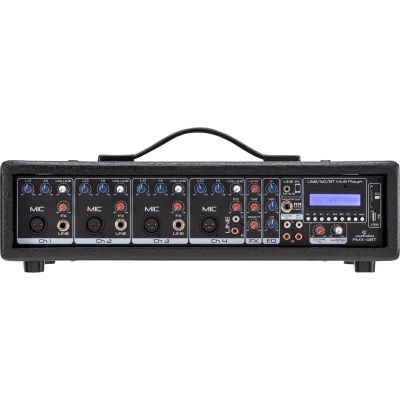

Soundsation PMX-4BT

Soundsation PMX-4BT is designed to be a powerful resource for live and educational purposes. The friendly user interface is one of the best features of this product and allows you to configure your audio device in a quick and easy way. The 6-channel active mixer allows you to connect microphones, instruments or other audio devices thanks to the XLR inputs on channels 1-4, ¼" jack inputs on channels 1-3, stereo RCA inputs on channel 4 and 3mm jack input on channel 5/6. Each channel has a 2-band EQ that allows you to better tune each channel. You can also use the 3-band EQ in the master section to adjust the overall sound to the characteristics of the environment in which you'll be using the unit. The system is equipped with a built-in effect with level adjustment on channels 1-4, and you can adjust the level of the master effect, the time duration and the number of repetitions in the FX section. The multimedia player with remote control reads MP3 files via the USB port, SD card slot and BT port, and displays all playback information on the large LCD screen.

Features:

• 6-channel mixer with 200+200 W power, effect and multimedia player.
• 4 mic/line channels (CH1-4) with independent 2-band EQ and FX send bus with adjustable level
• 1 stereo channel (CH5-6) with 3-mm jack connection for tablets, computers and other multimedia devices
• 3-band EQ on the master outputs
• Effect with level, delay time and repeat function
• RCA stereo TAPE in/out for an external recorder/player
• MP3 player with remote control for USB, SD card devices and BT connection
• Shock resistant wooden case with convenient handle for easy transportation

Specifications:

• Rated power: 100+100W @ 4ohm
• Peak power: 200+200W @ 4ohm
• Frequency range: 20Hz - 20KHz +1/-3dB @ 1W
• Mixer: 6-channel inputs (4 x mono/line, 1 x stereo line)
• Input impedance: Mic - 2Kohm (balanced) / 1kohm (unbalanced); Line - 10kohm / Tape IN - 47Kohm
• Input channel: EQ HIGH +/-15dB @ 12kHz; LOW +/-15dB @ 80Hz
• 3-band EQ: bass-mid treble for master section
• Stereo monitor output: ¼" stereo phone plug (TRS)
• Speaker outputs: 2x ¼" mono jack (TS)
• Effect: Eco with adjustable level, time and repetition
• Digital delay time: 140 - 342ms
• Digital Player: USB (MS-DOS® FAT-32 format, max. 32GByte), SD-Card (MS-DOS® FAT-32 format, max. 32GByte), Bluetooth®, LCD Display, Remote Control
• AC input: 230 V - 50Hz
• dimensions: 470 x 225 x 130 mm
• Weight of the device: 7.2 kg

Specs:

• Type: Mixer
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (3.27 MB)
