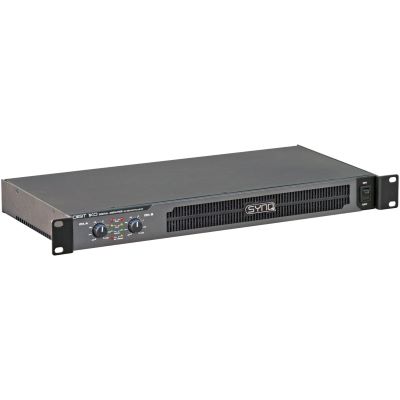

Synq DIGIT 1K0

Professional Class D digital power amplifier from Synq Audio with exceptional power (2 x 540 watts at 4 ohms) and competitive price. The extremely high efficiency, the reduced power drop and the very low heat development are the main advantages of these PWM amplifiers and all this at only 1 U height.

Features:

• soft start
• Automatic current limiter
• short-circuit fuse
• DC interference protection
• overheating protection
• overload protection
• Can be used in stereo bridge and mono mode
• Balanced XLR inputs
• Balanced XLR outputs to loop through
• 3 Speakon outputs
• The output stage generates a powerful bass pressure - ideal for subwoofers
• Switchable 30Hz high pass filter
• 1 temperature controlled and extremely quiet SUNON Vapo fan

Technical data:

• Stereo power: 8 Ohm 2 x 300 Wrms
• Stereo power: 4 Ohm 2 x 540 Wrms
• Bridged 8 Ohm: 1080 Wrms
• THD: < 0.04%
• Frequency response: 5 - 30,000 Hz
• Input impedance: 10 kOhm
• Signal-to-noise ratio: > 100 dB
• Damping factor: > 300
• Dimensions: 483 x 215 x 44 mm
• Weight: 3 kg

Specs:

• Color: Black
• Set Offer: no
• Channels: 2
• Fanless: no
• Bridge operation: yes
• Output power into 4 ohms: 540 W
• Output power into 8 ohms: 300 W
• digital power amplifier: yes
• Type: Amps
• Theme: PA and Sonication
