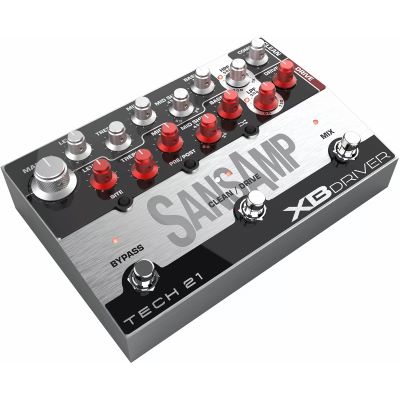

Tech 21 SansAmp XB Driver

Tech 21 SansAmp XB Driver: The versatile bass preamp for rock and heavy sounds

The Tech 21 SansAmp XB Driver is the latest development in the legendary SansAmp series and offers bassists a complete solution in pedal format. Since the introduction of the SansAmp Bass Driver D.I. in 1989, Tech 21 has stood for innovation in bass equipment and with the XB Driver now offers a tool that shines with maximum versatility and flexibility. Whether in the studio or on stage, this pedal enables powerful and authentic bass sounds that are convincing in any style of music, but especially in rock and heavy genres.

Tech 21: Pioneer for bassists since 1989

Tech 21 was founded in New York and has made a name for itself with innovative products such as the SansAmp series. The brand is known for its analog amp simulators, which deliver first-class sounds even without an amplifier. The XB Driver is the newest member of this family and combines decades of experience in a powerful and compact preamp. This pedal is the perfect tool for bassists who want to get the best out of their sound while relying on the proven quality of Tech 21.

Dual-channel design with extensive sound options

The Tech 21 SansAmp XB Driver offers two completely independent channels: a clean channel and a drive channel. Each channel is equipped with its own 3-band EQ and parametric midrange control, making it particularly easy to fine-tune the sound. The clean channel also has a vintage FET compressor, while the drive channel is equipped with a drive control that provides more presence and punch thanks to the "Bite" switch. This dual channel structure allows for tremendous flexibility and the ability to combine different timbres to achieve the perfect sound.

Unique bi-amping function for versatile sound possibilities

An outstanding feature of the XB Driver is the crossover switch for bi-amp mode. In bi-amping mode, the drive channel is equipped with a high-pass filter and the clean channel with a low-pass filter so that both channels can be operated simultaneously. This enables a clear separation of frequencies and creates a powerful, full-bodied sound that was previously only possible with complex hardware. The bi-amping function is ideal for bassists who want to add an extra dimension to their sound, allowing them to achieve both clear lows and assertive highs.

Versatile connections for maximum flexibility

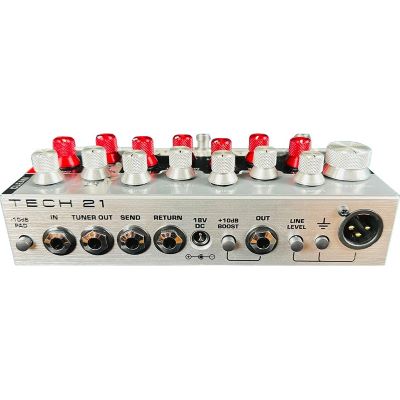

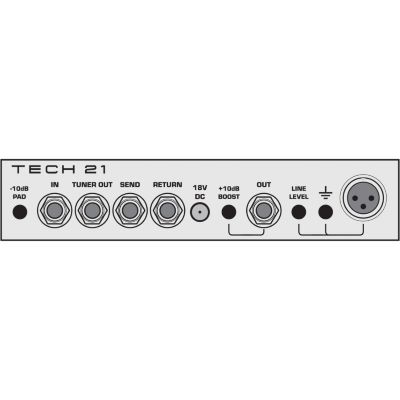

The SansAmp XB Driver offers a wide range of connection options, making it a flexible tool for any application. With a 6.3 mm jack input and a 10 dB pad switch for variable input sensitivity, the pedal can be adapted to different signal sources. The outputs include an unbalanced 6.3 mm jack output and a balanced XLR output that allows direct connection to a mixing console or interface. An FX loop with send and return sockets and an additional tuner output round off the connection options and make the XB Driver a comprehensive tool that can be easily integrated into any setup.

Intuitive operation and robust construction

The design of the XB Driver is well thought out and enables intuitive operation. The silver and red coding on the controls makes it easy to distinguish between the clean and drive channels. Each channel has level controls for the volume and separate EQ controls with continuously adjustable mids. The footswitches allow quick switching between channels, bypass switching and activation of the bi-amping mode, making the XB Driver easy to operate even during a live performance. The sturdy housing made of high-quality materials ensures a long service life and can withstand even intensive use.

Perfect for rock and heavy sounds

The Tech 21 SansAmp XB Driver is primarily aimed at bassists who are active in the rock and heavy range and are looking for a flexible preamp. The combination of two channels, distortion and bi-amping enables authentic and powerful sounds ranging from blues to metal. Whether as an effect in front of an amplifier, as a preamp in front of a power amplifier or directly into a mixing console - the XB Driver delivers a dynamic and assertive sound that proves its worth in any style of music.

Recommended purchase: SansAmp XB Driver for the uncompromising bassist

The Tech 21 SansAmp XB Driver is an excellent choice for bassists looking for a flexible and powerful preamp. With its extensive features, two channels and bi-amping option, it offers a tonal variety that hardly any other pedal can match. Whether in the studio or live - the XB Driver meets the highest demands and is the perfect tool for bassists who don't want to compromise on sound.

Features:

• Pure analog bass preamp and amp simulator in pedal format
• Two fully independent channels with their own 3-band EQ and parametric midrange control
• Vintage FET compressor in the clean channel
• Drive control in the distortion channel with "bite" switch for more presence
• Crossover switch for bi-amping with HP and LP filter
• Line level switch and ground lift
• Footswitch: bypass, channel selection, mix for bi-amping
• Input: 6.3 mm jack with 10 dB pad switch
• Outputs: 6.3 mm jack (unbalanced), XLR (balanced)
• FX send/return and tuner output
• Dimensions (L x W x H): 191 x 121 x 51 mm
• 18 V AC power supply included

Instruction manual / Safety instructions:

• Manual (2.04 MB)
