NEW Union Audio ELARA.6 4+2-Kanal Rotary Performance-DJ-Mixer

Union Audio ELARA.6 4+2-channel rotary performance DJ mixer

The Union Audio ELARA.6 is an uncompromising premium DJ and live mixer for professional club and studio applications. With four dual main channels, two additional return channel strips and an innovative Analogue Processing (AP) system, it offers an exceptional combination of classic analog sound aesthetics and state-of-the-art performance functionality - Made in the UK.

4+2 channels with maximum sound control

The four main channels each have dual inputs (phono/line) and a 4-band EQ with dual mids for precise sound shaping. Two additional mic/stereo returns expand the setup with further flexible signal paths - including their own 4-band tone control with semi-parametric mids, additional aux send and dual cue system.

Analog processing (AP) - creative sound manipulation

The innovative AP channel strips are located on both sides of the main channels:

• Switchable high- or low-pass filter with resonance and frequency control
• Drive control with active side-chain for subtle warmth to powerful distortion
• Width control for controlling the stereo image - from mono to extra-wide

In addition, the signal can be routed either pre- or post-AP to Aux 1 - ideal for creative effects chains and dramatic transitions.

Dual cue & flexible effect paths

Each channel offers a dual cue system, perfect for back-to-back sets or quick artist changes. With two aux sends per channel and flexible routing options, external effects and outboard gear can be seamlessly integrated.

Rotary or linear - in under a minute

A particular highlight is the quick changeover between rotary and linear faders. Thanks to interchangeable fader plates, the ELARA.6 can be adapted to your preferred mixing style in less than a minute. The integrated Innofader crossfader is adjustable and can be completely deactivated if required.

Professional connectivity & audiophile performance

With balanced XLR master outputs (+27 dBu), Booth-Out, Record-Out and two headphone connections (6.3 mm & 3.5 mm), the ELARA.6 is equipped for any professional setup. The enormous dynamic range of over 114 dB and a frequency response of 10 Hz - 50 kHz guarantee uncompromising sound quality.

Conclusion: Analog perfection for uncompromising performances

The Union Audio ELARA.6 is a high-end DJ mixer for artists looking for creative freedom, analog sound depth and absolute control. Whether club, festival or studio - this device offers a perfect balance of tradition and innovation.

Features:

• 4+2-channel rotary/linear performance DJ mixer
• Dual inputs (phono/line) per channel
• 4-band EQ with dual mids
• 2 aux sends per channel
• Dual cue per channel
• Analog processing with filter, drive & width control
• Pre/Post-AP routing on Aux 1
• Mic/stereo returns with 4-band EQ & dedicated dual cue
• Switchable between rotary and linear faders
• Innofader crossfader (curve adjustable, can be deactivated)
• Pre/post-EQ monitoring, split cue & cue/mix

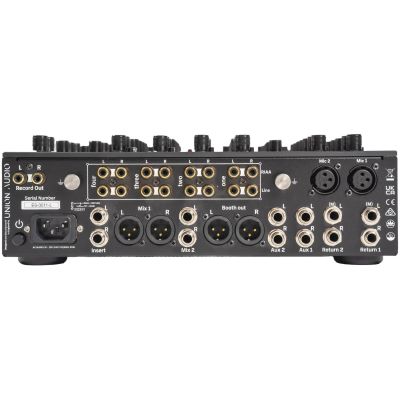

• Master-Out: 2 × XLR balanced
• Booth-Out: 2 × 6.3 mm jack
• Record-Out: 2 × RCA
• Headphones: 6.3 mm & 3.5 mm
• Analog circuitry for warm, detailed sound
• Internal universal switching power supply (can be used worldwide)
• Made in the UK
• Max. Output level: +27 dBu balanced
• Frequency response: 10 Hz - 50 kHz (+0 / -1 dB)
• Dynamic range: >114 dB
• THD+N: 0.03 %
• Channel crosstalk: < -100 dB
• Power consumption: max. 40 W

• Dimensions & weight:
• Dimensions (W × D × H): 30.0 × 37.0 × 8.0 cm
• Weight: 5.3 kg

Specs:

• Channels: 6
• Rack Mountable: no
• Effect Processor: no
• Talkover: no
• USB Port: no
• Line Inputs: 4
• Mic Inputs: 2
• Phono Inputs: 4
• Crossfader adjustable: no
• Color: Black
• Type: DJ Mixer
• Theme: DJ Equipment
