NEW Union Audio ORBIT.4 LE 4-Kanal Rotary Desktop DJ-Mixer

Union Audio ORBIT.4 LE 4-Channel Rotary Desktop DJ Mixer

The Union Audio ORBIT.4 LE is a professional 4-channel rotary desktop DJ mixer designed for demanding DJs, vinyl enthusiasts and audiophile setups. With fully analog signal routing, high-quality Alps rotary faders and precise isolator design, the ORBIT.4 LE delivers an exceptionally warm, dynamic and detailed sound - Made in the UK.

Four independent channels with phono & line

Each of the four channels is equipped with a high-quality phono preamplifier and a line input (RCA). The precise Alps Rotary faders offer a smooth, controlled rotary feel for smooth transitions and musical mixing at the highest level.

3-band isolator & high-pass filter

The integrated 3-band isolator allows full attenuation up to +6 dB boost and offers defined crossover frequencies (200 Hz, 800 Hz, 2000 Hz). In addition, each channel has a high-pass filter with variable Q - perfect for creative breaks and dynamic sound travel.

Flexible effect integration & master insert

An FX send with pre/post switching enables flexible effect paths per channel. External devices such as compressors, EQs or effects processors can be integrated directly into the signal path via the separate master insert - ideal for high-end setups.

Master section & monitoring

The master section offers separate controls for Master Out, Booth Out and Aux Return. Two illuminated analog VU meters ensure precise level management. The powerful headphone amplifier (750 mW RMS @ 33 Ohm) supports split cue and cue/mix and offers both 6.3 mm and 3.5 mm connections.

Professional connectivity

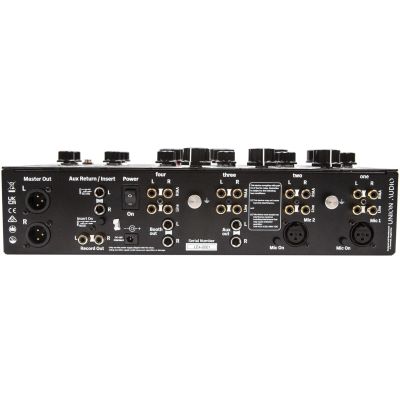

The ORBIT.4 LE has balanced XLR master outputs, balanced booth outs (6.3 mm) and a record out (RCA). Two balanced XLR microphone inputs with on/off switch expand the setup for moderation or vocals.

Conclusion: Rotary perfection in desktop format

The Union Audio ORBIT.4 LE combines classic analog sound aesthetics with modern performance functionality. Whether club, studio or sophisticated home setup - this rotary mixer offers the highest sound quality, creative flexibility and excellent workmanship.

Features:

• 4-channel rotary desktop DJ mixer
• 4x phono preamplifier & 4x line input (RCA)
• Alps rotary fader
• 3-band isolator (cut to +6 dB boost)
• High-pass filter with variable Q per channel
• FX send with pre/post switching
• Separate master insert
• 2x balanced XLR microphone inputs
• Master Out (2x XLR balanced)
• Booth Out (2x 6.3 mm balanced)
• Record Out (2x RCA)
• Powerful headphone amplifier (750 mW RMS @ 33 Ohm)
• Split cue & cue/mix function
• Two illuminated analog VU meters
• Analog circuitry for warm, classic sound
• Made in the UK
• Frequency response: ±2 dB from 20 Hz - 100 kHz
• RIAA accuracy: ±1 dB (20 Hz - 20 kHz)
• THD+N: 0.005 %
• Dynamic range: 117 dB
• Max. Output level: +27 dBu
• Residual noise: < -90 dBu
• Fader attenuation: > -80 dB
• Power supply: External switching power supply (12 V DC, 50 W)
• Input voltage: 90-260 VAC

• Dimensions & weight:
• Dimensions (W × D × H): 35.0 × 19.5 × 8.8 cm
• Weight: 3.5 kg
