NEW Union Audio ORBIT.4 LE FX 4-Kanal Rotary DJ-Mixer

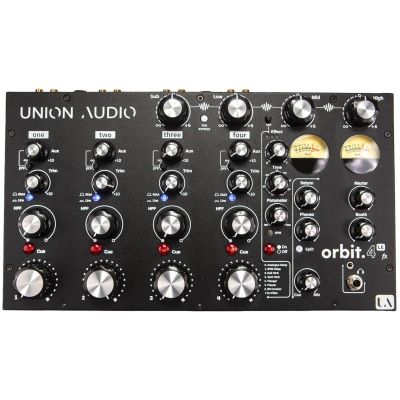

Union Audio ORBIT.4 LE FX 4-channel rotary DJ mixer

The Union Audio ORBIT.4 LE FX combines the legendary analog warmth of the Orbit series with a powerful integrated effects section. Designed for discerning DJs who demand the highest sound quality and creative flexibility, this 4-channel rotary desktop mixer offers professional performance for club, studio and high-end home setups - Made in the UK.

Four independent channels with phono & line

Each of the four channels is equipped with a high-quality phono preamplifier and a line input (RCA). The precise Alps Rotary faders enable smooth, musical transitions, while the high-pass filter with variable Q per channel allows targeted tonal interventions.

4-band isolator & flexible EQ structure

The integrated 4-band isolator offers a switchable 3-/4-band mode with crossover frequencies at 200 Hz, 800 Hz and 2000 Hz. With full cut and up to +6 dB boost, drastic breaks or subtle sound shaping can be realized.

Integrated digital effects section

A highlight of the LE FX series is the internal effects section with eight selected effects (delays, reverbs, phasers, flangers, bit crushers and resonant filters). Delay 2 offers automatic BPM detection or manual synchronization via tap tempo. Effects can be activated in latching or momentary mode for maximum creative control.

In addition, external effects can be integrated via FX send/return or the master insert. Internal and external effects can be used simultaneously - for an extended sound spectrum.

Master section & monitoring

Separate controls for Master Out, Booth Out and Aux Return allow precise level control. Two illuminated analog VU meters ensure precise signal monitoring. The powerful headphone amplifier (750 mW RMS @ 33 Ohm) supports split cue and cue/mix - with connections in 6.3 mm and 3.5 mm.

Professional connectivity

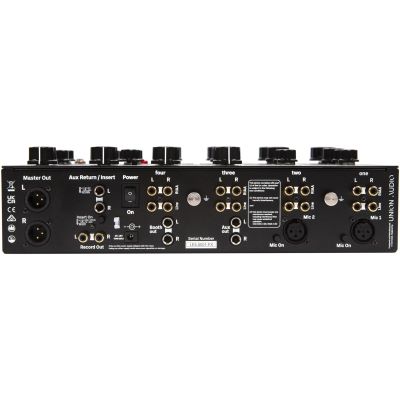

The ORBIT.4 LE FX features balanced XLR master outputs, balanced Booth-Outs, Record-Out (RCA) and two balanced XLR microphone inputs with on/off switch. The robust steel housing guarantees long-lasting performance in professional use.

Conclusion: Rotary character with modern effect power

The Union Audio ORBIT.4 LE FX combines classic analog sound aesthetics with modern DSP effects technology. For DJs who want to combine a warm rotary sound with maximum creative flexibility, this mixer is an outstanding choice.

Features:

• 4-channel rotary desktop DJ mixer
• 4x phono preamp & 4x line input (RCA)
• 4-band isolator with switchable 3-/4-band mode
• High-pass filter with variable Q
• Integrated digital effects section (8 effects)
• Delay 2 with BPM detection & tap tempo
• FX send with pre/post switch
• Master insert for external devices
• Dual microphone inputs (XLR)
• Alps rotary fader
• Master-Out: 2x XLR balanced
• Booth-Out: 2x 6.3 mm balanced
• Record-Out: 2x Cinch (RCA)
• Headphones: 6.3 mm & 3.5 mm
• Split cue & cue/mix function
• Two illuminated analog VU meters
• Analog circuitry for warm sound
• Made in the UK
• Frequency response: ±2 dB from 20 Hz - 100 kHz
• RIAA accuracy: ±1 dB (20 Hz - 20 kHz)
• THD+N: 0.005 %
• Dynamic range: 117 dB
• Max. Output level: +27 dBu
• Residual noise: < -90 dBu
• Fader attenuation: > -80 dB
• Power supply: External switching power supply (18 V DC, 30 W)
• Input voltage: 90-260 VAC

• Dimensions & weight:
• Dimensions (W × D × H): 35.0 × 19.5 × 8.8 cm
• Weight: 3.75 kg
