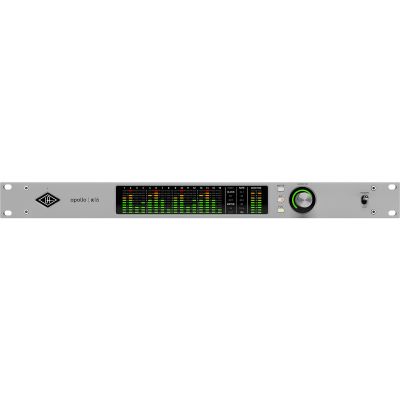

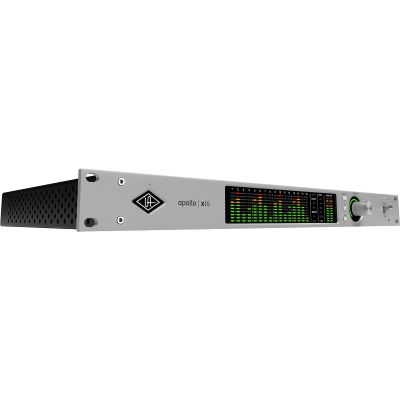

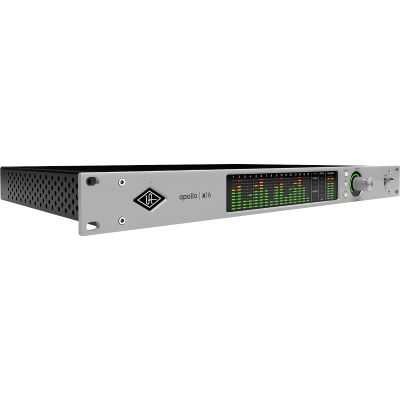

Universal Audio Apollo X16 Gen 2 Essentials+

Universal Audio Apollo X16 Gen 2 Essentials+: Professional Thunderbolt 3 audio interface

The Universal Audio Apollo X16 Gen 2 Essentials+ is a sophisticated audio interface designed specifically for professional studios and high-end productions. With an impressive 18 input and 20 output channels, state-of-the-art processing technology and support for surround formats up to 7.1, it meets the highest demands for sound quality and flexibility.

Universal Audio: the benchmark for professional audio solutions

Universal Audio is known for its high-quality audio products, which can be found in the best studios worldwide. The Apollo series sets standards in professional audio production, and the Apollo X16 Gen 2 Essentials+ represents the pinnacle of this development. With precise AD/DA conversion, comprehensive DSP performance and seamless integration into modern studio environments, this interface is an indispensable tool for producers and sound engineers.

Technical highlights of the Apollo X16 Gen 2 Essentials+

The Apollo X16 Gen 2 Essentials+ offers 24-bit/192 kHz converters that guarantee excellent sound quality and detailed recordings. The powerful 6-core SHARC DSP processor enables real-time processing of high-quality UAD plug-ins that emulate classic studio hardware. Functions such as auto-gain, an integrated talkback microphone and the monitor switch with dim and mono functions ensure a smooth workflow.

For film and music productions, the interface offers support for surround formats up to 7.1, including speaker calibration and downmix. Dual Crystal Clocking technology ensures jitter-free, artifact-free recordings and stable stereo imaging. With the ability to cascade up to four Apollos via Thunderbolt, the Apollo X16 is ideal for large studio setups.

Essentials+ Plugin Bundle: Extended creative possibilities

The included Essentials+ Plugin Bundle includes a selection of high-quality UAD plugins that emulate legendary studio hardware such as compressors, equalizers and effects. Thanks to the integrated DSP processor, these plug-ins run in real time without compromising computer performance.

Recommended purchase: Universal Audio Apollo X16 Gen 2 Essentials+

The Universal Audio Apollo X16 Gen 2 Essentials+ is the perfect choice for professional recording studios that need a versatile, powerful and high-quality audio interface. With its extensive features, support for surround formats and high-quality workmanship, it meets the highest demands for audio productions. Whether for music recording, post-production or film dubbing - this interface offers everything you need for excellent results.

Features:

• 24-bit / 192 kHz AD/DA converter
• 6-core SHARC DSP for internal UAD real-time processing
• Auto-gain function
• Switch for monitor switching
• Dim or mono assignable function button
• LED meter
• Integrated talkback microphone
• Support of surround formats up to 7.1 with speaker calibration and downmix
• Dual Crystal Clocking for jitter-free and artifact-free recordings
• Essentials+ plug-in bundle
• Cascadable with up to 4 Apollos via Thunderbolt
• Design: 19" / 1 U
• Dimensions: 483 x 308 x 44 mm
• Incl. external power supply unit

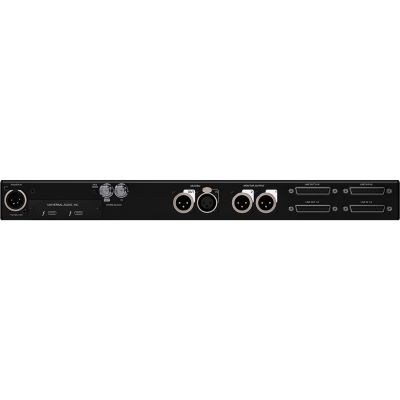

• 16 line inputs (Sub-D25)
• 2 monitor outputs (XLR)
• 16 line outputs (Sub-D25)
• AES/EBU input and output
• BNC word clock input and output
• 2 Thunderbolt 3 connectors
• Maximum sampling rate: 192 kHz
• Maximum resolution: 24 bit
• Bus-powered: No
• Compatible with Windows and Mac OS

Specs:

• Color: Silver
• Rack Mountable: yes
• Line Inputs: 16
• Line Outputs: 16
• Mic Inputs: 0
• Phono Inputs: 0
• Instrument Inputs: 0
• digital Output: AES/EBU
• digital Input: AES/EBU
• Headphone Out: no
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Host Port: Thunderbolt
• Number of headphone outputs: 0
• Type: Audio Interface
• Theme: Recording and Studio
