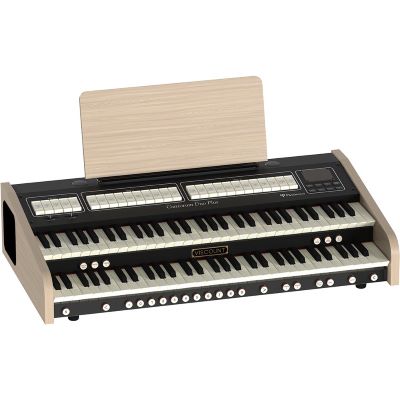

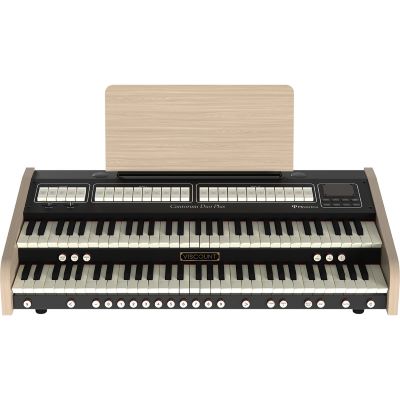

Viscount Cantorum DUO Plus

Cantorum Duo Plus is a completely portable organ equipped with 2 manuals, 27 stops and 3 orchestral voices.

It is powered by Viscount's patented Physis Plus technology, the natural and powerful evolution of the well-known Physis (Physical Modeling) technology, capable of faithfully reproducing the authentic sound and performance of a traditional pipe organ.The organist can choose between three different sets of pipes (Baroque, Romantic, Symphonic) and create his own preferred sound environment through acoustic modeling.

The organ settings are easily accessible, modifiable and storable via the improved graphic display on the front panel. The free editor allows you to edit, customize and design Cantorum Duo Plus and offers numerous functions for voicing, routing and customizing the organ.A wide range of accessories such as stands, bench, pedalboard, pedals and powerful external amplifiers are available to increase the flexibility of the organ.

Features:

• Manuals: 2
• Total stops: 27 organ stops + 3 orchestral voices
• Pedal: 5
• MAN I: 10
• MAN II: 12
• Alternative organ voices: 5 for each stop
• Alternative orchestral voices: More than 30 in total
• Coupler: 3
• Memory locations: 1000 (000 - 999)
• Piston Sequencer: Two thumb pistons
• Pipe sets: Baroque, Romantic, Symphonic

Dimensions:

• Height: (without music stand) 19 cm - 7.5"
• Height: (including music stand) 43 cm - 16.9"
• Width: 90 cm - 35.4"
• Depth: (without pedal board) 48 cm - 18.9"
• Weight: 20 kg - 44.09Lbs

Cabinet:

• Stop controls: Tilt tabs
• Laminated wood: Light oak

Display:

• Display Dimensions: 128 x 64 dot graphic with backlight
• Stop intonation: Available
• Division volume: Available
• Tremulant: 2 independent for each division
• Reverberation: 8 presets
• Ensemble effect: adjustable
• Temperaments: 19 historical + 4 user programmable
• Short octave: Available
• Keyboard inversion: Available
• Internal routing: Programmable for each register
• Internal equalizer: 5-band graphic EQ
• MIDI sequencer: Available
• File manager: Load, save, save, restore

Connections:

• MIDI In - MIDI Out: Available
• Aux in, Aux out: Available
• Headphone output: Available
• USB: A-type (USB pen) B-type (connection to Physis Editor)
• Expression Pedal In: Available
• Crescendo Pedal In: Available
• Sustain Pedal In: Available

External outputs:

• Channels: 4 programmable
• Channel Assignment: Voice, General, Reverb
• Equalizer: 5 band graphic EQ for each channel
• Routing: Programmable for each register
• Volume: Adjustable for each channel

Reverb system:

• True Stereo Reverb: 8 new unique presets
• Additional parameters: Dry/Wet,Early reflections, decay time
• Left/Right: Assignable to external outputs

Sound amplification:

• Internal amplifier: 2 channels Class-D amplifier 2x40W
• Internal speakers: 2 tweeters | 2x5" woofers

Menu functions:

• Pipe Set: Management of the pipe sets
• Tuning: Parameters for the tuning of the instrument
• Combinations: Management of the combination sets
• Intonation: Parameters for alternative voices and sound generation
• Setup: General settings of the instrument
• MIDI: MIDI settings
• Save / Restore: Save / Load configurations / Factory reset

Specs:

• Type: Organ
• Theme: Keyboard Instruments
