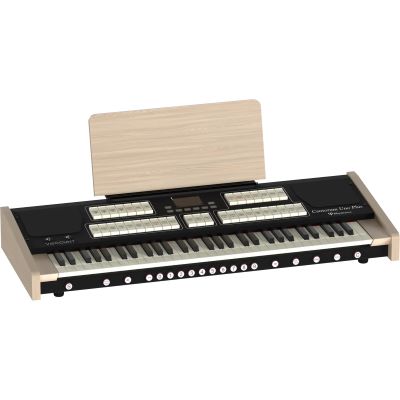

Viscount Cantorum UNO Plus

The Cantorum Uno Plus is a portable, portable organ powered by Viscount's patented Physis Plus technology. With 26 organ stops and 7 orchestral voices as well as built-in amplification, it guarantees a unique sound quality. These features, combined with a modern aesthetic, make it the perfect portable solution without sacrificing the quality that characterizes Viscount products.

Features:

• Fully portable organ with manual
• 26 organ stops and 7 orchestral voices
• Viscount patented Physis Plus technology
• Choice of three pipe sets: Baroque, Romantic, Symphonic
• Acoustic modeling for individual audio environments
• Advanced graphic display for easy customization and saving of settings
• Free editor for voicing, routing and adjustments

Technical specifications

• Technology: Physical modeling
• Manual: 1
• Total stops: 26 organ stops + 7 orchestral voices
• Pedal: 5
• MAN I: 8
• MAN II: 13
• Alternative organ stops: 5 for each stoplist
• Alternative orchestral voices: more than 30 in total
• Memory locations: 1000 (000 - 999)
• Piston sequence: Two thumb pistons
• Reed set: Baroque, Romantic, Symphonic

Dimensions

• Height (without music table): 13.4 cm - 5.26"
• Height (with music table): 35 cm - 13.78"
• Width: 99.5 cm - 39.17"
• Depth (without pedalboard): 43.3 cm - 17.05"
• Weight: 14.5 kg - 31.96 lbs

Cabinet

• Stop control: Tilt tabs
• Laminated wood: Light oak

Access

• Transport bag
• Bench
• Standard stand
• Large stand
• MIDI pedalboard
• Expression Pedals (2 units for Midi Pedalboard)
• Band pedal

Display

• Display dimensions: 128 x 64 graphics with backlight
• Stops Voicing: Available
• Partition volume: Available
• Tremulant: 3 independent for each division
• Reverb: 8 presets
• Ensemble Effect: Adjustable
• Temperaments: 19 Historic + 4 User programmable
• Short Octave: Available
• Keyboards Inversion: Available
• Internal Routing: Programmable for each stop
• Internal Equalizer: 5 Band Graphic EQ
• MIDI Sequencer: Available
• File Manager: Load, Save, Backup, Restore
• Lock Organ: With password

Music table

• Wooden table with metal and laminated

Manuals - Keyboards

• Standard keyboard: Available
• Plastic black keyboard covered with real wood: Optional

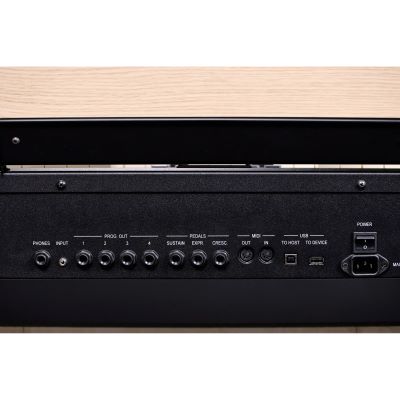

Connections

• MIDI In - MIDI: Available
• Aux In, Aux Out: Available
• Headphones: Available
• USB: A-Type (USB pen), B-Type (connection to Physis Editor)
• Expression Pedal in: Available
• Crescendo Pedal: Available
• Sustain: Available

External Outputs

• Channels: 4 programmable
• Channel assignment: Voice, General, Reverb
• Equalizer: 5 band graphic EQ for each channel
• Routing: Programmable for each stop
• Volume: Adjustable for each channel

Reverb System

• True Stereo Reverb: 8 new unique presets
• Additional parameters: Dry/Wet, Early Reflections, Decay Time
• Link/Right: Assign to external outputs

Sound Amplification

• Internal amplifiers: 2 channels Class-D amplifier 2x40 W
• Internal speakers: 2x5" dual-cone full-range speakers

Menu functions

• Pipe set: Pipe sets management
• Tuning: Tuning parameters of the instrument
• Combinations: Management of the combination set
• Voicing: Alternative voices and sound generations
• Setup: Instrument general settings
• MIDI: MIDI settings
• Backup / Restore: Saving / loading configurations / factory reset

Specs:

• Type: Organ
• Theme: Keyboard Instruments
