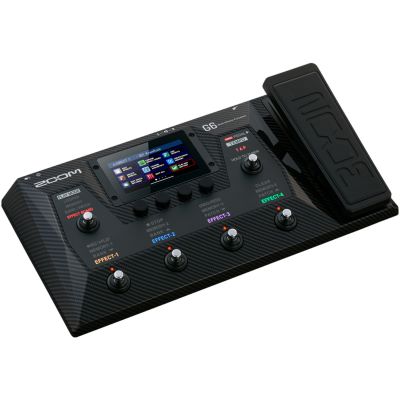

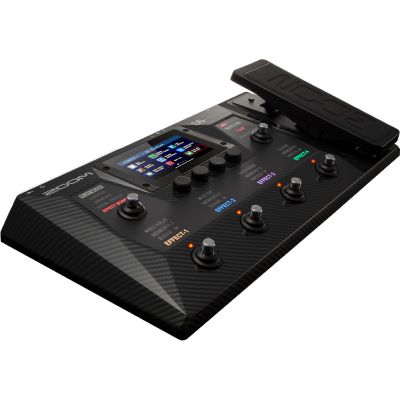

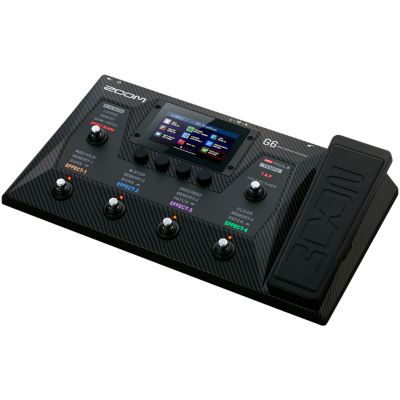

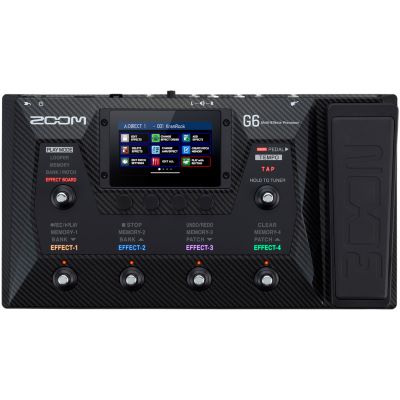

Zoom G6

Features:

• Integrated effects board with 6 footswitches for stomp effects and an expression/volume pedal
• Ultimate Zoom FX processor technology with custom amp modeling
• Control surface with color 4.3" LCD touchscreen
• Effects chains with up to seven effects plus amp emulation
• Impulse response loading function for speaker simulation
• New play mode footswitch for direct access to different play modes
• Easy-to-read backlit control panel with color-coded stomp effects
• Built-in USB audio interface (2 inputs / 2 outputs)
• 68 rhythm patterns
• Internal looper with up to 45 seconds: Expandable to up to 2 hours via optional SD card
• Compatible with Zoom Guitar Lab
• Wireless control via optional Bluetooth adapter (BTA-1) with Handy Guitar Lab app
• Maximum number of simultaneous effects: 7 effects
• User patches: 240
• Sampling frequency: 44.1 kHz
• A/D conversion: 24-bit 128x oversampling
• D/A conversion: 24-bit 128x oversampling
• Signal processing: 32-bit
• Frequency response: 20Hz - 20 kHz(+0.5dB/- 0.5dB) (10kΩ load)
• Display ;4.3" TFT color LCD (480x272)

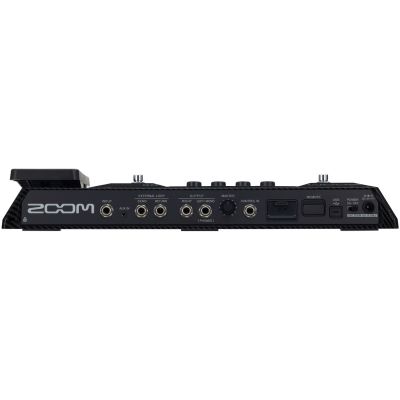

• Inputs
• INPUT
• Conventional 6.35mm mono phone jack.
• Recommended input level: -20 dBu
• Input impedance (line): 500 kΩ
• RETURN
• Conventional 6.35 mm mono jack socket
• Recommended input level: -20 dBu
• Input impedance (line): 1 MΩ
• AUXIN
• Stereo minijack jack
• Recommended input level::-1O dBu
• Input impedance: 1o kΩ
• Outputs
• OUTPUT R
• Conventional 6.35 mm mono phone jack.
• Maximum output level: +11.4 dBu (output impedance:1O kΩ or higher).
• OUTPUT L/MONO [PHONES]
• Conventional 6.35 mm stereo phone jack.
• Maximum output level: +11.4 dBu (output impedance:1O kΩ or higher)
• Headphone 24mW+24mW (at 32 Ω load)
• SEND
• Conventional 6.35 mm stereo phone jack.
• Maximum output level: +11.4 dBu (output impedance:1O kΩ or higher)
• Input noise margin: 123 dB
• Ground noise (residual noise): UR: - 99.3 dBu, SEND - 99.0dBu
• Controller input: FP02M input
• Power supply: Power supply: 9 V DC, 500 mA, internal conductor negative (ZOOM AD-16)
• USB Jack: USB 2.0 Micro-8/ Supported Cable Types: Micro-8 Guitar Lab: USB 1.1 Full Speed.
• Audio Interface: USB 2.0 Full Speed, 44.1kHz/32-bit, 2-In / 2-Out: Use a USB cable that supports data transfer. USB bus power is not supported
• SD Card: Standard: Cards that support SD/SDHC/ SDXC standard (Class 10 or higher)
• LOOPER: 44.1kHZ/1o-bit stereo WAV
• IR: 44.1- 192kHz, 16/24/32-bit WAV
• Outer dimensions: 228 mm (D) x 418 mm(W) x 65mm (H)
• Weight: 1.94 kg

Specs:

• Color: Black
• Effect Type: Modeling
• Type: digital Effects Processor
• Theme: Guitars and Basses
