Zoom H6 Studio

Zoom H6 Studio

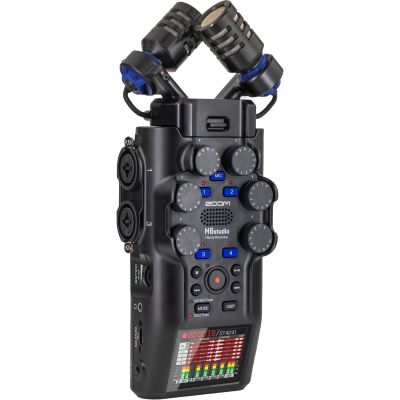

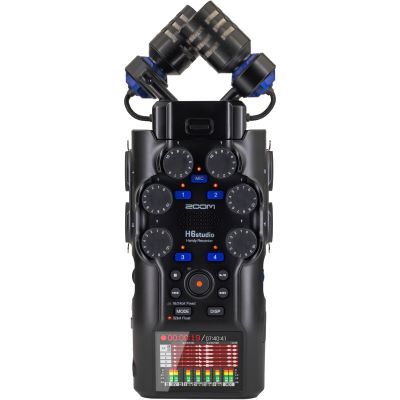

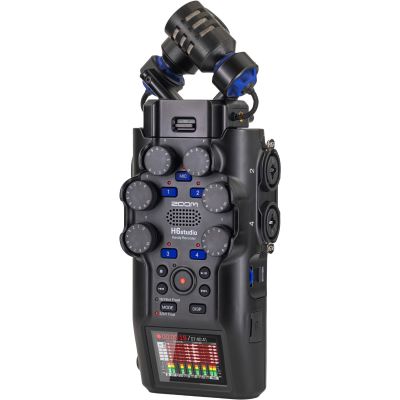

The Zoom H6 Studio is a next-generation portable audio recorder that delivers professional studio-quality sound no matter where it's used. With state-of-the-art 32-bit float technology, high-quality microphone capsules, powerful preamps and versatile connectivity, it is an indispensable tool for musicians, content creators, filmmakers and podcasters. Its sophisticated design allows for maximum flexibility and ease of use.

Manufacturer Zoom and the H6 Studio series

Zoom is a leading manufacturer of recording equipment and audio technology, recognized worldwide for its innovative products. The H6 Studio is based on the technology of the renowned F series and sets new standards in the field of mobile recorders. With features such as look-ahead limiters, an expandable capsule system and wireless control, the H6 Studio is a future-proof solution suitable for beginners and professionals alike.

Technical details of the Zoom H6 Studio

At the heart of the H6 Studio are four preamps from the F-Series, which enable extremely transparent recordings with a signal-to-noise ratio of -127 dBu. The 32-bit float recording technology ensures a dynamic range of 132 dB, reliably capturing even the finest details. This is complemented by the XY microphones with 19.4 mm capsules, which can record sound pressure levels of up to 140 dB SPL - perfect for noisy environments.

The device allows recordings in 16-, 24- or 32-bit and in sample rates from 44.1 to 192 kHz. In addition to six individual tracks, an additional stereo mix can be recorded, allowing up to eight tracks to be recorded simultaneously. A 2.0-inch color display provides an overview, while level meters and waveforms can be controlled in real time.

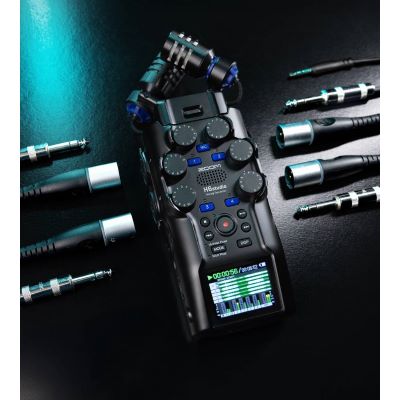

Connections and functions

The Zoom H6 Studio offers four XLR/TRS combo jacks with +48V phantom power, a stereo mini jack with plug-in power, a headphone output and a separate line out. It also has a modular capsule system (3.0) that supports various recording situations. In addition to classic capsules such as the XYH-6e, extensions and wireless modules can also be used.

Premium features include look-ahead limiter, high-pass filter, normalization and export functions, mono recording mode and variable playback speed. The recorder can also be used as an audio interface (6 in / 2 out) for Windows, macOS, iOS and Android via USB-C. At the same time, a backup can be saved on a microSD card.

Practical use and workflow

Thanks to wireless control via the Handy Control & Sync app, the H6 Studio can be conveniently operated remotely and synchronized via timecode. Stable RF shielding minimizes interference from smartphones and Wi-Fi signals, while elastically suspended microphones dampen handheld noise. The recorder is also designed to be barrier-free: For blind or visually impaired users, there are acoustic menu prompts in several languages.

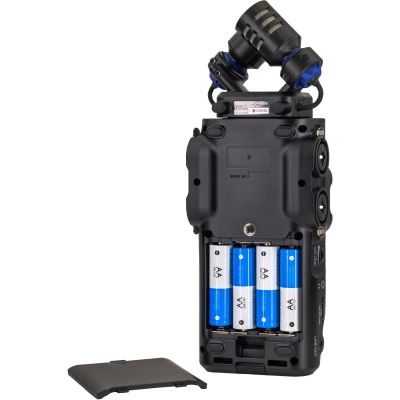

Power is supplied by four AA batteries, allowing up to 15 hours of recording. Alternatively, it can be operated using a mains adapter or USB power bank. Weighing just 477 g, the recorder remains compact and mobile.

Recommended purchase for the Zoom H6 Studio

The Zoom H6 Studio is a powerful, versatile recorder that is suitable for music productions as well as podcasts, interviews, film sound and streaming. Its combination of 32-bit float technology, flexible connections, expandable capsule system and mobile handling makes it a future-proof companion. If you need the highest sound quality in every situation, this recorder is an excellent choice.

Features:

• Large diaphragm microphones in XY arrangement
• Four studio-quality preamps (-127 dBu EIN)
• 32-bit float recording process with dedicated gain controls
• Dynamic range: 132 dB
• 19.4 mm microphone capsules, linear frequency response
• Sound pressure level up to 140 dB SPL
• XY microphones at a 90° angle, avoidance of phase cancellations
• Switchable formats: 32-bit float or 16/24-bit
• No risk of clipping, no need for post-processing
• 6 tracks + stereo mix (8 tracks at 96 kHz, 6 tracks at 192 kHz)
• Sampling rates: 44.1 - 192 kHz
• HF shielding against interference signals
• Elastically suspended microphones to minimize hand noise
• Look-ahead limiter against distortion
• Four XLR/TRS inputs with locking and +48V phantom power
• Support for +4 dBu line level
• Stereophonic mini jack socket with plug-in power
• Capsule system 3.0, compatible with SSH-6e, EXH-6e, WLM-1, XYH-6e
• WLM-1 wireless capsule (from 2026, up to 130 dB SPL)
• Real-time monitoring with level and waveform display
• Headphone output: 20 mW
• Line-out: 3.5 mm mini jack for cameras
• Internal loudspeaker: 250 mW
• USB audio interface with 6 inputs / 2 outputs
• Supports 32-bit float and 16/24 bit
• Simultaneous streaming and backup to microSD
• Wireless timecode with TCA-1 (from 2025)
• Remote control via ZOOM Handy Control & Sync app (iOS)
• Premium functions: Mono mode, high-pass filter, normalize, export to 24/16 bit WAV
• Variable playback speed (0.5-2.0 times) and A-B loops
• Output of a recording start tone for video synchronization
• Supports microSDHC/microSDXC up to 2 TB
• Battery operation up to 15 hours (4 × AA)
• Mains operation via USB or mains adapter (AD-17)
• Accessible menu navigation with voice output in 7 languages
• Optional accessory package (APH-6st): Carrying case, fur windscreen, mains adapter, USB-C cable
• Maximum of 8 tracks can be recorded simultaneously, 6 tracks can be played back
• Formats: WAV, BWF, iXML
• Bit depths: 16-bit, 24-bit, 32-bit float
• Display: 2.0-inch color LCD (320 × 240)
• USB-C interface, USB 2.0 high speed
• Audio interface: 6 In/2 Out (Multi), 2 In/2 Out (Stereo)
• Power consumption: max. 5 W
• Dimensions: 83 × 221 × 54.5 mm
• Weight (incl. batteries): 477 g

Specs:

• Color: Black
• Line Inputs: 5
• Line Outputs: 1
• Mic Inputs: 4
• digital Input: none
• digital Output: none
• Fader: 0
• Effect Processor: yes
• Set Offer: no
• Headphone Out: yes
• Rack Mountable: no
• Type: Audio Converter
• Theme: Recording and Studio
