Zoom H5 Audio Recorder

Zoom H5 Mobile Audio Recorder - Flexible 4-track recorder with interchangeable microphone capsules

The Zoom H5 is a powerful, portable audio recorder that packs professional features into a compact format. With the ability to record four audio tracks simultaneously and a modular system for interchangeable microphone capsules, the H5 is perfect for musicians, podcasters, filmmakers, journalists and anyone who needs high-quality recording on the go.

A versatile successor to the legendary H4n and little brother to the Zoom H6, the H5 builds on proven technology and enhances it with extensive connectivity, numerous recording features and a smart, robust design. Thanks to the included XYH-5 X/Y microphone capsule and compatibility with all Zoom capsules, the H5 is ready for any recording situation - from interviews to studio productions.

Zoom - audio technology for the highest demands

For years, Zoom has stood for innovative, portable recording devices that are characterized by ease of use, outstanding sound quality and a fair price-performance ratio. From the mobile musician to the podcaster to the filmmaker, Zoom offers tools that stand for creativity and efficiency. The H5 is a prime example of this philosophy: compact, modular, powerful - a true all-in-one studio for your pocket.

Technical details of the Zoom H5 Handy Recorder

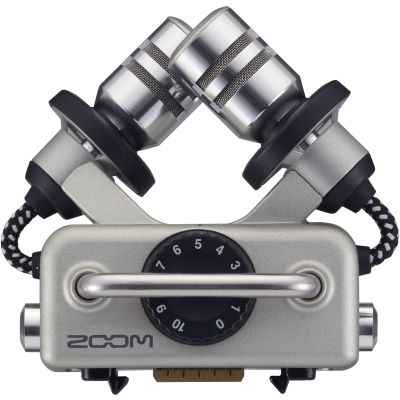

At the heart of the Zoom H5 is the interchangeable capsule system, which can be replaced with a single movement - similar to changing the lens on an SLR camera. The recorder is supplied with the XYH-5 X/Y capsule as standard. These shock-absorbing microphones reduce handling and operating noise while delivering a clear, spatial sound - ideal for stereo recordings of speech, music and ambient noise.

The ability to use all Zoom microphone capsules makes the H5 the most flexible model in its class. Whether mid/side capsule, shotgun microphone or additional XLR inputs - the H5 can be customized.

With its two XLR/TRS combo connectors, the H5 is ready for external microphones or line signals. Each input has its own gain potentiometer, phantom power (for condenser microphones) and a switchable -20 dB attenuation. A protective bar prevents unintentional twisting of the gain controls - a well thought-out detail for safe use on the move.

The recording quality is outstanding: the Zoom H5 records in WAV format (BWF-compatible) up to 24 bit/96 kHz or in space-saving MP3 formats. Data is stored on SD and SDHC cards up to 32 GB (not included). Thanks to the backlit LC display, everything remains easy to read even in poor lighting conditions.

Built-in effects such as high-pass filter, compressor and limiter are available for further sound shaping. Functions such as auto-record, pre-record and backup record ensure that no important recording is lost.

With the integrated USB audio interface, the H5 is a flexible tool for home recording, streaming or podcasting. It can be used as a stereo or multi-channel interface for PC, Mac and iPad - including a loop-back function for easy use in live streaming.

Recording functions and creative extras

The Zoom H5 is not only a recorder, but also a practical studio tool: With functions such as M/S decoding, internal mixdown, normalize, divide and trim, recordings can be edited directly in the device. A chromatic tuner and a metronome are also available - ideal for musicians in the rehearsal room or on the road.

Other highlights include the voice memo function, 99 markers per recording as well as loop playback and playback speed with pitch shifting - perfect for transcriptions or creative sound manipulation.

Power is supplied by two AA batteries (alkaline or NiMH), which provide a runtime of over 15 hours. For camera use, Zoom offers the optional HS-01 hot shoe adapter to securely mount the H5 on DSLR or camcorders.

Why the Zoom H5 is an excellent choice for creative professionals and beginners alike

The Zoom H5 Handy Recorder is a compact all-rounder with professional features that adapts effortlessly to a wide range of applications - from podcasts to interviews and music to film dubbing. Its flexible capsule structure, the high-quality microphone, the four recording tracks and the many editing functions make it the perfect partner for on the go and in the studio.

Anyone looking for a recorder that can do more than just record will find the perfect tool in the Zoom H5: robust, reliable, modular and absolutely convincing in terms of sound.

Features:

• Modular microphone capsule system - compatible with all Zoom capsules
• Includes shock-mount XYH-5 X/Y capsule
• 4 simultaneous recording tracks
• Large, backlit LC display
• Recording on SD/SDHC cards up to 32 GB
• WAV (up to 24 bit/96 kHz) and MP3 formats
• 2 XLR/TRS combo connectors with phantom power and -20 dB pad
• Individual gain controls with protection bar
• Plug-in power (2.5 V) for external microphones
• Effects: High-pass filter, compressor, limiter
• Auto-record, pre-record and backup record
• Integrated mixdown, normalize, divide, trim
• Tuner, metronome, M/S decoding
• USB audio interface (stereo & multi-channel) with loop-back
• Voice memo, marker function, A/B loop, variable playback
• Long runtime: over 15 hours with 2 AA batteries
• Optional hot shoe adapter for DSLR mounting

Specs:

• Color: Black
• Line Inputs: 2
• Line Outputs: 1
• Mic Inputs: 2
• digital Input: none
• digital Output: none
• Fader: 0
• Effect Processor: yes
• Set Offer: no
• Headphone Out: no
• Rack Mountable: no
• Type: Mobile Audio Recorder
• Theme: Recording and Studio

Instruction manual / Safety instructions:

• Manual (3.13 MB)
