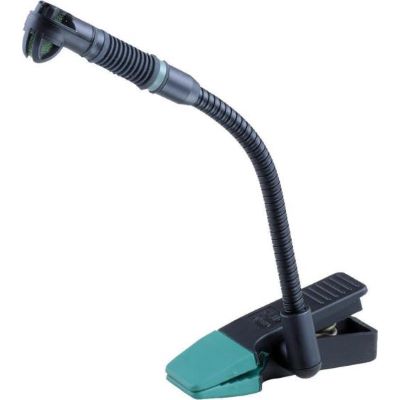

AKG C 419 PP Clipmikrofon

AKG C 419 PP



This condenser clip-on microphone has been designed specifi-cally for wind instruments including saxophone, trumpet, trom-bone, tuba, etc. The C 419 is also en excellent choice for per-cussions such as Udu drums, cajón, and frame drum, or as an alternative to the C 418 on the snare drum. A frequency-inde-pendent hypercardioid polar pattern reduces spillover from neighboring instruments to a minimum. A rubber coated clamp ensures easy attachment to the bell of a horn or the sound hole of a cajón, and a 4.3-inch (110-mm) adjustable gooseneck allows precise microphone alignment.

C 419 PP: For hardwire applications, with standard XLR connec-tor for phantom powering.

Specifications

Polar pattern: hypercardioid

Frequency range: 20 to 20,000 Hz

Sensitivity: 7 mV/Pa (-43 dBV)

Max. SPL: (k=1 %/3 %) 126/130 dB

Equivalent noise level: 30 dB-A

Signal/noise ratio (A-weighted): 63 dB

Impedance: 200 ohms

Recommended load impedance: >=1000 ohms

Supply voltage: 9 to 52 V phantom power to DIN 45596 or battery powering from B 29 L or AKG bodypack transmitters

Current consumption: approx. 2.2 mA

Connector: C 419 PP: 3-pin XLR/C 419 L: 3-pin mini XLR

Cable: C 419 PP: 3 m (10 ft.)/C 419 L: 1.5 m (5 ft.)

Finish: matte black

Dimensions: 180 x 35 mm / 7 x 1.4 in.

Net weight: C 419 PP: 141 g / 5.1 oz./C 419 L: 77 g / 3.1 oz.

Shipping weight: C 419 PP: 462 g / 16.8 oz./C 419 L: 398 g / 14.5 oz.
