AKG C 477 WR oc

AKG C 477 WR OC

/p>

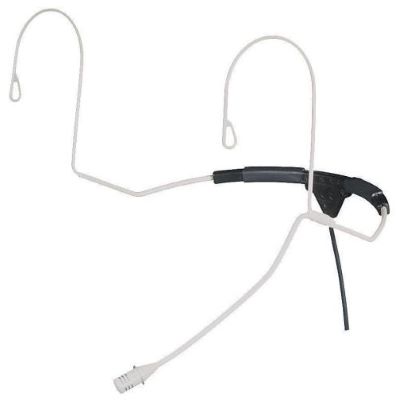

The new AKG C 477 WR has been designed for performers working hard in the heat of the spotlights. Owing to its small size it is the perfect choice for "hidden" use on stage or o n camera, where absolute mobility and excellent audio are required. Extremely small omnidirectional lavalier microphone. The patented dual-diaphragm capsule has been designed specifically to protect the transducer from moisture and perspiration. The capsule uses two vertical diaphragms mounted back to back and connected out of phase to cancel out mechanical and cable noise, etc. The C 477 WR uses a sturdy metal headband that ensures an exceptionally stable fit and provides increased output level as it allows the microphone to be placed very close to the user's mouth. Finally, you'll love the sound of this microphone and its compatibility with all popular wireless transmitters.

C 477 WR OC (stripped and tinned leads)

Specifications

- Polar pattern: omnidirectional

- Frequency range: 20 to 20,000 Hz

- Sensitivity: 8 mV/Pa (-42 dBV)

- Max. SPL: 133 dB (K=1%)

- Equivalent noise level: 26 dB-A

- Signal/noise ratio (A-weighted): 68 dB

- Impedance: 3500 ohms

- Recommended load impedance: >10,000 ohms

- Supply voltage: 1.5–12 V

- Current consumption: <0,6 mA

- Connector OC: stripped and tinned leads L: 3-pin mini XLR SH: Lemo connector

- Cable: 1.5 m

- Finish: various matte colors

- Dimensions: 180 x 130 x 85 mm / 7.1 x 5.2 x 3.3

- Net weight: 15 g / 0.5 oz.

- Shipping weight: 325 g / 11.5 oz.

- Patent(s): Pressure compensation cavity for condenser transducer (Patent no. AT 407.322, US 6.351.543)
