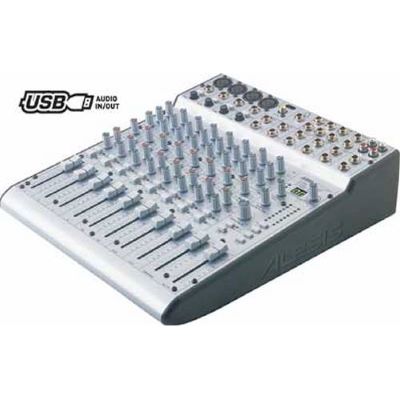

Alesis MultiMix 12 USB

MultiMix 12 USB Mixer

MultiMix USB mixers are the most compact, affordable, high-quality mixers with built-in 28-bit digital effects and digital

The Alesis MultiMix USB Mixers are a new line of compact mixers featuring low noise analog electronics and 100 great-sounding 28-bit digital effects. Studio-quality components and effects processing combine with rock-solid construction. The MultiMix mixers also have USB audio, which allows direct computer audio interfacing for 16-bit simultaneous stereo input and output using standard recording software.

MultiMix mixers are perfect for musicians and engineers needing a portable, flexible mixer with digital effects for sound reinforcement, rehearsals, studio recording, submixing, field recording, and digital audio/video computer workstation mixing.



SPECIFICATIONS

• CONTROL

  Front-panel channels (top down): 4 mic/line channels with 75Hz highpass filter switch and mic/line gain. All channels with 3-band EQ (high shelving at 12kHz, mid bandpass/reject at 2.5kHz, low shelving at 80Hz), aux send A (pre- or post-fader), aux send B (post-fader, onboard or external effects), pan or balance, pre-fader listen or solo-in-place, mute or alt 3/4, 60mm fader. Front-panel other: Effect section with selector plus clip and signal LEDs. Aux return A level, effects/aux return B level. Headphone/control room out level with mix, alt 3/4, 2-track, and alt 3/4 to mix switches. Solo mode, 2-track to mix switches. Stereo main and alt 3/4 60mm faders. Stereo 8-segment LED meters.
• CONNECTIONS

  USB 1.1 Stereo input/Output for PC and Mac. All 1/4" TRS except as noted: Mic in x 4 (XLR), mono line in x 4, stereo line in x 4, aux sends x 2, stereo aux returns x 2, stereo main out, stereo control room out, stereo alt 3/4 out, headphone out. 2-track stereo in and out (RCA).
• AUDIO SPECS

  Frequency response: 20Hz–22kHz ±0.5dB. Dynamic range: >100dB. Distortion: <0.01% THD+N (mic/line to L/R master out). Maximum gain: 60dB (mic in to L/R master out). Maximum output: +14dBu main L/R, +5dBV 2-track outs.
• POWER: 18V AC external transformer
• WEIGHT & DIMENSIONS: 3.75" x 11.25" x 13.25" (H x W x D)/7lbs.

Features

• 4 high-gain mic/line.
• 100 28-bit onboard preset effects including reverbs, delays, chorus, flanging, pitch and multi-effects
• 3-band EQ per channel with high/low shelving and mid band pass/reject
• Separate 1/4” balanced main and monitor outs, headphone out
• Integrated USB Port to transfer audio directly between the MultiMix USB mixer and your computer
• 16-bit stereo simultaneous inputs and outputs over USB
• No drivers required
• Plug and play operation under Windows and Mac
