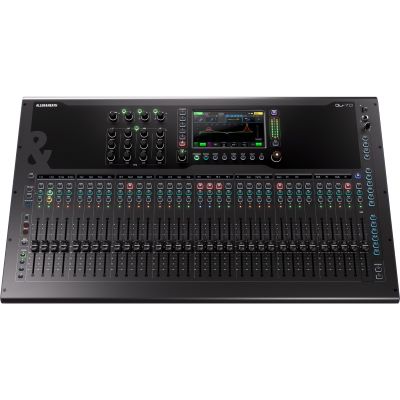

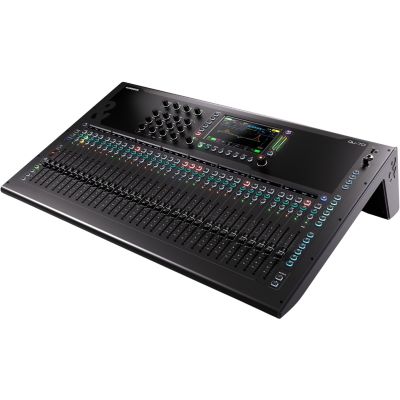

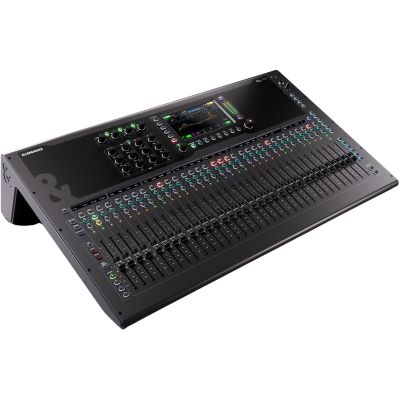

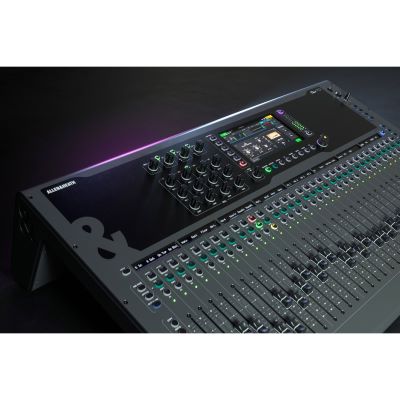

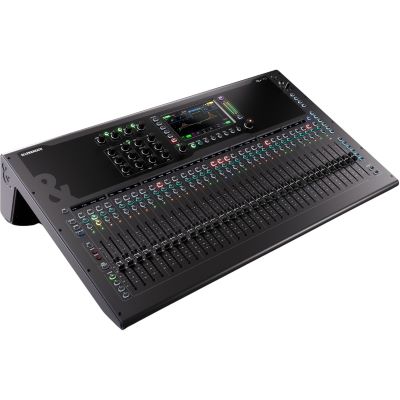

Allen & Heath QU-7D digital mixing console - The compact 96kHz mixer with Dante for the highest demands

Introduction: Allen & Heath QU-7D - The future of digital mixing in compact form

With the Allen & Heath QU-7D digital mixing console, the British manufacturer is expanding its successful QU series with the most powerful model with an integrated Dante interface. The QU-7D combines proven ease of use with the latest 96kHz technology, comprehensive system integration and outstanding audio quality. With Dante functionality, 33 motorized faders, 32 XLR/jack inputs and advanced DEEP processing features, the mixer is aimed at professional users who require maximum control, flexibility and fidelity in a compact format.

Whether at live events, in fixed installations, conferences or in the studio - the QU-7D offers an intuitive operating concept, innovative assistance tools and scalable system connections that make it a future-proof all-rounder in professional audio technology.

Manufacturer: Allen & Heath - In a class of its own in the digital audio world

For decades, Allen & Heath has stood for the highest quality in the development and manufacture of professional mixing consoles. With a focus on innovation, user-friendliness and performance, the company has made a name for itself worldwide - from tour productions and theaters to installations and broadcasting. The QU series combines the best features from the high-end dLive platform in a compact, easy-to-use form - and with the QU-7D, this series is now even more versatile and powerful.

Technical details: Maximum performance in the smallest space

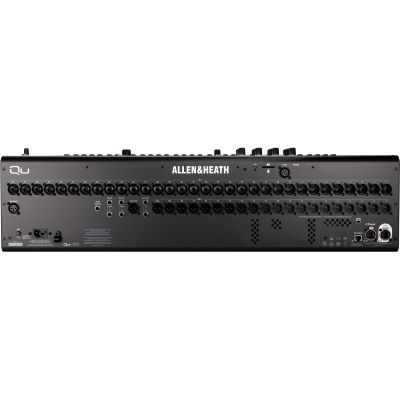

Inside the Allen & Heath QU-7D is a 96kHz-capable FPGA core that ensures extremely precise audio processing with minimal latency. The mixer offers 36 input channels (32x mono/linkbar, 2x stereo, 1x talkback), 12 mix busses (6x mono, 6x stereo), 4 matrix outputs and a stereo main out. A total of 32 XLR/jack combo inputs, 2 stereo line inputs (TRS), 20 XLR outputs, 2 TRS outputs and an AES3 digital output are available.

The integrated Dante interface (16x16 @48/96kHz) enables seamless integration into larger network systems - ideal for complex audio infrastructures, broadcast environments or networked installations. With the 128x128 SLink port, the QU-7D can also be combined with the Allen & Heath Everything I/O family (e.g. AR2412, AB168), making it flexibly expandable.

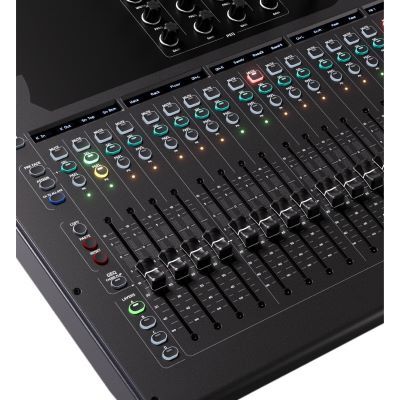

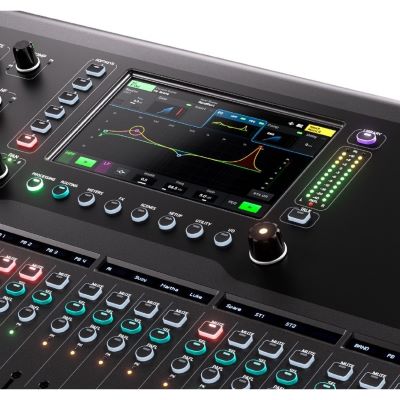

Precise control is provided by a 7-inch capacitive touchscreen, supplemented by 33 motorized 100mm faders on four freely configurable levels. Eight freely assignable SoftKeys and the chromatic channel level LEDs facilitate orientation in live operation and in everyday studio life.

Versatile recording and playback options

The QU-7D offers comprehensive recording options: 32x32 tracks can be transferred directly to a DAW or digital recording device via the integrated USB-C audio interface. Alternatively, multi-channel recordings with up to 16x16 tracks at 96kHz or 32x32 at 48kHz can be made directly to an SD card - without the need for an external computer. A USB-A connection is also available for simple stereo recording or data backup.

These functions make the mixer a versatile tool for sound engineers who want to realize both live recordings and studio productions with one device.

Optimized workflow with DEEP Processing & assistance functions

The QU-7D is DEEP Processing ready and brings high-quality channel strips, compressors and EQs directly to the QU platform - without external DSPs or plug-ins. Taken from the dLive series, these sound processing tools can be activated on a channel-by-channel basis and offer comprehensive control over the sound - perfect for fine-tuned mixes and live mixing at a professional level.

The integrated 32-channel Automatic Mic Mixer (AMM) is ideal for conferences, panel discussions and voice broadcasting. It works latency-free and automatically ensures clear speech intelligibility with several microphones open at the same time. This workflow is supported by intelligent assistance tools such as the Gain Assistant and the Feedback Assistant, which speed up the setup and optimize the sound check - a real advantage for time-critical productions.

Recommended buy: The QU-7D - Highest audio quality and flexibility in one device

The Allen & Heath QU-7D digital mixing console is aimed at professional users who demand maximum control, expandable system architecture and first-class sound quality. With its Dante connectivity, extensive I/O features, DEEP processing, assistance functions and intuitive touchscreen interface, the QU-7D is perfect for touring, installations, broadcast, studios and demanding live productions.

If you are looking for a compact, scalable and future-proof digital mixing console that is also convincing in complex audio environments, the QU-7D is the ideal solution - with premium technology, robust processing and an intuitive user interface that leaves nothing to be desired.

Features:

• 96kHz FPGA core for high-resolution audio processing
• 36 mixing channels (32x mono/linkbar, 2x stereo, 1x talkback)
• 12x mix busses (6x mono, 6x stereo), 4x matrix outputs, stereo main out
• 32x XLR/jack 'Combi' microphone/line input sockets
• 2x stereo line inputs (2x TRS each)
• 20x XLR outputs
• 2x TRS outputs
• 1x AES3 stereo digital output
• 16x16 Dante interface @48/96kHz
• 128x128 SLink port for Everything I/O integration
• 6x multi FX engines with dedicated return channels
• 7" capacitive touchscreen with redesigned user interface
• 33x 100mm motorized faders on 4 freely configurable levels
• 8x freely assignable SoftKeys
• Configurable chromatic channel meter LEDs
• USB-C audio interface for 32x32 multi-channel recording/playback
• USB-A port for stereo recording and data transfer
• SD card recording: 16x16 @96kHz, 32x32 @48kHz
• DEEP Processing with dLive-compatible add-ons
• Integrated 32-channel Automatic Mic Mixer (AMM)
• Feedback and gain wizards for quick setup
• 12V lamp connection
• Configurable single/double footswitch connection
• RJ45 network connection
• Remote control via free apps (Windows, macOS, iOS, Android)
• IEC power connection with worldwide power supply

Specs:

• Type: Mixer
• Theme: PA and Sonication
