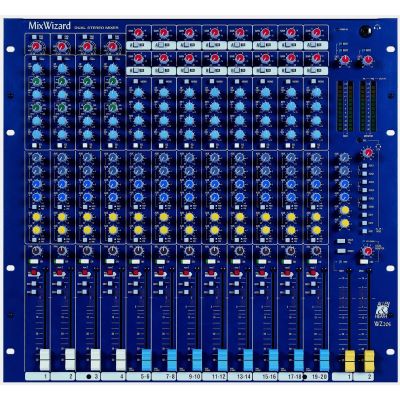

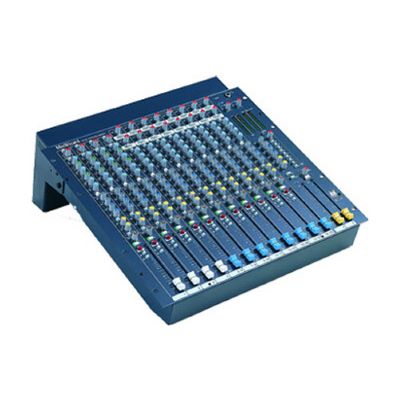

Allen & Heath WZ3 20S

Desk / rack mount stereo source console

The WZ20S was a truly ‘customer-led’ project. We were getting a lot of emails and calls from small broadcast outfits, keyboard fanatics and hire companies who had lots of stereo sources to mix, but couldn’t find a good quality console that could do the job without costing an absolute fortune.

Features

• 4 mic/line mono inputs - with

  balanced XLR/TRS jack and

  direct output
• 100mm Faders - throughout
• 8 dual stereo input channels - with

  independent gain and ‘on’ switching

  provide an amazing 16 stereo inputs

  to the mix. Up to 4 stereo RIAA

  preamps maybe optionally fitted for

  working with turntables
• 6 auxiliary sends - switchable

  pre/post, all can be accessed at

  the same time
• 2 stereo returns on TRS jack
• Comprehensive 4-band EQ with 2

  sweepable mids
• 2 independent stereo mix busses -

  each with inserts, fader, and metering.

  Mix1 can also be set up as a

  subgroup feeding Mix2. Mix2 includes

  a second stereo out on TRS jack and

  a mono sum out on XLR. This output

  flexibility is particularly useful for

  performing two submixing tasks with

  one mixer, or for providing 2 stereo

  feeds to the main FOH console
• Sys-Link I option - for

  connection to ALLEN&HEATH

  Sys-Link compatible consoles
• Fader start - kit can be provided

  as option
