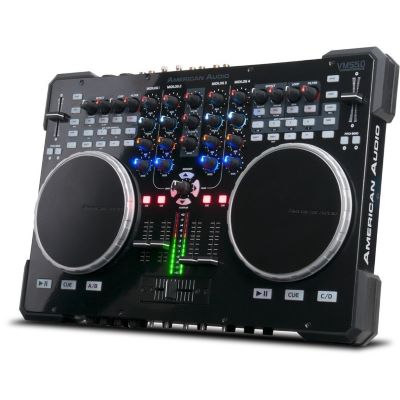

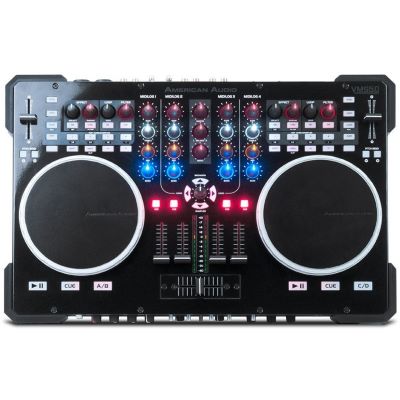

American Audio VMS5 DJ Controller

The American Audio VMS5 is one of the most comprehensive DJ Controller ever designed for performance minded DJs looking for a solid, all-in-one Midi Controller to control their software and music from their laptop (4 Deck and 2 Deck DVS!), plus have option to use the stand alone mixer as a tradition analog mixer with 4 line inputs, 2 Phono inputs and 2 Microphone inputs. In addition, some general features include 4 USB / Analog selectable Midilog (Midi & Analog) channels, gain/treble/mid/bass EQ on all MIDILOG channels.

Pro Features include: The Inno-fader compatibility (the VMS Series was the first controls to offer this) with curve control and assign and reverse, XLR master output with Balance & Booth output. DSP D-Core inside with studio quality audio engineerinp + pro stage microphone circuitry. It has 34 assignable rotary controllers, 4 assignable rotary encoders, 50 MIDI buttons with LED illuminations, including 18 with dual blue/red LEDs.

VMS 5 has 62 Assignable MIDI buttons and switches, dual 2000 point resolution touch sensitive turntable scratch controls, dual MIDI Controls on all buttons and switches, 5 assignable linear fader controllers, two 10-bit resolutions pitch sliders, and multi-functional rotary browser with 4 function buttons.

Features:

• 6 Channel Stand Alone Mixer with full Midi capability
• New Larger Platters
• New Browser Section
• New Easy View LED Mixer section
• Improved Button Layout
• Virtual DJ 8 LE included with new software features
• User configurable sound card, DVS Mode or 4-Deck Mode

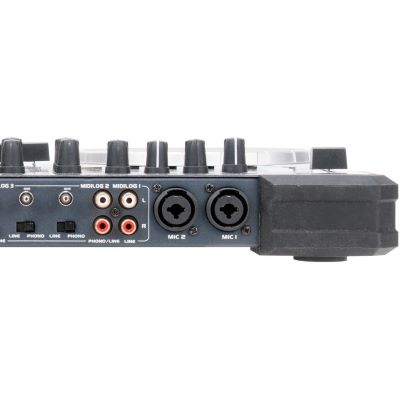

• 2x Pro Quality Microphone XLR Combo Mic inputs with 3 Band EQ
• Innofader cross fader compatible (sold separately)
• Midi Controller with 4 USB / Analog selectable MIDILOG™ (Midi & Analog) channels
• All audio control faders, knobs, switches, and buttons smoothed - eliminates popping, wiper noise, and zipper noise
• On/Off soft startup and turnoff
• Gain/treble/mid/bass EQ on all MIDILOG™ channels
• 2 phono/line selectable analog channels
• Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
• On/off cueing on each MIDILOG™ channel
• Split cueing headphones with rotary mix control
• Illuminated rubber knobs for ease of use in dark environments
• Solid 1.6mm thick faceplate for extra durability
• Panel mounted rotary knobs
• Full analog mixer operation if the computer crashes or with external power supply
• Innofader replaceable crossfader compatible (sold separately)
• Crossfader curve control
• Crossfader assign and reverse
• Q-Start crossfader controlled startup for 2 external audio players
• Master and Booth outputs with L/R balance
• Balanced Master outputs
• 12 position stereo master output VU meter
• Dimensions (LxWxH): 19”x12.75”x1.5” / 482x325x40mm
• Weight: 13 lbs. / 6 kg.
• 2 Phono, 4 Line, 4 USB, 2 Microphone inputs

MIDI FEATURES:

• Built-in mouse pad
• Long life MIDI assignable touch strips
• Two 10- bit resolution pitch sliders
• 62 assignable MIDI buttons and switches
• 50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
• 4 assignable rotary encoders
• 34 assignable rotary controllers
• 5 assignable linear fader controllers
• Dual MIDI controls on all buttons and switches
• Dual 2000 point resolution touch sensitive turntable scratch controllers

AUDIO FEATURES:

• 24-bit 48 kHz analog audio
• 16-bit 44.1kHz USB audio
• 10-bit resolution on all analog fader controls
• THD <0.1%*
• Channel separation >60dB*
• S/N ratio >85dB*
• Analog channel audio latency < 1 msec
• Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog channels or 2 in 8 out mode for running 4 software channels and master recording
• 2 msec response on all buttons
• 4 msec response on all rotary and linear faders
• 1 msec USB latency

Specs:

• Color: Black
• USB-MIDI: USB and MIDI
• Deck Support: 4
• Sound Card: yes
• Jogwheel: yes
• Set Offer: no
• Type: DJ Hardware / Controller
• Theme: DJ Equipment
