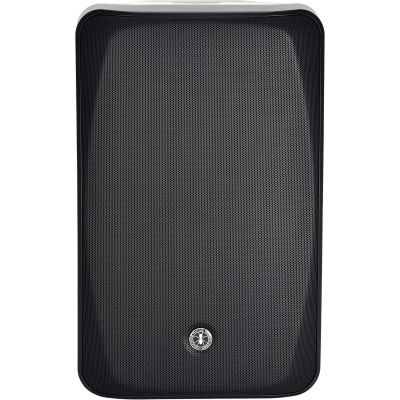

ANT BBM 8

The ANT BBM 8 is a compact installation loudspeaker which can be easily mounted on the wall with optional accessories (BBM WB8U or BBM-SA80). The loudspeaker is equipped with 2 INPUT channels with separate level management: CH 1 Mic/Line (selectable with shift key) with jack and XLR-F connector and CH 2 with mini jack connector. The OUT channel (jack) allows the connection to another BBM loudspeaker.

Features:

• Structure: Bass reflex, 2-way
• LF: 8" custom woofer 1" voice coil
• HF: 1" neodymium dome tweeter
• Amplifier type: Class D (LF) + Class A/B (HF)
• Peak Power: 120 Watt
• Frequency response: 55 Hz - 20 kHz
• SPL - Max: 112 dB

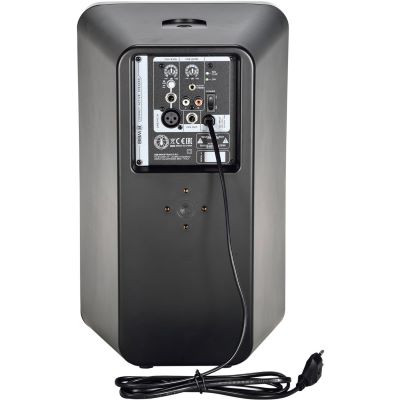

• Inputs/Outputs: CH1 MIC: XLR Female; CH1 LINE: 6.3mm Jack (TRS); CH2 LINE: 3.5mm Mini Jack (Stereo) + RCA/Cinch; Lineout: 6.3mm Jack (TRS)
• Controls: CH1: Lautst‰rke, CH1: Mic/Line switch, CH2: Lautst‰rke
• Power supply: 220-240V ~ 50-60Hz
• Fuse: T800mA L 250V
• Power consumption: 70 Watt
• Flying points: 2 x M6 top and bottom for U-brackets BBM-WB3U; 4 x M5 rear for wall or ceiling mounting set BBM-358Y and stand adapter set with brackets BBM-SA30
• Material: Housing: ABS plastic
• Grill: steel grid
• Dimensions (width x height x depth): 250mm x 400mm x 251mm
• Weight: 6,3Kg

Specs:

• Power: 120 W
• Housing Material: Plastic
• Pole Mount: no
• Airworthy: yes
• Woofer: 1 x 8
• Tweeter: 1 x 1
• Number of channels: 2
• Set Offer: no
• Bluetooth: No
• Type: Full Range Speaker
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (1.95 MB)
