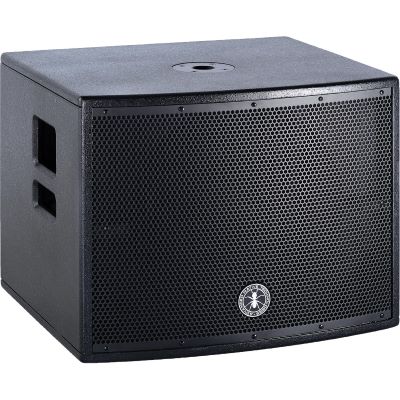

ANT Greenhead 15 S

The Greenhead 15S is a subwoofer with a 15 inch woofer and a maximum output of 1200 watts. It complements each two way speaker and gives it the right depth.

Features:

• Robust wooden housing in compact design
• 15" woofer
• Integrated stereo crossover
• GND-Lift, Link/X-Over and polarity switchable
• 1200 Watt Peak Active
• Transmission range: 42Hz to 120 Hz
• 126 dB Max SPL
• 36mm high stand flange

Technical data:

• LF 15" Custom Ferrite - 2.5" V.C.
• Frequency range 42Hz - 120Hz (-10 dB)
• Max SPL 126 dB
• Peak power 1200 W

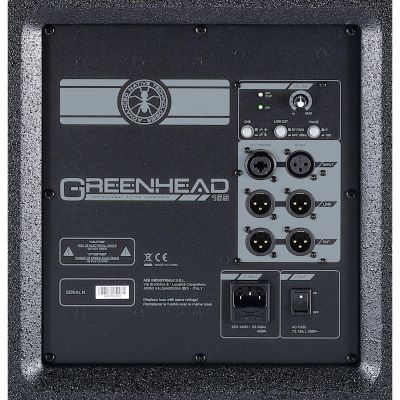

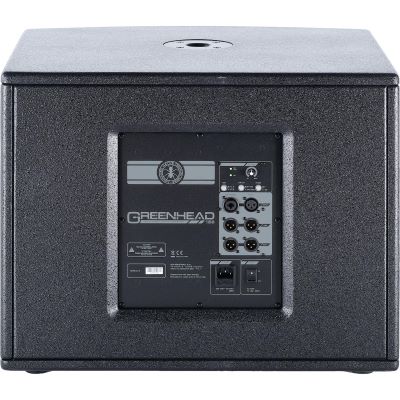

• I/O Connectors Line In XLR + 6.35mm Jack
• Link Out L/R: 2 x XLR
• Output: 2 x XLR
• Controller VOLUME Controller GND LIFT, LOW CUT, PHASE Switch
• Housing 18 mm plywood
• Dimensions (WxHxD) 580 x 455 x 511 mm
• Weight 25,3 Kg

Specs:

• Power: 1200 W
• Housing Material: Wood
• Pole Mount: yes
• Woofer: 1 x 15
• Set Offer: no
• Type: Subwoofer
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (1.64 MB)
