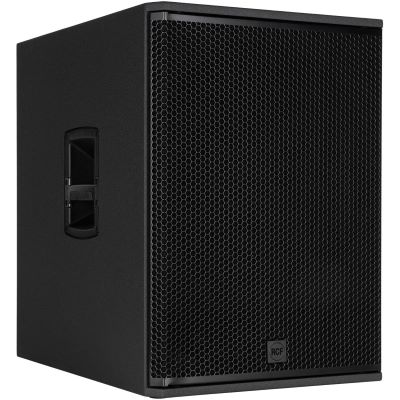

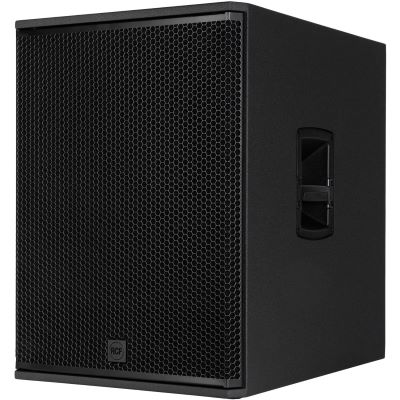

RCF SUB 8003-AS MK3 aktiver 18" Bassreflex-Subwoofer

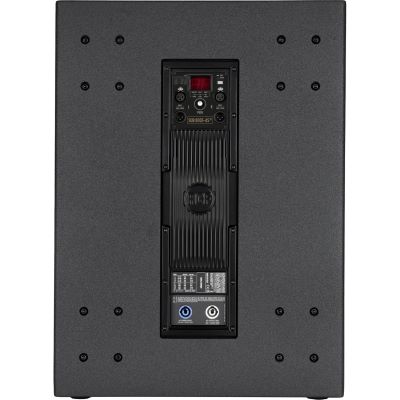

The SUB 8003-AS MK3 is an active subwoofer with extended bass response and integrated DSP. It has a compact housing, an advanced 18-inch sound transducer with ceramic magnets and a 4-inch voice coil. The integrated power amplifier module provides up to 2200 watts of power for sound pressure levels of up to 135 dB. The patented Bass Motion Control technology ensures extremely linear frequency reproduction and outstanding sound fidelity. Controls for presets, crossover frequency, polarity switching, cardioid dispersion and output delay are available on the rear panel. The robust wooden cabinet with scratch-resistant polyurea coating is designed for touring and is lightweight and stackable for quick and easy assembly and disassembly. Designed specifically for demanding applications, the SUB 8003-AS MK3 is the perfect workhorse for music professionals.

Legendary subwoofers

RCF subwoofers are the first choice for many sound engineers because they deliver very high sound pressure levels even at the lowest frequencies, are active yet more compact than competing products, have internal delay control and cardioid options, and offer long-term reliability and impressive output power in relation to their size. Your audience can look forward to a moving and immersive DJ or live music experience.

Industry leading subwoofers

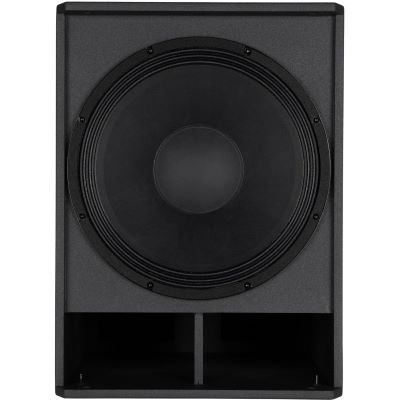

RCF's lightweight subwoofers are characterized by impressive performance. For RCF Precision Transducers, our engineering team has developed specific new magnet sizes and molds to optimize magnetic flux while maintaining low weight. The magnetic circuit topology with 18-inch driver and 4-inch voice coil ensures top performance in three key areas: It achieves high integrity and uniformity of magnetic flux in the air gap, extremely low distortion, and efficient integration of the magnetic circuit with minimal weight. The optimized T-pole design reduces the modulation of the magnetic flux in the air gap to a minimum at typical voice coil excursion.

Power that moves

The most powerful power amplifier in its class. RCF transducers are constantly being optimized - and so are the power amplifiers. With 2200 W of power, our Class D power amplifier achieves impressive sound pressure levels with ultra-fast attack and natural transient reproduction with very low heat loss. The power amplifier is so energy efficient that it does not require a ventilation fan. Instead, it is mounted at the rear of the enclosure on a fixed heat exchanger with no moving parts. The stereo signal input path with crossover has been optimized for low distortion and features an advanced limiter for added safety, preserving the sound characteristics of the input signal at all levels. RCF power amplifiers are standardized for maximum safety (EN62368-1) and are powered by a highly efficient and ultra-light switching power supply.

Workhorse for touring

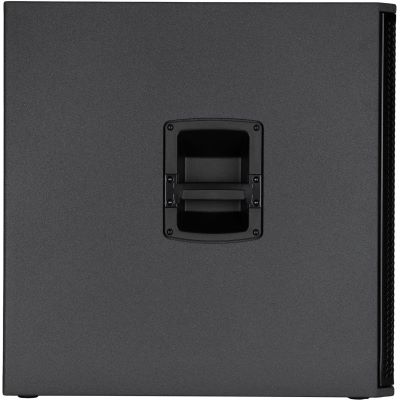

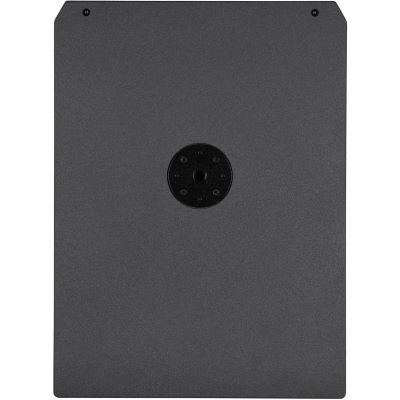

The RCF cabinets are made of high-quality hardwood multiplex with a black polyurea coating. The subwoofers are stackable and lightweight and can be easily assembled and disassembled thanks to the ergonomically shaped handles. High stand flanges on the top and on one side allow the speaker to be used in various configurations. The powder-coated front grille is lined with acoustic foam on the inside, which also protects the speakers from dust.

Features:

• RCF - SUB 8003-AS MK3 active 18" bass reflex subwoofer
• Power: 2200 W
• 135 dB maximum sound pressure level
• Transmission range 35 Hz - 120 Hz
• 18-inch woofer, 4-inch voice coil
• Touring enclosure made from birch plywood
• Adjustable gain, crossover frequency, cardioid mode and delay
• Stereo XLR input, stereo XLR output

Specs:

• Power: 2200 W
• Housing Material: Wood
• Pole Mount: yes
• Woofer: 1 x 18
• Set Offer: no
• Type: Subwoofer
• Theme: PA and Sonication
