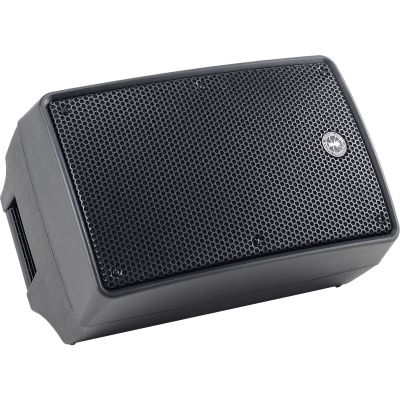

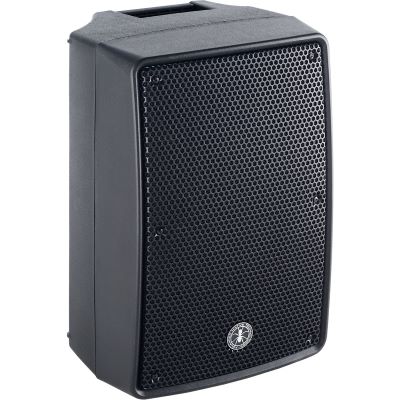

ANT Redfire 10

The Redfire 10 is an active two way speaker with a 10 inch woofer and an output of 500 watts. The housing of the Redfire is made of plastic and is particularly resistant.

Features:

• 2 separately adjustable mic/line inputs + aux (2 x XLR/jack)
• 3.5mm mini stereo jack
• 2-band filter
• Lineout (XLR)
• 10" woofer
• 500 Watt Peak Bi-Amped, active
• Transmission range: 60Hz to 20 kHz
• 120 dB Max SPL
• 321 mm x 505 mm x 307 mm (width, height, depth); 12 Kg
• 36mm poles with locking screw
• Integrated flying points
• Insensitive plastic housing

Technical data:

• 2-way box
• LF 10" custom speaker - 1.5" V.C.
• HF 1" driver - 1" V.C.
• Frequency range 60 Hz - 20 kHz
• Max SPL 120 dB
• Peak power 500 W
• I/O connector MIC: Combo
• LINE IN: XLR-F + 6,35mm jack (1/4")
• AUX IN: 3,5mm mini stereo jack
• OUTPUT: XLR-M

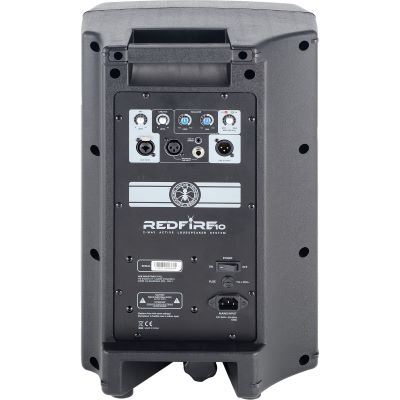

• MIC LEVEL, LINE/AUX LEVEL, LOW EQ, HIGH EQ, MASTER LEVEL controls
• Carrying system 2 x M8 - bottom
• Housing Polypropylene
• Dimensions (WxHxD) 321 x 505 x 307 mm
• Weight 12 Kg

Specs:

• Power: 500 W
• Housing Material: Plastic
• Pole Mount: yes
• Airworthy: yes
• Woofer: 1 x 10
• Tweeter: 1 x 1
• Number of channels: 2
• Set Offer: no
• Bluetooth: No
• Type: Full Range Speaker
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (2.56 MB)
