Apart Audio OVO5T-W Wandlautsrecher 100V/30W

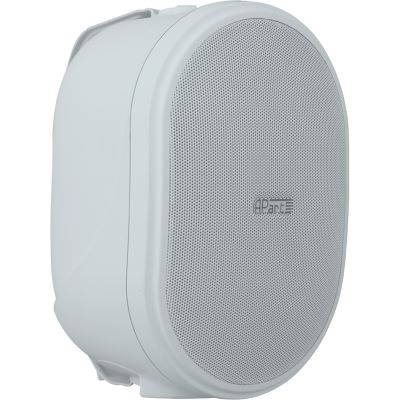

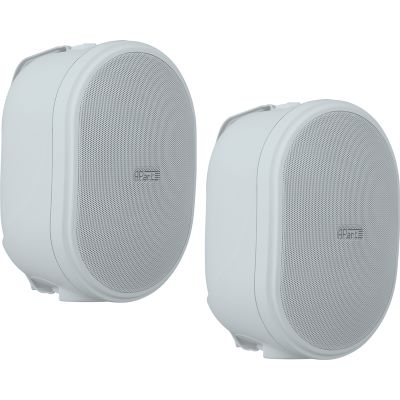

The Apart Audio OVO5T-W wall speaker is a white 80 W 100 V 2-way installation speaker. The small loudspeaker has a timeless design and fits in really every interior and every furnishing style. The bracket included in the scope of delivery allows flexible positioning. At the same time, the ABS plastic housing ensures years of trouble-free operation. The Quick-Fit cable clamps ensure quick and easy installation. Affordable, but without compromising sound quality. In short, typically Apart!

Features:

• Standard for inexpensive 100 V loudspeakers
• 5 1/4" woofer + 1" tweeter
• 80 W music power at 16 Ohm
• 100 V transformer with 3 - 6 - 15 - 30 W taps
• Mounting with bracket or free-standing placement
• Back plate for horizontal mounting included in scope of delivery

Technical data:

• Connections: LS pressure terminals
• Impedance: 16 Ohm, 100 V transformer
• Power rating / output: 80 W /16 Ohm, taps 3 - 6 - 15 - 30 W
• Equipping: 5 1/4" woofer, 1" tweeter
• SPL, Sensitivity (1W /1m): 91 dB, 110 db (max)
• Frequency response: 70Hz - 20 kHz
• Design: 2-way, ABS plastic housing, steel front grille, IP40
• Dimensions (H x W x D): 260 x 170 x 180 mm
• weight: 4,9 kg
• Directional characteristic: 1kHz = 180°, 4kHz = 90°, 8kHz = 70
• Colour: White

Specs:

• Color: White
• Set Offer: no
• Power: 80 W
• 100V - Technique: yes
• Woofer: 1 x 5,25
• Tweeter: 1 x 1
• Type: Wall-mounted Loudspeaker
• Theme: Installation
