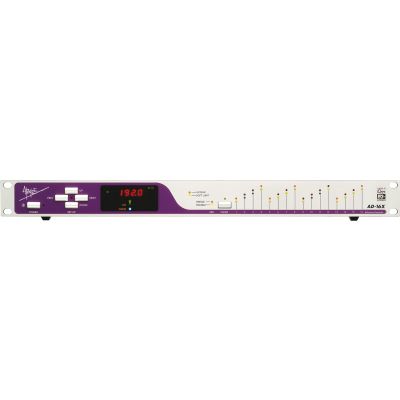

Apogee AD-16-X

16-channel, 192kHz A/D Converter

The AD-16X and the DA-16X, Apogee’s latest and most advanced conversion systems, take the legendary quality of Apogee a huge step forward. Features such as a redesigned power supply, standard 192kHz sampling rates, the C777 clocking technology found in Big Ben, and optional Pro Tools HD and FireWire expansion cards, make the AD & DA-16X the most powerful and flexible conversion combination ever. And, not only does the X-Series hardware offer unequaled, groundbreaking technology but it makes it available at a fraction of the cost associated with previous, premium Apogee gear.



Features

• 16 channels of premium 24-bit AD conversion
•  Sample rates up to 192k
• 16 channels of AES, ADAT/SMUX Output
• Word Clock I/O
• Optional HD card for direct connection to ProTools HD
• Optional S800 FireWire card capable of sample rates up to 192k, compatible with OS X/Windows XP and all popular DAW's
• All option cards (X-FireWire and X-HD) facilitate connection of multiple units
•  "Soft Limit" for maximum digital level without overs (can be applied to a single channel or all channels)
•  "UV22HR" for superior dither of high resolution audio to 16-bit (can be applied to a channel pair or all channels)
• Direct Digital Synthesis (DDS) using Big Ben's C777 Clock Technology up to 192kHz
• Adaptive Loop Filtering (ALF) for optimum clock performance and minimum jitter
•  Support for AES double wire and SMUX formats
• Post A/D conversion level monitoring
• Intuitive front panel calibration
• Word Clock termination switch

Specifications

• INPUTS

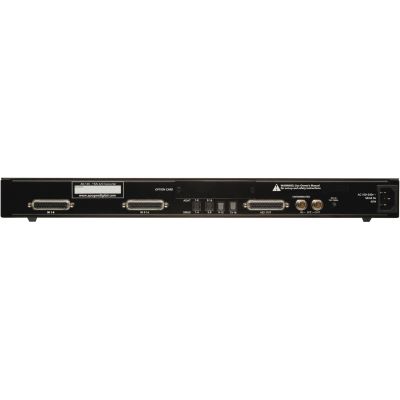

  Analog in 1-8 Balanced, DSUB 25pin connector

  Analog in 9-16 Balanced, DSUB 25pin connector

  WC in: BNC 75 ohm with switchable termination
• OUTPUTS

  AES-EBU out x 8, transformer balanced, DSUB 25pin connector (192k single wide compatible)

  Optical: toslink x 4, supporting ADAT and SMUX protocol

  WC out: BNC 75 ohm
• OPTION SLOT

  One x-type card can be installed, for Firewire, HD and or other future format connectivity.
• SPECS

  Sample rates internal: 44.1/48/88.2/96/176.4/192k

  Sample rates external: 44.1/48/88.2/96/176.4/192k +/- 10%

  Frequency response at 44.1 k : 5 - 20.000 Hz (+/- .2 dB)

  Analog levels: 6 to 24dBu max through digital gain adjustment. (Compatible with -10dBV levels)

  THD+N: -110 dB

  Dynamic range: 120 dB A weighted

  Power: 100 -240 VAC, 50 - 60 Hz, 65 Watt
