ARP Odyssey Modul Rev3

Since its appearance in 1972, the ARP Odyssey has been loved by countless musicians as a classic analog synthesizer. Forty years later, in 2015, with the advisory assistance of David Friend, co-founder of the ARP Instruments company, KORG resurrected the ARP ODYSSEY with a complete reproduction of the ARP Odyssey’s original circuitry. The ARP sound, which continues to be envied as an iconic analog synthesizer, was once again back in the hands of today's musicians. Now, KORG has further broadened the reach of the ARP ODYSSEY in today's world by releasing a new model.

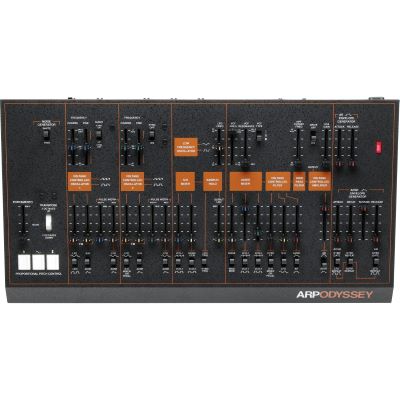

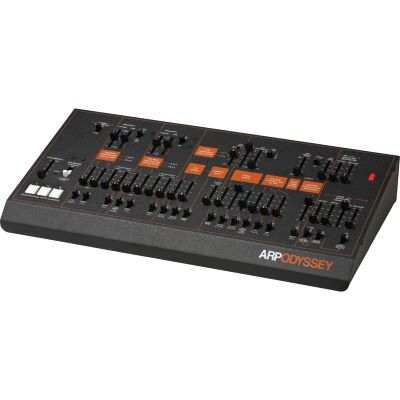

The ARP ODYSSEY Module is a keyboard-less ARP ODYSSEY with the very same analog synthesis circuitry that completely reproduces the original. To fit perfectly in today's DAW-centric music production environments, we provide it in a more compact module form. The black and orange Rev3 reproduces traditional styling in a cutting-edge tabletop body. The real ARP sound that transcends history is once again available to the world.

The ARP ODYSSEY Module is a tabletop analog synth module based on KORG's revived ARP ODYSSEY. In its compact, keyboard-less body, it contains the exact same circuitry as the original, making it even easier for you to obtain that rich analog sound that only a genuine ARP ODYSSEY can produce.

By adding the ARP ODYSSEY Module to their setup, DAW users can enhance their production environment with powerful analog sound that cannot be obtained from any plugin. You can also perform in conjunction with a sequencer such as the KORG SQ-1. If you're a player with a keyboard that you prefer, you can connect the ARP ODYSSEY Module via MIDI to your favorite keyboard and play it to your heart's content. In addition, the ARP ODYSSEY Module newly supports MIDI pitch bend.

The ARP Odyssey is known best for its sharp and biting tone, and the rich possibilities of modulation that allow an incredible variety of sounds. The ARP ODYSSEY Module is equipped with the very same circuitry as the ARP ODYSSEY, which itself is a perfect replica of the original unit, developed under the supervision of the ARP Instruments company's co-founder David Friend. Its module-type design invites the user into an even deeper world of sound design.

Features:

• 2VCO. The duophonic design allows two different pitches to sound when you play two notes.
• The high degree of pitch stability for which the ARP Odyssey was remarkable in its time has been perfectly reproduced.
• Pitch is variable over a wide range of 20 Hz - -2 kHz.
• Pitch modulation and pulse width modulation can be controlled.
• Oscillator sync provides sharp, great-sounding overtones extending into a high range.
• Noise generator provides two noise types: white and pink
• Powerful LFO can be used as a modulation source for the oscillator or filter, or as a trigger source for sample & hold.
• Ring modulator generates metallic sounds with rich overtones.
• The distinctive S/H MIXER lets you easily create sample & hold sounds by using the oscillator or noise generator as a source that's triggered by the LFO or keyboard.
• A wide variety of modulation sources such as S/H, LFO, ADSR, and AR can be used to modulate the filter.
• A high-pass filter is provided following the low-pass filter, giving you even broader sound design possibilities.
• A new function, the DRIVE switch generates extreme and aggressive sounds.
• VCA GAIN slider leaves the note sustaining. Ideal for sound design.
• Envelope generator with two types: ADSR and AR. This can be used not only for the VCA but also to modulate the filter or oscillator.
• Maximum Polyphony: 2 voices for duophonic; normally monophonic
• Controllers Transpose Positions: 2 octaves down, normal, 2 octave up
• Proportional Pitch Control: b (Pitch down) Pad: about -2 / 3 octave; - (Modulation) Pad; # (Pitch-up) Pad: about +2 / 3 octave
• Noise Generator: Noise Spectrum Types (white and pink)
• Portamento: Maximum Speed: about 0.01 msec./oct; Minimum Speed: about 1.5 sec./oct
• Waveforms: Sawtooth, Square, Pluse (Dynamic Pluse)
• Frequency Range (Voltage Controlled Oscillator): VCO-1 in low freq. mode, 0.2 Hz – 20 Hz: VCO-1 and VCO-2 (audio range) about 20 Hz – 20 kHz
• Warm Up Drift: 1/30 semitone from turn on max
• Pulse Width: 50 % – 5 %
• Pulse Width Modulation: ADSR, +45 %; LFO, +15 %
• Voltage Controlled Response: 1 V/oct
• Maximum Frequency Shifts: LFO sin wave, +1/2 oct.; LFO square wave, +1.5 oct.; ADSR, +9 oct.; S/H, +2 oct.
• VCF (Voltage Controlled Filter) Types: Low pass (I: 12 dB/oct., II III: 24 dB/oct.)
• VFC Frequency Range: 16 Hz - 16 kHz
• VFC Maximum Usable Q: 30
• VFC Resonance: 1/2 - self oscillate
• VFC Voltage Controlled Response: C3 key (left edge): 0 V; C6 key (right edge): 3 V
• VCA (Voltage Controlled Amplifier) Dynamic Range: 80 dB
• Ring Modulator Type: Digital
• Ring Modulator Input Signal: VCO-1, VCO-2 (square wave)
• Sample & Hold Command Sources: Keyboard or LFO trigger
• Sampled Signals: VCO-1 sawtooth wave and square wave, VCO-2 square wave and pink noise
• ADSR Envelope Generator: Attack Time: 5 msec. - 5 sec.; Decay Time: 10 msec. - 8 sec.; Sutatin Level: 0 - 100 % or Peak; Release Time: 15 msec. - 10 sec.
• AR Envelope Generator: Attack Time: 5 msec. - 5 sec.; Release Time: 10 msec. - 8 sec.

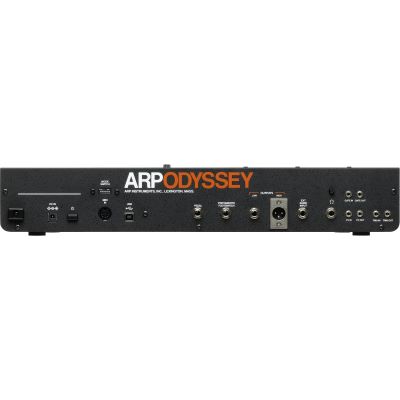

• Control Input Jacks: Pedal: 6.3 mm monaural phone jack; Portamento Foot Switch: 6.3 mm monaural phone jack
• Audio Output Jacks LOW: Connector: 6.3 mm monaural phone jack; Maximum Output Level: -20 dBu@ 10 k ohm load; Output Impedance: 10 k ohm
• Audio Output Jacks HIGH: Connector: XLR; Maximum Output Level: +4 dBu@ 1 k ohm load; Output Impedance: 330 ohm
• Headphones Jack: Connector: 6.3 mm stereo phone jack; Maximum Output: Level 50 mW + 50 mW@ 33 ohm load; Output Impedance 10 ohm (Controllable by volume knob)
• External Audio Input (Ext Audio Input) Jack: Connector 6.3 mm monaural phone jack; Maximum Input Level: -10 dBu; Input Impedance: 22 k ohm
• MIDI Connector IN
• USB Connector: Type B
• CV IN/OUT Jacks: Keyboard CV (IN/OUT): 1 V/oct.; Connector: 3.5 mm monaural phone jack
• GATE IN/OUT Jacks: GATE IN: +3 V (minimum); GATE OUT: +10 V, key down; 0 V all keys up; Connector 3.5 mm monaural phone jack
• TRIG IN/OUT Jacks: TRIG IN: +3 V pulse min., 10 μsec. Duration minimum; TRIG OUT: +10 V pulse on key depression, 10 μsec. Duration; Connector: 3.5 mm monaural phone jack
• Power Supply: AC adapter jack (DC 9V)
• Power Consumption: 6.5 W
• Dimensions: 496 x 265 x 89 mm / 19.53” x 10.43” x 3.50”
• Weight: 3.7 kg / 8.16 lbs
• Design Variations: Black and Orange (ARP ODYSSEY Module Rev3)
• Included Items: AC adapter, phone cable, mini-phone cable

Specs:

• Color: Black
• USB-MIDI: USB and MIDI
• MIDI Inputs: 1 Port
• MIDI Outputs: 0 Ports
• Type of sound generation: Analogue
• Type: Synthesizer
• Theme: Recording and Studio
