Audac EPA 252 2-Kanal-Endstufe

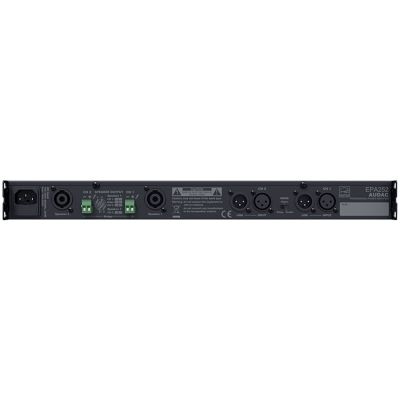

The power-saving Audac EPA 252 stereo power amplifier automatically goes into standby mode as soon as no audio signal is present. Their power consumption is less than 1 watt.The low weight and compact dimensions make the 1U rack device the ideal solution for mobile applications and fixed installations, and the Class D technology ensures excellent efficiency and outstanding sound quality. In addition, the completely passively cooled design ensures maximum Reliability with minimal maintenance. Thanks to various special functions and advanced protection circuits, the output stage is optimally protected against DC faults. (DC), short circuit, overheating and overload. The inputs are designed as balanced XLR connectors, and XLR outputs are also available for loop through of the signal (link-through function). The loudspeakers are connected via terminal strips.

Features:

• Energy Star certified
• Energy-saving standby mode
• Lightweight, compact Class-D amplifier
• convection cooling
• Modern protection circuits

Technical data:

• Product type: Output stages
• Type: Installation output stages
• Output power (1 kHz @ 4 Ohm): 2 x 250 W
• Output power (1 kHz @ 8 Ohm): 2 x 130 W
• Output power (1 kHz @ 8 Ohm, bridge mode): 500 W
• Frequency response: 20 20,000 Hz
• Distortion factor (THD): < 0.1 %
• Signal / Noise Ratio: <90 dB
• width: 482 mm
• height: 44 mm
• Depth: 330 mm
• weight: 4,77 kg

Specs:

• Color: Black
• Set Offer: no
• Channels: 2
• Fanless: yes
• Bridge operation: yes
• Output power into 4 ohms: 250 W
• Output power into 8 ohms: 130 W
• digital power amplifier: yes
• Type: Amps
• Theme: Recording and Studio
