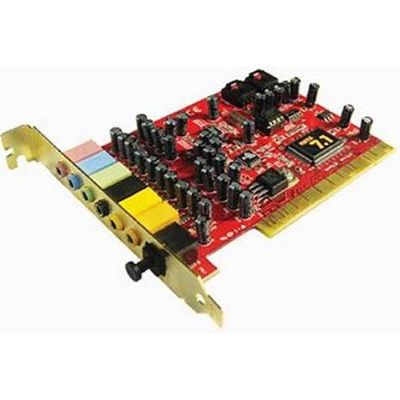

Audiotrak Maya EX 7.1 PCI Gold

Enter a new world of home theater entertainment with the MAYA 7.1 surround sound audio card.

MAYA 7.1 provides two high-fidelity analog inputs and eight discrete analog multi-channel outputs for Dolby Digital 5.1, EX, and DTS 5.1, ES for true surround sound and virtual surround sound for 5.1, 6.1 and 7.1 speaker configurations. When watching a DVD movie, MAYA 7.1 can supply a multi-channel surround sound environment with a digital audio connection to a home theater system or from the multiple analog audio outputs and a surround speaker system, resulting in audio reproduction the way the movie was originally intended.



For serious gamers, MAYA 7.1 offers the Sensaura 3D sound engine which supports of all the major game sound formats including DirectSound 3D, A3D 1.0, EAX 1.0, EAX 2.0, Macro FX, Environment FX, Multi Drive, Zoom FX, I3DL2, and more! Sounds will come from every corner of the room with this enveloping audio technology.

Listening to and composing music will never be the same. With MAYA 7.1¡¯s optical S/PDIF output, 48kHz digital audio data is sent directly to external devices such as MiniDiscs. You can even listen to MP3s and other stereo music in a 7.1 channel, virtual surround sound environment using the included player software.

Compatibility isn't an issue since MAYA 7.1's WDM driver supports all versions of Windows including 98SE, ME, 2000, and XP, ensuring the same functionality under all operating systems. MAYA

7.1 is the ideal solution for transforming your computer into a complete, multi-channel Desktop Home Theater (DTHT) system.



MAYA 7.1 Features



Listen to 7.1 Channel Surround Sound on Your PC

Plug In with Analog Inputs (2) and Outputs (8) plus an Optical Digital Output

Play DVDs, CDs, and MP3s in 7.1 Surround Sound with Included Software

Emulate Multi-Channel Surround Sound with SRS TruSurround XT with Enhanced Bass and Dialog Clarity

Independent Surround Sound Channel Volume Control

Optical Digital Output for MiniDisc Recorders and Portable Digital Devices

Pass Pure Audio Signals to Dolby Digital and DTS Decoders

Support Game Surround Sound APIs such as EAX 2.0 and A3D

GSIF, ASIO2.0, and DirectWIRE2.0 support





What you can do with MAYA 7.1



Play up to 7.1 channels of surround sound via multiple digital and analog audio outputs with the included software DVD player

Listen to two-channel MP3 music or movies in a virtual surround sound environment with SRS TruSurround XT featuring Dialog Clarity and TruBass

Send digital audio via the optical output to a CD recorder or MiniDisc recorder

Experience games in realistic surround sound with the Sensaura 3D sound and reverb engine

Perform simultaneous full duplex recording and playback of your own music compositions



Specification



- Input Type: Analog 2 Input - Line In (3.5mm Jack), Microphone In (3.5mm Jack), Aux In, CD In

- Output Type: Analog 8 Output (3.5mm Jack), SPDIF Out (TOSLINK)

- Input Level: -10 dBV Unbalanced, -10 dBV Nominal, +9dBV Max

- Output Level: -10 dBV Unbalanced, -10 dBV Nominal, 0dBV Max

- Input Impedance: Microphone in 47K ohm, Line in 10K ohm

- Output Impedance: 100 ohm

- Input Record Gain: Analog 0 dB ~ 22.5 dB, 1.5 dB Step Size

- Input Monitor Gain: Analog -34.5 dB ~ 12dB, 1.5 dB Step Size

- Output Attenuation: Analog -46.5 dB ~ 0 dB, 1.5 dB Step Size

- Sample Rate: 48 KHz

A/D Spec

1) Resolution: 18 bits

2) Dynamic Range (S/N): 86 dB A-Weighted (Typical)

3) Frequency Response: 20 Hz~ 20 KHz

D/A Spec

1) Resolution: 18 Bits

2) Dynamic Range (S/N): 96dB A-Weighted (Typical-1,2CH), 88 dB A-Weighted (Typical-3,4,5,6,7,8CH)

3) Frequency Response: 20 Hz ~ 20 KHz

Digital Out Spec

1) Type: Optical connector (TOS-LINK)

2) Format: IEC-958 Consumer, S/PDIF

3) Sample Rate: 48 KHz

4) Resolution: 16 Bits

MIC PreAmp Spec

1) Microphone IC Input Gain: +20 dB Fix and +20 dB on/off and -34.5 dB ~ 12 dB Variable

2) Phantom Power: +4V Phantom Power, Multimedia Microphone support



Included WinDVD Player Provides:



SRS TruSurround XT

  SRS TruSurround XT processes any multichannel audio source, as is usually found on DVDs, and transforms the material into virtual surround sound from just   two speakers or headphones.

SRS Dialog Clarity

  SRS Dialog Clarity provides you with the power to bring crisp, clear dialog from your playback material.

SRS TruBass

  SRS TruBass enhances the bass impact when you have small speakers.

Dolby Digital Decoder

  Delivering incredible sound with 5.1 channel systems, advanced audio processing also provides optimum sound with 4-channel gaming speakers and 3D   enhancements for 2-channel systems.

Dolby Digital EX

  Dolby Digital EX allows you to enjoy the highest quality audio by expanding 5.1 channel sources up to 7 channel speaker systems.

ICE (up to 7.1)

  ICE takes 2 channel audio (stereo) such as an MP3 file and transforms it into 5.1 to 7.1 channel surround sound.



Minimum System Requirements



Intel Pentium II 350 MHz CPU or equivalent AMD CPU

Motherboard with Intel/VIA

64MB of RAM

One available PCI slot

Microsoft Windows 98SE/ME/2000/XP operating system
