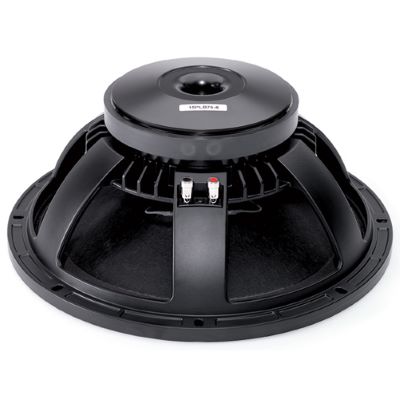

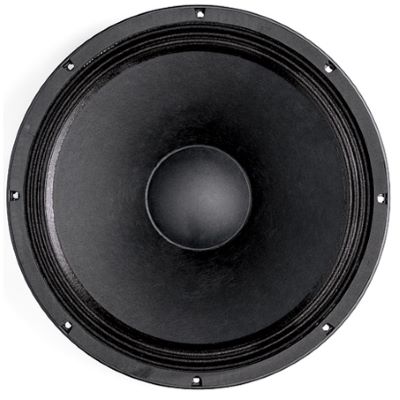

B&C 15 PLB 76 8 Ohm 159198
We are no longer offering this product.
You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.
- more of B&C
B&C 15 PLB 76 8 Ohm 159198 Product Details
Technische Daten:
- Nominal Diameter: 380 mm (15 in)
- Nominal Impedance: 8 ohm
- Minimum Impedance: 6.2 ohm
- Nominal Power Handling (AES): 400 W
- Continuous Power Handling: 800 W
- Sensitivity (1W/1m): 100 dB
- Frequency Range: 40 - 2000 Hz
- Voice Coil Diameter: 76 mm (3 in)
- Winding Material: Copper
- Former Material: Glass Fibre
- Magnet Material: Ceramic Ring
- Winding Depth: 16 mm (0.62 in)
- Magnetic Gap Depth: 10.5 mm (0.4 in)
- Flux Density: 1.15 T
- Overall Diameter: 393 mm (15.5 in)
- Bolt Circle Diameter: 374 mm (14.7 in)
- Baffle Cutout Diameter: 354 mm (13.9 in)
- Depth: 169 mm (6.65 in)
- Flange and Gasket Thickness: 16 mm (0.62 in)
- Net Weight: 8.5 kg (18.7 lb)
- Shipping Weight: 10.2 kg (22.4 lb)
- Shipping Box: 420x420x200 mm (16.5x16.5x7.9 in)
