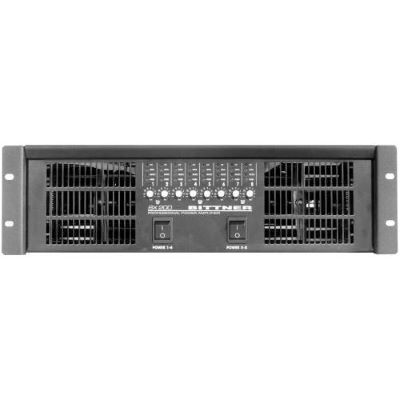

Bittner 8 X400 Product Details
8X Series
Setting the Standard
Customer wishes and requirements are the only standard for Bittner. It is our pride to realise them in the most innovative way imaginable.
Confidence is good - two separate power supplies are better. And wear-free digital potentiometers, an integrated Noise Gate per channel, sequential remote power on, alive contacts for every channel pair, computer control - how much intelligent power fits into such a compact design?
8X - that’s multiple reliability. For the highest demands in sound and flexibility.
To handle a complete installation with only one dense power package - well, that’s what we call a standard.
Up to 8x 400 W @ 4 W in only 2 RU
4 separate stereo amplifiers

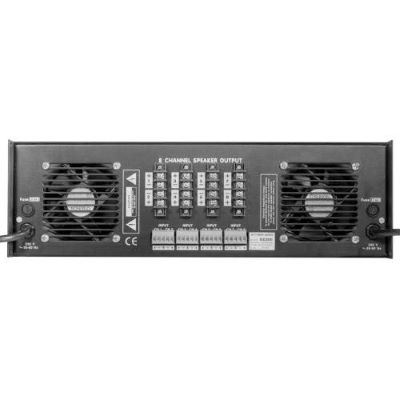

Ideal for fixed installations: Controls from the back panel only
High Tech SMT Design
Protection Circuits: DC, LF, HF, Thermal, Short Circuit, Current Limiter, 3 ms Muting Delay
All inputs and outputs pluggable with PHOENIX connectors
2 High-End toroidal transformers
2 seperate power supplies
LED indicators for SIGNAL, CLIP, PROTECT, POWER, GNDFAULT
Temperature controlled, variable speed low noise fans
Softstart
Sequential Remote Power On
4 Alive Contacts
Digital wear-free Volume Controls (can be operated manually)
SXL Dataport
Noise Gate (switchable)
3 Years Warranty
8XT - The Ideal Pair!
Simply connect an 8X amplifier to an 8XT multi-channel output transformer with a standard VGA HD-15 cable and you’ll be ready to meet the stringent European norms and standards.
8X Series - Intelligent Power
8X 100: 8x 100 W @ 4 Ohm
8X 200: 8x 200 W @ 4 Ohm
8X 400: 8x 400 W @ 4 Ohm
Class: AB
Frequency Response:
20 Hz - 20 kHz (0 / -0.3 dB)
THD: < 0.02%
Signal-to-Noise Ratio: < -101 dB
Channel Seperation: > 85 dB
Input Sensitivity: +6 dBu
Input Clipping: 22 dBu
Input Impedance: 20 kOhm
Damping Factor: 400 @ 4 Ohm
Cooling: 2 to 4 Fans
(temp. reg. variable speed)
Weight: 18 to 22 kg
(40 to 49 lbs)
Dimensions: 2 RU / 483 x 88 x 454 mm
(19" x 3.5" x 17.9")
