BMS 4592 NEODYMIUM 2 Zoll TREIBER 16 OHM
We are no longer offering this product.
You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.
- more of BMS
BMS 4592 NEODYMIUM 2 Zoll TREIBER 16 OHM Product Details

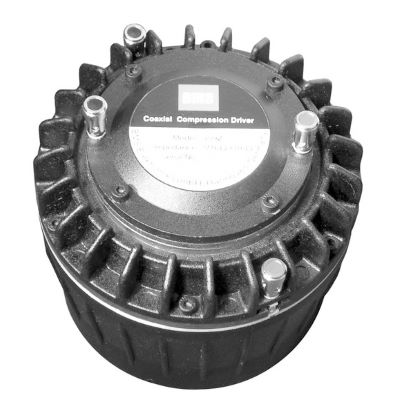

BMS 4592 NEODYMIUM 2"DRIVER 16 OHM
Extended bandwidth (300 - 22.000 Hz)
High efficiency
With two subsystems in one, each driver covers a smaller frequency range for increased power handling, high dynamic and extremely low distortion
Excellent phase coherence
Point source sound reproduction
Perfect time alignment without the problems of multi-source interference
Magnetically shielded
Ultra lightweight and small size
In a conventional full range compression driver the phase plug must be located extremely close to the diaphragm, excursion of the diaphragm is limited and middle frequency performance is compromised.
A typical 2" dome compression driver has a limited high frequency response. Over 8 kHz the dome diaphragm breaks up causing resonance and harsh, metallic sound.
The patented design of the BMS 4592 ND is a result of extensive dedicated research and development providing dramatic improvement in dynamic response, clarity and transparency.
The BMS annular midrange diaphragm covers the frequency range between 400 and 7.000 Hz with a smooth, linear response. The large diaphragm excursion of max. +/-0,8 mm results in high output and increased power handling up to 1.300 W peak.
The ultra light annular diaphragm for the high range offers exceptional transient response with very high efficiency from 6 to 22 kHz.
Specifications 4592 ND
Throat diameter 2" (50,8 mm)
Nominal impedance 8 or 16 Ohm
Power capacity
Middle range (AES) 150 W above 400 Hz
peak 1.000 W above 500 Hz
High range (AES) 80 W
peak 320 W
Sensitivity 118 dB on 2242 Horn
Frequency range 200 - 22.000 Hz
Recommended crossover 300 Hz
Middle frequency range 300 - 7.000 Hz
High frequency range 6.000 - 22.000 Hz
Middle/High crossover 6.300 Hz
Voice coil high-range 1,75" (44,4 mm)
Voice coil mid-range 3,5 " (90 mm)
Magnet material Neodymium
Flux density high-range 2,0 T
Flux density mid-range 1,95 T
Efficiency 35% (300 - 5.000 Hz)
Voice coil material Cooper Clad Aluminium (2 layers inside and outside of the VC)
Voice coil former Kapton
Diaphragm material Polyester
Mounting information
Overall Diameter 132 mm (+ 3 mm)
Depth 113 mm
Net weight 2,3 kg
Four M6 holes, 90° on 101,6 mm, 4" diameter
Extended bandwidth (300 - 22.000 Hz)
High efficiency
With two subsystems in one, each driver covers a smaller frequency range for increased power handling, high dynamic and extremely low distortion
Excellent phase coherence
Point source sound reproduction
Perfect time alignment without the problems of multi-source interference
Magnetically shielded
Ultra lightweight and small size
In a conventional full range compression driver the phase plug must be located extremely close to the diaphragm, excursion of the diaphragm is limited and middle frequency performance is compromised.
A typical 2" dome compression driver has a limited high frequency response. Over 8 kHz the dome diaphragm breaks up causing resonance and harsh, metallic sound.
The patented design of the BMS 4592 ND is a result of extensive dedicated research and development providing dramatic improvement in dynamic response, clarity and transparency.
The BMS annular midrange diaphragm covers the frequency range between 400 and 7.000 Hz with a smooth, linear response. The large diaphragm excursion of max. +/-0,8 mm results in high output and increased power handling up to 1.300 W peak.
The ultra light annular diaphragm for the high range offers exceptional transient response with very high efficiency from 6 to 22 kHz.
Specifications 4592 ND
Throat diameter 2" (50,8 mm)
Nominal impedance 8 or 16 Ohm
Power capacity
Middle range (AES) 150 W above 400 Hz
peak 1.000 W above 500 Hz
High range (AES) 80 W
peak 320 W
Sensitivity 118 dB on 2242 Horn
Frequency range 200 - 22.000 Hz
Recommended crossover 300 Hz
Middle frequency range 300 - 7.000 Hz
High frequency range 6.000 - 22.000 Hz
Middle/High crossover 6.300 Hz
Voice coil high-range 1,75" (44,4 mm)
Voice coil mid-range 3,5 " (90 mm)
Magnet material Neodymium
Flux density high-range 2,0 T
Flux density mid-range 1,95 T
Efficiency 35% (300 - 5.000 Hz)
Voice coil material Cooper Clad Aluminium (2 layers inside and outside of the VC)
Voice coil former Kapton
Diaphragm material Polyester
Mounting information
Overall Diameter 132 mm (+ 3 mm)
Depth 113 mm
Net weight 2,3 kg
Four M6 holes, 90° on 101,6 mm, 4" diameter
