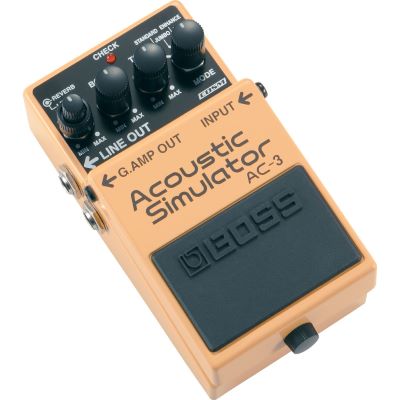

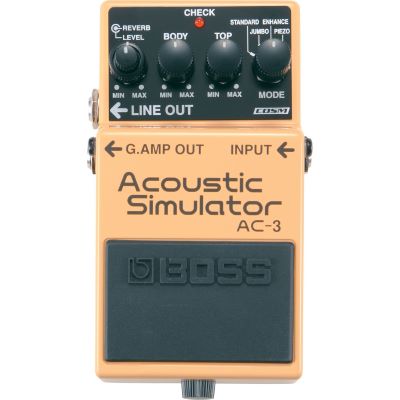

Boss AC-3 Acoustic Simulator

Advanced Electric-To-Acoustic Guitar Modeling

BOSS is pleased to offer another “Authentic BOSS” Compact Pedal; the AC-3. How many times have you been onstage or in the studio with your electric guitar, and wished that you’d brought an acoustic along? For musicians who travel light, hauling an extra guitar to the gig isn’t always the most attractive option. BOSS AC-3 to the rescue! This new-generation compact pedal employs COSM modeling technology to transform any electric guitar into a variety of beautiful acoustic guitars.

Features:

• BOSS’s most advanced acoustic-guitar modeling in a compact pedal
• Four simulation modes: Standard, Jumbo, Enhanced, and Piezo-equipped
• Top and Body knobs for fine-tuning the virtual-body resonance
• Built-in reverb, optimized for acoustic-guitar simulation

Technische Daten:

• Nominal Input Level. -20 dBu
• Input Impedance: 1 M ohms
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohms
• Recommended Load Impedance: 10 k ohms or greater
• Controls: Pedal Switch, MODE Switch, BODY Knob, TOP Knob, LEVEL Knob, REVERB Knob
• Indicator: CHECK Indicator (Serves also as battery check indicator)
• Connectors: INPUT Jack, G.OUT Jack, LINE OUT Jack, AC Adaptor Jack (DC 9 V)
• Power Supply: DC 9 V: Dry Battery (6F22/ 9 V), AC Adaptor (PSA Series: Optional)
• Current Draw: 39 mA (DC 9 V)
• Accessories: Owner's Manual, Dry Battery; 6F22/ 9 V (Carbon), Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
• Options: AC Adaptor PSA-Series
• Size (WxDxH): 2-13/16 inches x  4-15/16 inches x 2-3/16 inches
• Weight: 1 lbs.


Specs:

• Color: Yellow
• Effect Type: Modeling
• Type: digital Effects Processor
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (999.42 KB)
