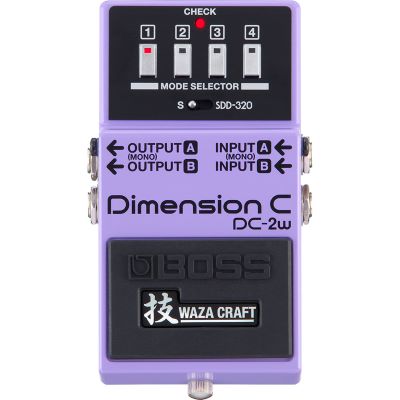

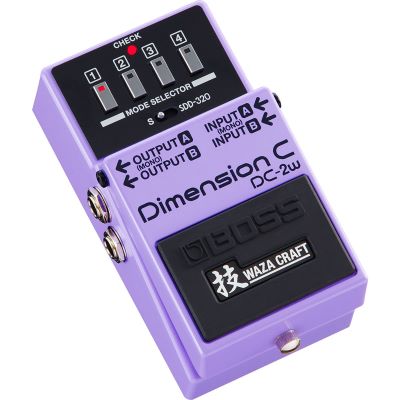

Boss DC-2W Dimension C Waza Craft

The Boss DC-2W Dimension C Waza Craft is a premium Waza Craft pedal with full analog circuitry. The Dimension's unique and sophisticated circuit design, however, subtly expands the width and depth of the source material without the modulations audibly coming to the fore. The result sounds more open and naturally enriches any instrument or mix.

Features:

• Premium Waza Craft pedal with all-analog audio circuitry
• Standard mode provides the sound of the original DC-2 Dimension C pedal
• SDD-320 mode authentically reproduces the vintage Roland SDD-320 Dimension D, a legendary studio rack effect heard on countless hit records
• Iconic four-button preset interface, updated with reliable electronic switches and LED status indicators
• Four main sounds in each mode, plus six variations by pressing two switches together (20 total sounds available)
• Premium buffer and enhanced bypass circuitry
• Versatile I/O for integrating with any mono or stereo application, from guitar and bass pedalboards to keyboards and studio mixing

Technical Specificatons:

• Modes: S (Standard); SDD-320
• Nominal Input Level: -20 dBu
• Input Impedance: 2.2 M ohms
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls: Pedal switch; S/SDD-320 switch; Mode selector [1]--[4] buttons
• Indicators: Check indicator (Serves also as battery check indicator); Mode selector [1]--[4] indicators

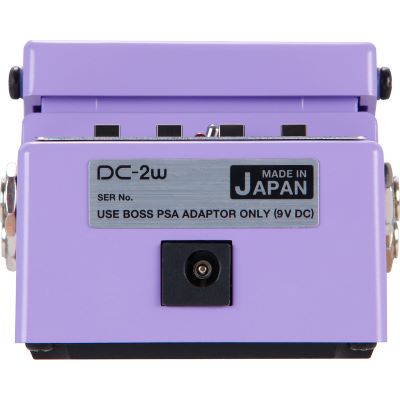

• Connectors: Input A (mono) jack: 1/4-inch phone type; Input B jack: 1/4-inch phone type; Output A (mono) jack: 1/4-inch phone type; Output B jack: 1/4-inch phone type; DC IN jack
• Power Supply: Alkaline battery (9 V, 6LR61); AC adaptor (PSA series: sold separately)
• Current Draw: 65 mA
• Expected battery life under continuous use: Alkaline: Approx. 6 hours
• Accessories: Owner's manual; Leaflet ("Using the unit safely" "Important notes" and "Information"); Alkaline battery (9 V, 6LR61)
• Options (sold separately): AC adaptor: PSA series

Specs:

• Color: Purple
• Effect Type: Misc.
• Type: digital Effects Processor
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (492.38 KB)
