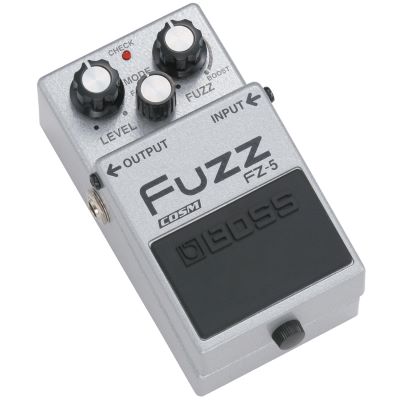

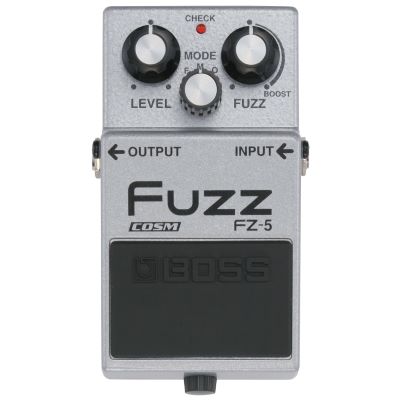

Boss FZ-5 Fuzz

A Distorted Blast from the Past

The FZ-5 is a modern pedal built for the modern guitarist, but the sounds you can get from the FZ-5 are pure retro. Looking back at the glorious rock sounds of the ’60s and ’70s, the FZ-5 recreates its vintage fuzz through BOSS state-of-the-art COSM technology. Recall the fuzz-filled flavors of classic pedals, such as the Maestro FZ-1A, Fuzz Face and Octavia pedals, and kick ’em into overdrive with the FZ-5’s Boost knob. BOSS’ proprietary COSM technology allows guitar players to recreate classic fuzz BOOST control for more aggressive tone. The FZ-5 is the perfect weapon for players wanting to beef up their rigs with classic retro fuzz artillery.

Features:

• Vintage sounds inspired by famous fuzz pedals of the ’60s and ’70s
• Uses advanced COSM technology to recreate classic fuzz
• BOOST control for more aggressive tone
• Road-tough BOSS metal construction

Specs:

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Controls: Pedal switch, LEVEL knob, FUZZ knob, MODE knob
• Indicator: CHECK indicator (Serves also as battery check indicator)
• Connectors: INPUT jack, OUTPUT jack, AC adaptor jack (DC 9 V)
• Power Supply: DC 9 V, Dry battery 6F22 (9 V) type (carbon), Dry battery 6LR61 (9 V) type (alkaline), AC Adaptor (PSA series: optional)
• Current Draw: 36 mA (DC 9 V), Expected battery life under continuous use
• Carbon: 3 hours, Alkaline: 10 hours * These figures will vary depending on the actual conditions of use.
• Accessories: Owner's Manual, Leaflet (USING THE UNIT SAFELY, IMPORTANT NOTES, and Information), MODE sticker, Dry Battery 006P/9V (6LR61)
• Options: AC Adaptor (PSA series)
• Size (WxDxH): 2-7/8 inches x 5-1/8 inches x 2-3/8 inches
• Weight: 1 lbs.


Specs:

• Color: Silver
• Effect Type: Fuzz
• Type: digital Effects Processor
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (252.23 KB)
